Combination multi-component leak detector, sf6 leak,so2 leak,ch4 leak,co2 leak

Large Image : Combination multi-component leak detector, sf6 leak,so2 leak,ch4 leak,co2 leak

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-01-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$3000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	,T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Power Supply:	AC 220V/50Hz ，6000 MAh Rechargeable Lithium Battery	Weight:	0.5kg
Storage Temperature:	-20℃~60℃	Sensitivity:	0.1ppm
Response Time:	Instantaneous	Operating Temperature:	-10℃~50℃
Accuracy:	±2%FS	H2S:	0-50/100/200/1000/5000ppm
NO2:	0-20/500ppm	CH2O:	0-10/50/1000ppm
Highlight:	4 Gas SF6 Leak Detector , ODM SF6 Leak Detector , ODM dilo sf6 leak pointer

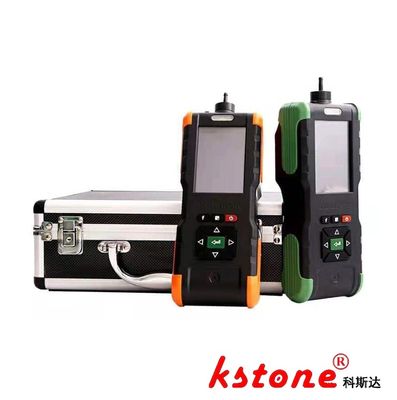

Multi-component Infrared Handheld Gas Tester | 4-Gas Detection, Adjustable Pump, IP65 Rating LF-01-FR

I. Product Features

Fast and Precise Infrared Detection
Equipped with an NDIR (Non-Dispersive Infrared) sensor, the instrument efficiently filters impurities like oil, water, and dust, ensuring high-precision measurements for infrared-sensitive gases.
User-Friendly Design
- 3.5-inch HD color screen for intuitive data visualization.
- Pure hardware one-key power on/off to reduce power consumption.
- Optional long-handle suction probe tube for hard-to-reach areas.
- Includes a leather shoulder bag for portable use.
Comprehensive Functions
- Simultaneous display of real-time data and concentration curves.
- Adjustable high/low speed air pump for flexible sampling.
- Supports simultaneous detection of up to 4 infrared-sensitive gases (optional).
- Optional external Bluetooth printer for mobile data printing.
- Multiple gas unit conversion (automated system calculation), Chinese/English display switching.
- Large-capacity data storage (customizable) with Micro-USB and Android cable connectivity for data transfer.
- Suitable for high-temperature, high-humidity, and high-dust environments with a sampling probe gun.

II. Technical Parameters

General Specifications:

Dimensions: (H x W x D) 231×86×52mm
Weight: ~500g
Pump Flow Rate: 0–500 cc/Min (adjustable)
Display: 3.5-inch color screen (480×320 resolution)
Display Content: Gas formula, measured value, unit, concentration curve, battery status, time, alarm/fault info
Alarms: Buzzer, red indicator light, LCD prompt, low battery alarm
Data Storage: 8G SD card (standard), optional 16G/32G; customizable recording interval
Communication: USB connection for TXT data download
Printing: Optional external Bluetooth printer
Power: 6000 mAh rechargeable lithium battery (Micro-USB 5V/2A charger)
Environment:
- Humidity: 0–95%RH (non-condensing; optional filter for high humidity)
- Temperature: -20℃~50℃ (up to 1200℃ with flue gas probe gun)
Certifications: Ex ia IIC T4 (explosion-proof), IP65 (protection level)

III. Application Scenarios

Petroleum, petrochemical, metallurgy, chemical industry, fire protection, gas industry, environmental protection, power, telecommunications, papermaking, printing and dyeing, sewage treatment, food brewing, scientific research, education, national defense.

IV. Instrument Configuration

Standard: Detector main unit, operation manual, detection report, certificate of conformity.
Optional Accessories: Standard gas, sampling probe tube, external Bluetooth printer, etc.

Combination multi-component leak detector, sf6 leak,so2 leak,ch4 leak,co2 leak 0

V. Sensor Specifications (Infrared Principle)

Measured Gas	Measuring Range (Optional)	Sensor Type
Sulfur Hexafluoride (SF6)	0–1000/2000ppm	NDIR
Carbon Dioxide (CO2)	0–2000/5000/1%/5%/20%/50%/100%VOL	NDIR
Methane (CH4)	0–5%/10%/20%/50%/100%VOL	NDIR

others

Measured Gas	Measuring Range (Optional)	传感器原理
六氟化硫(SF6)	0-1000/2000ppm	红外原理(NDIR)
一氧化碳 CO	0-200/1000ppm	电化学(electrochemistry)
CO(带H2补偿)	0-200/1000ppm	电化学(electrochemistry)
硫化氢 H2S	0-50/100/200/1000/5000ppm	电化学(electrochemistry
氧气 O2	0-25%vol	电化学(electrochemistry
二氧化氮NO2	0-20/500ppm	电化学(electrochemistry
一氧化氮 NO	0-100/1000ppm	电化学(electrochemistry
二氧化硫 SO2	0-20/100/2000ppm	电化学(electrochemistry
氯气 CL2	0-20/200/2000ppm	电化学(electrochemistry
氨气 NH3	0-100/1000/5000ppm	电化学(electrochemistry
氢气 H2	0-1000/10000/40000ppm	电化学(electrochemistry
H2(带CO补偿)	0-1000ppm	电化学(electrochemistry
磷化氢 PH3	0-5/20/1000ppm	电化学(electrochemistry
甲醛 CH2O	0-10/50/1000ppm	电化学(electrochemistry
臭氧 O3	0-5/20/100/1000ppm	电化学(electrochemistry
氟气 F2	0-1ppm	电化学(electrochemistry
氟化氢 HF	0-10ppm	电化学(electrochemistry
氯化氢 HCL	0-20/200/1000ppm	电化学(electrochemistry
环氧乙烷 ETO	0-20/100ppm	电化学(electrochemistry
硅烷SIH4	0-50ppm	电化学(electrochemistry
二氧化氯 CLO2	0-20/200/2000ppm	电化学(electrochemistry
氢化氰 HCN	0-100 ppm	电化学(electrochemistry
乙烯C2H4	0-10/200/1500 ppm	电化学(electrochemistry
过氧化氢H2O2	0-100/500/2000 ppm	电化学(electrochemistry
可燃气体EX	0-100%LEL	催化燃烧(catalytic combustion)
四氢噻吩 C4H8S	0-50mg/m3	电化学(electrochemistry
二氧化碳 CO2	0-2000/5000/1%/5%/20%/50%/100%VOL	红外(NDIR)
六氟化硫 SF6	0-1000/2000ppm	红外(NDIR)
甲烷 CH4	0-5%/10%/20%/50%/100%VOL	红外(NDIR)
有机挥发物 VOC	0-20/200/2000/10000 ppm	PID光离
