CH Refrigerant Sf6 Sniffer Leak Detector NDIR Sensor For CO₂ NH₃

Large Image : CH Refrigerant Sf6 Sniffer Leak Detector NDIR Sensor For CO₂ NH₃

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS-GB250

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Storage Temperature:	-20°C To 60°C	Power Supply:	Rechargeable Battery
Dimensions:	10.2 X 8.2 X 4.5 In (25.9 X 20.8 X 11.4 Cm)	Detection Principle:	Infrared Spectroscopy
Response Time:	Instantaneous	Operating Temperature:	-20°C To 50°C
Measurement Range:	0-1000ppm	Accuracy:	±5% Of Reading
Warranty:	2 Years	Weight:	2.9 Lbs (1.3 Kg)
Display:	Digital LCD	Sensitivity:	0.1ppm
Highlight:	NH₃ sf6 sniffer leak detector , NDIR sf6 sniffer leak detector , NDIR refrigerant leak detector

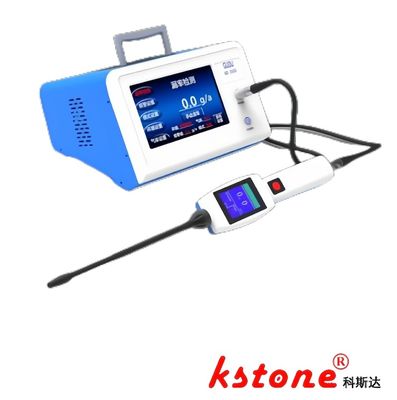

KS-GB250 CH Refrigerant Leak Detector | NDIR Sensor, 0.1ppm Sensitivity for CO₂/NH₃/SF6

Engineered for versatile refrigerant leak detection, the KS-GB250 utilizes a non-dispersive infrared (NDIR) sensor, delivering robust anti-interference performance for precise measurements of SF6, R22, R410, R600, CO₂, NH₃, and 13+ additional gases. Its embedded computer system ensures operational stability, while the sensor’s automatic calibration feature minimizes maintenance needs. The detector boasts an intuitive touch interface, real-time digital readouts, and dual alarm systems with audible alerts and color-changing visual indicators.

Key Features

Multi-Gas Versatility:Supports four sensor types (LS-1 to LS-4) for detecting over 13 refrigerants, catering to diverse industrial applications.
Intelligent Calibration:Embedded auto-calibration system maintains long-term accuracy without manual intervention.
User-Centric Design:Touchscreen interface with real-time flowmeter monitoring and customizable alarm thresholds for intuitive operation.
Comprehensive Data Management:Stores timestamped measurement records, enabling direct printing or USB/RJ45 export for efficient reporting.

Technical Parameters

Parameter	Details
Detection Principle	NDIR (Non-Dispersive Infrared) Sensor
Sensitivity	0.1ppm (Gas Concentration) / 0.1g/a (Annual Leakage Rate)
Measurement Range	0–100g/a (Annual Rate) / 0–1000ppm (Concentration)
Response Time	<1 Second
Preheating Time	2 Minutes
Repeatability	±1%
Detectable Gases	- LS-1: SF6, R22, R134a, R404, R407, R410, Hp-1, R1233ZD - LS-2: R600, R290 - LS-3: NH₃ - LS-4: CO₂
Display Units	g/a, mL/s, Pam³/s, ppm
Alarm System	Audible Alert with Color-Changing Numerical Display
Data Output	RJ45, Printer, USB
Operating Environment	Temperature: -20°C–50°C Humidity: ≤90% RH (Non-Condensing)
Power Supply	AC85–240V, 50/60Hz
Dimensions & Weight	280×260×180mm (L×W×H), ~2.5kg

Tag:

Contact Person: Ms. Jin

Tel: 15000093078
