3-Channel, 300l/S Vacuum Unit, Vacuum Pumping And Inflation, DN20 Pipeline [KSCZ-1080/300]

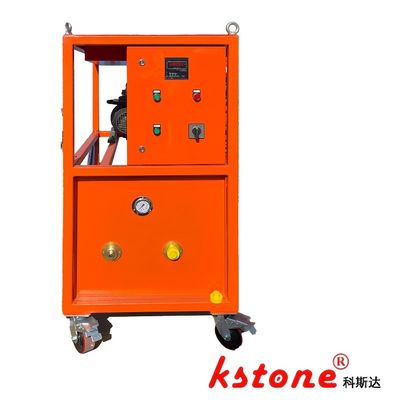

Large Image : 3-Channel, 300l/S Vacuum Unit, Vacuum Pumping And Inflation, DN20 Pipeline [KSCZ-1080/300]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-1080/300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25000-$30000
Packaging Details:	Wooden Box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Pump Configuration:	1080 M³/h Roots Pump + 300 M³/h Front - End Pump	Anti - Backflow Protection:	Yes, With Oil - Based Design
Valve Ports:	2 × M27 Threads For Multi - Channel Connection	Ultimate Vacuum:	6×10⁻² Pa
Power Supply:	380V AC, 50Hz	Standard Accessories:	3 × 10m DN20 Pipelines (M36 Threads)
Pump Brand Options:	Leybold, Busch, Or Made - In - China Models	Pipeline Customization:	Quantity And Length Adjustable
Highlight:	ODM sf6 filling device , Busch sf6 filling device , Busch mobile vacuum pump

Large vacuum unit, ultimate vacuum, multi-channel vacuum pumping, Leybold, Busch KSCZ-1080/300

This high - performance vacuum system is designed for industrial applications requiring deep vacuum conditions. The KSCZ - 1080/300 unit integrates a 1080 m³/h Roots pump and a 300 m³/h front - end pump, equipped with anti - backflow oil protection to prevent contamination. Featuring two M27 valve ports for multi - channel pumping, the system achieves an ultimate vacuum of 6×10⁻² Pa. It operates on a 380V AC 50Hz power supply and includes three 10m DN20 pipelines (M36 threads) as standard accessories. Customers can choose vacuum pumps from renowned brands like Leybold, Busch, or opt for domestic Chinese models. Both the quantity and length of pipelines are customizable to suit specific project requirements.

Technical Parameter Table

Parameter	Description
Model	KSCZ - 1080/300
Pump Configuration	1080 m³/h Roots pump + 300 m³/h front - end pump
Anti - Backflow Protection	Yes, with oil - based design
Valve Ports	2 × M27 threads for multi - channel connection
Ultimate Vacuum	6×10⁻² Pa
Power Supply	380V AC, 50Hz
Standard Accessories	3 × 10m DN20 pipelines (M36 threads)
Pump Brand Options	Leybold, Busch, or Made - in - China models
Pipeline Customization	Quantity and length adjustable

3-Channel, 300l/S Vacuum Unit, Vacuum Pumping And Inflation, DN20 Pipeline [KSCZ-1080/300] 0
