Handheld RS485 SF6 Gas Online Ph Monitoring System Anti Interference [KS200]

  • Handheld RS485 SF6 Gas Online Ph Monitoring System Anti Interference [KS200]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS200
Minimum Order Quantity 5
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms ,T/T
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Parameters Humidity, Density And Temperature Of SF6 Gas Dew Point Range -50…+20℃ Td/f
Pressure Range 0…+10 Bar Temperature Range -40…+80℃
Calculated Parameters Parameters Converted To Standard Conditions At 20 °C Micro-water Value 10…20000 Ppm
Pressure Value (density) 1 ...12 Bar Dew Point Accuracy ±3℃ Td
Pressure Value (density) Accuracy ±0.1% FS Temperature Accuracy ±1℃
Highlight

RS485 online ph monitoring system

,

SF6 online ph monitoring system

,

RS485 sf6 gas monitoring system
Leave a Message
Product Description

High Precision SF6 On-line Monitor KS200 - Dew Point, Pressure, Temp, Leak Alarm, RS485, IP65 - For Outdoor Use



Main functions:
(1) On-line monitoring of the humidity, density and temperature of SF6 gas;
(2) On-line monitoring of SF6 leakage and leakage alarm;
(3) The low-pressure alarm and locking device can be automatically started according to the preset value or the value given by the user;
(4) RS-485/CAN bus communication interface is reserved;
(5) Automatically draw the state change trend chart through the background software;
(6) A large-screen liquid crystal display can be selected to display real-time data on site, with screen protection and sound-controlled display functions;
(7) Set the alarm and locking threshold values and the display mode through a handheld remote controller;
(8) It is fully sealed, anti-interference, and suitable for outdoor and low-temperature environments.



Product Features:
(1) High precision and high reliability
The transmitter adopts imported high-stability sensors. The sensors are corrected and compensated by the internal circuit of the transmitter, resulting in good output linearity and high precision. The external structure of the transmitter is also more suitable for measurement in high-frequency electric field environments. It is integrated with the circuit processing part to reduce interference coupling and improve the long-term stability and reliability of the circuit operation.

(2) Realize on-line monitoring and condition-based maintenance

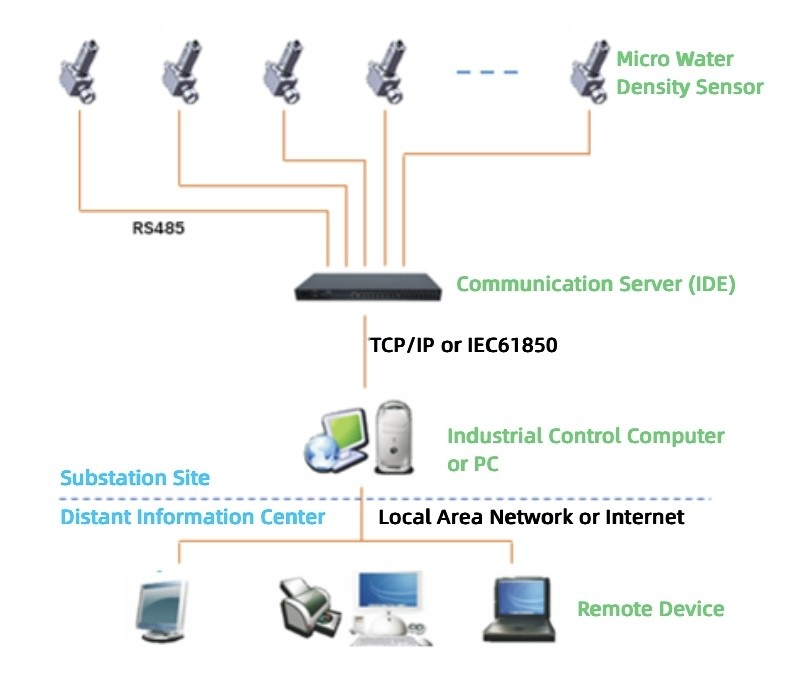

This transmitter can operate continuously for a long time. It is equipped with an RS-485 communication interface, which can upload the monitoring data to the monitoring center in real time. When the measured gas indicators exceed the standard, the monitor will automatically upload alarm or locking signals to the distant monitoring center according to the preset thresholds, or directly activate the alarm and locking devices. The host computer software can sample and store the monitoring data according to the set time and frequency, and automatically draw the above data into a change trend chart as required for observation and analysis.
The application of the comprehensive on-line monitoring technology for SF6 gas can realize the condition monitoring of the circuit breaker, which is conducive to promptly grasping the operation status of the equipment, ensuring the safe and stable operation of the power system, enabling the implementation of condition-based maintenance, reducing maintenance costs and power outage time, and thus improving the management level.


Transmitter Technical Specifications
Measurement Parameters
Dew point range: -50…+20℃ Td/f
Pressure range:  0…+10 bar
Temperature range:  -40…+80℃
Calculated Parameters Parameters converted to standard conditions at 20 °C
Micro-water value:  10…20000 ppm
Pressure value (density): 1 ...12 bar
SF6 mixed density: 0 ...100 kg/m³
Output Parameters:

PPM20 (micro-water at 20℃),

 P20 (pressure and density at 20℃),

T (℃),

Td (dew point),

P (pressure),

Tdatm (atmospheric dew point),

density (kg/m³)
Accuracy
Dew point accuracy: ±3℃ Td
Pressure value (density) accuracy: ±0.1% FS
Temperature accuracy: ±1℃
Sensor Response Time
Dew point sensor: 2S (at 20℃)
Pressure sensor: <0.5S (at 20℃)
Operating Environment
Transmitter operating temperature: -40...+80℃
Overload safety pressure: 20 bar
Relative humidity: 0~100RH%
Measured gas: SF6, SF6/N2 mixed gas
Output
Communication method: RS485
Communication protocol: ModBus RTU
Transmission speed: 9600 bps
General Parameters
Operating voltage: 18…36VDC
Power: <3W
Weight: 361g
Protection level: IP65
Housing material: Stainless steel
Connector material: Stainless steel
Electrical connector: M12 connector
Mechanical interface: M301.5
Sealing method: O-ring (332.5mm)
Absolute air leakage rate: ≤10-9Pa·m3/s (helium detection)
Rated inflation pressure: 0.6MPa abs
