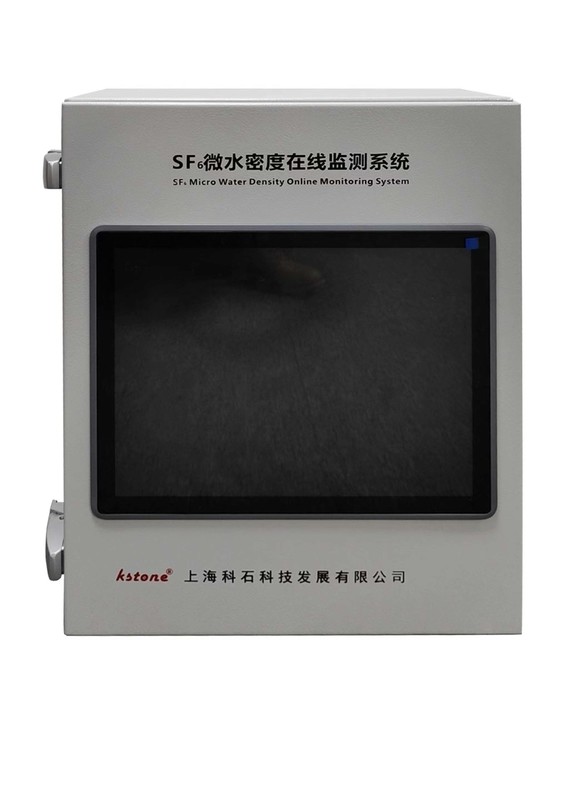

10AH SF6 Gas Online Monitoring System Leak Alarm PTZ Control [KS200]

  • 10AH SF6 Gas Online Monitoring System Leak Alarm PTZ Control [KS200]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS200
Minimum Order Quantity 5
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms ,T/T
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Parameters Humidity, Density And Temperature Of SF6 Gas Dew Point Accuracy ±3℃ Td
Pressure Value (density) Accuracy ±0.1% FS Temperature Accuracy ±1℃
Dew Point Sensor Dew Point Sensor Pressure Sensor <0.5S (at 20℃)
Dew Point Range -50…+20℃ Td/f Pressure Range 0…+10 Bar
Highlight

10AH Online Monitoring System

,

PTZ control Online Monitoring System

,

10AH sf6 gas monitor
Leave a Message
Product Description

10AH SF6 Gas Online Monitoring System Leak Alarm PTZ Control [KS200]

Main Functions

  1. Real-time online monitoring of SF₆ gas humidity, density, and temperature.
  2. Continuous SF₆ leakage detection with automatic alarm activation.
  3. Low-pressure alarm and locking mechanism configurable via preset or user-defined thresholds.
  4. RS-485/CAN bus interfaces for seamless data integration.
  5. Background software for automatic trend chart generation of operational parameters.
  6. Optional large LCD for on-site real-time data display with screen protection and sound-controlled activation.
  7. Handheld remote controller for alarm/locking threshold setup and display mode customization.
  8. Fully sealed, anti-interference design suitable for outdoor and low-temperature environments.

Product Features

1. High Precision & Reliability

  • Imported high-stability sensors with internal circuit correction and compensation ensure linear output and minimal error.
  • Transmitter structure optimized for high-frequency electric field environments, reducing interference and enhancing long-term stability.

2. Intelligent Condition Monitoring

  • 24/7 continuous operation with RS-485 communication for real-time data upload to monitoring centers.
  • Auto-triggered alarm/locking signals when gas parameters exceed thresholds, supporting predictive maintenance.
  • Host software enables scheduled data sampling, storage, and trend chart generation for operational analysis.
  • Enables condition-based maintenance of circuit breakers, reducing downtime and maintenance costs while improving power system reliability.

Technical Specifications

Parameter Category Details
Measurement Ranges - Dew Point: -50°C to +20°C (Td/f)
  - Pressure: 0 to 10 bar
  - Temperature: -40°C to +80°C
Calculated Parameters - Micro-water (20°C): 10 to 20,000 ppm
  - Pressure/Density (20°C): 1 to 12 bar
  - SF₆ Mixed Density: 0 to 100 kg/m³
Output Parameters PPM20, P20, T (°C), Td, P (bar), Tdatm, density (kg/m³)
Accuracy - Dew Point: ±3°C (Td)
  - Pressure/Density: ±0.1% FS
  - Temperature: ±1°C
Response Time (20°C) - Dew Point Sensor: 2s
  - Pressure Sensor: <0.5s
Operating Environment - Temperature: -40°C to +80°C
  - Overload Pressure: 20 bar
  - Humidity: 0–100% RH (non-condensing)
  - Gas Type: SF₆, SF₆/N₂ mixtures
Communication - Protocol: ModBus RTU
  - Speed: 9600 bps
Electrical Specs - Voltage: 18–36VDC
  - Power Consumption: <3W
Mechanical Specs - Weight: 361g
  - Protection Level: IP65
  - Housing/Connector: Stainless steel
  - Interface: M30×1.5 thread, M12 electrical connector
Sealing Performance - Air Leakage Rate: ≤10⁻⁹ Pa·m³/s (helium test)
  - Rated Inflation Pressure: 0.6MPa (absolute)
