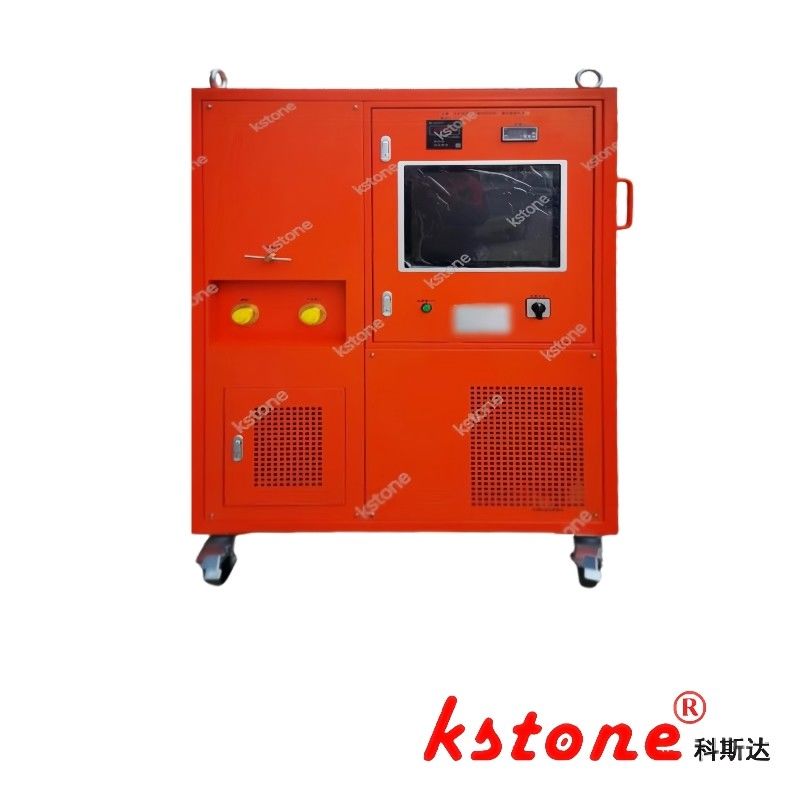

SF6 recovery devices are generally customized products; According to the functional classification, whether it includes the function of recycling, vacuuming, and inflation, there are many configurations based on customer needs, such as whether negative pressure recycling is required, whether an oil-free compressor is used, the speed of the compressor, the size of the liquid storage tank, whether it has a freezing function, whether it has moisture filtration and particle filtration, whether it needs to be fully automatic, etc;Taking KSLH-18Y/20-63-200MZ as an example, we will introduce this fully automatic recovery and inflation device, which includes an 18m3/h compressor (oil), a 20m3/h negative pressure compressor, a 63 m3/h vacuum pump, a 200L liquid storage tank, and fully automatic operation
Main Technical Performance Parameter
1. Device Peformance Parameter
|
Model
|
high pressure liquefaction & refrigeration
|
|
Temperature of Working Circumstance
|
-10℃～40℃
|
|
Recovery
|
Final Pressure(Pa)
|
≤1000
|
|
|
Initial Pressure(Pa)
|
≤133
|
|
Charge
|
Final Pressure(MPa)
|
1.0
|
|
|
Charge speed (h/m3 )
|
≤0.2
|
|
Vacuum speed(h/m3 )
|
≤0.1
|
|
Limit Vacuum (Pa)
|
≤10
|
|
Vacuum Preservation(Pa/24 hours)
|
≤400
|
|
Annual Leak Rate
|
≤0.5%
|
|
Purity of the Recovered SF6 Gas
|
Moisture Content (ppmv)
|
≤60
|
|
|
Oil Content (ppmw)
|
≤10
|
|
StorageContainer
|
Mode of Storage
|
Liquid State
|
|
|
Pressure (MPa)
|
5.0
|
|
|
Volume (L)
|
200
|
|
|
Stored Liquid Gas (kg)
|
200
|
|
|
electronic weighing
|
Measure and display the weight of SF6 in the container (optional)
|
|
Mode of Liquefying
|
Liquefaction by refrigeration
|
|
Regeneration Mode of the Filter of Drying
|
Vacuum heating
|
|
Power Supply
|
3Φ 380V 50HZ
|
|
Total Power Consumption (kW)
|
≤20
|
|
Noise dB(A)
|
≤70
|
|
Weight of the device
|
About 700 kilograms
|
|
External dimensions(mm)
|
1800*1050*1800
|
2. The main Parts performance parameters
|
compressor
|
Theoretical Discharge
|
m3/h
|
18
|
|
Vacuum compressor
|
Theoretical Discharge
|
m3/h
|
20
|
|
|
Limit Vacuum
|
pa
|
1000
|
|
Vacuum pump
|
Speed
|
m3/h
|
63
|
|
|
Limit Vacuum
|
Pa
|
10
|
|
|
Classification
|
|
The second storge
|
|
|
Designed Pressure
|
MPa
|
5.0
|
|
Container
|
Designed Temperature
|
℃
|
100
|
|
|
Volume
|
L
|
200
|
|
|
Liquid storage Capacity of the Container
|
kg
|
200
|
3.enclosure
Two DN20 rubber hoses with one end connected to the equipment and the other end M27 * 1.5 internal thread
1 power cord of 10 meters
English manual
English Certificate of Qualification
English factory test report
Can support customizing recycling devices according to dilo's technical parameters, such as B057R03, B058R03, L170R01
