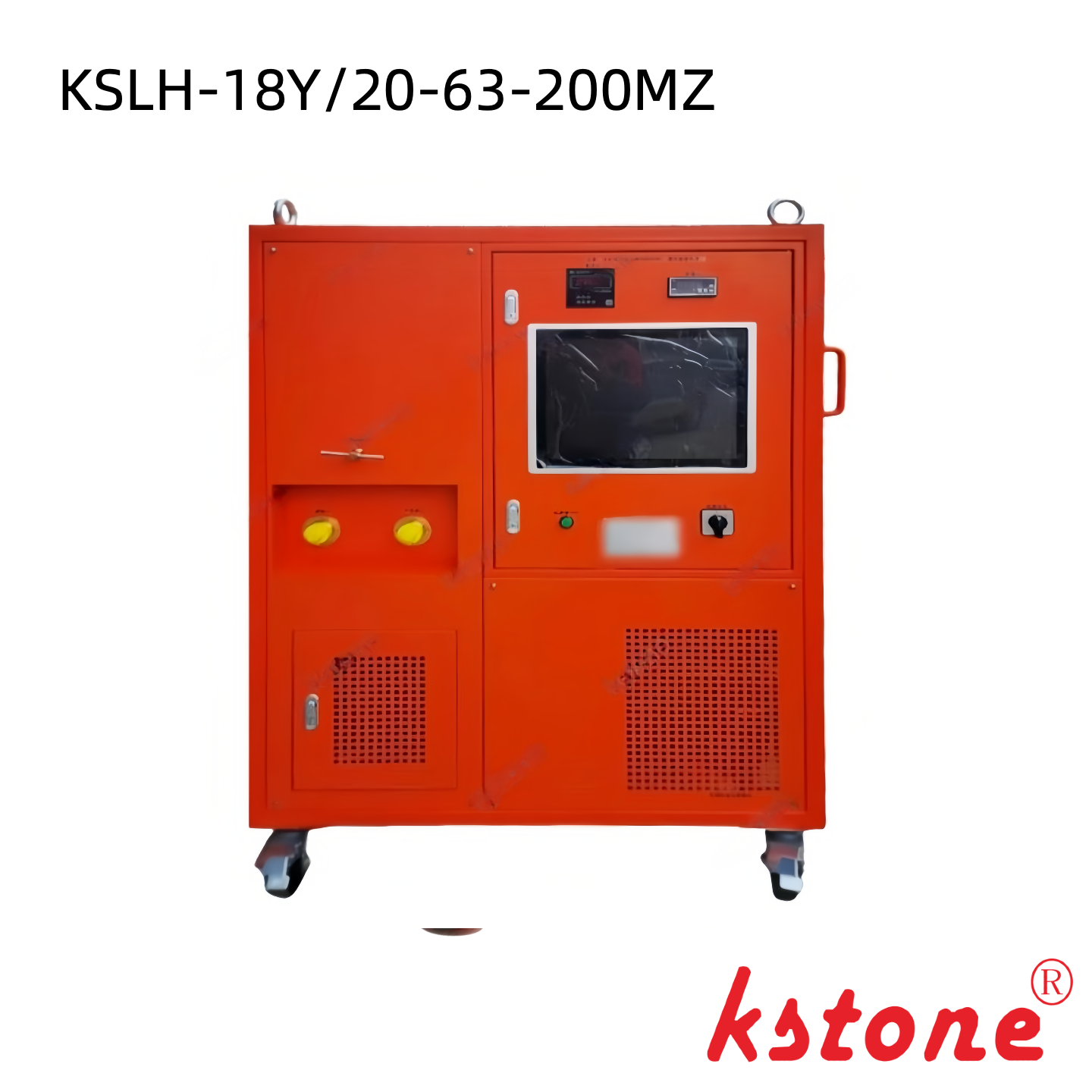

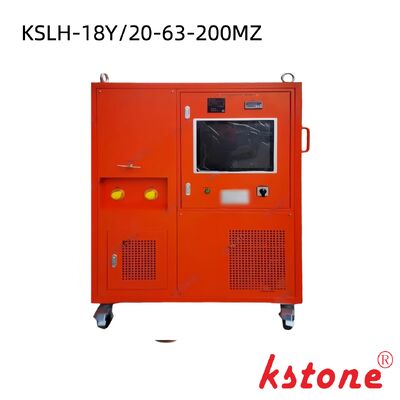

Sulfur Hexafluoride SF6 Recovery System Gas Disposal Equipment 200L Customized
| Place of Origin | Shanghai |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO9000 |
| Model Number | KSLH-18Y/20-63-200MZ |
| Document | KSLH-18Y20-63-300Z.pdf |
| Minimum Order Quantity | 1 |
| Price | $2000-$100000 |
| Packaging Details | Carton / Wooden Box |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 10 per year |
Product Details
| Power Supply | 3Φ 380V, 50Hz | Weight | About 700 Kilograms |
|---|---|---|---|
| Vacuum Pump Limit Vacuum | ≤0Pa | Recovery Rate | 99.9% |
| Storage Tank Capacity | 200L | Product Type | Recovery Equipment |
| Dimensions | 1800mm×1050mm×1800mm | Operating Temperature | -10-40℃ |
| Highlight | Sulfur Hexafluoride SF6 Recovery System,100L SF6 Recovery System,sf6 gas disposal equipment |
||
Product Description
Sulfur Hexafluoride SF6 Recovery System Gas Disposal Equipment 200L Customized
KSLH-18Y/20-63-200MZ
Our company is the drafting unit of the industry standard "DL/T1353-2024 Technical Specification for Sulfur Hexafluoride Treatment System" issued by the People's Republic of China National Energy Administration
SF6 recovery devices are generally customized products; According to the functional classification, whether it includes the function of recycling, vacuuming, and inflation, there are many configurations based on customer needs, such as whether negative pressure recycling is required, whether an oil-free compressor is used, the speed of the compressor, the size of the liquid storage tank, whether it has a freezing function, whether it has moisture filtration and particle filtration, whether it needs to be fully automatic, etc;Taking KSLH-18Y/20-63-200MZ as an example, we will introduce this fully automatic recovery and inflation device, which includes an 18m3/h compressor (oil), a 20m3/h negative pressure compressor, a 63 m3/h vacuum pump, a 200L liquid storage tank, and fully automatic operation
Main Technical Performance Parameter
1. Device Peformance Parameter
| Model | high pressure liquefaction & refrigeration | |
| Temperature of Working Circumstance | -10℃～40℃ | |
| Recovery | Final Pressure(Pa) | ≤1000 |
| Initial Pressure(Pa) | ≤133 | |
| Charge | Final Pressure(MPa) | 1.0 |
| Charge speed (h/m3 ) | ≤0.2 | |
| Vacuum speed(h/m3 ) | ≤0.1 | |
| Limit Vacuum (Pa) | ≤10 | |
| Vacuum Preservation(Pa/24 hours) | ≤400 | |
| Annual Leak Rate | ≤0.5% | |
| Purity of the Recovered SF6 Gas | Moisture Content (ppmv) | ≤60 |
| Oil Content (ppmw) | ≤10 | |
| StorageContainer | Mode of Storage | Liquid State |
| Pressure (MPa) | 5.0 | |
| Volume (L) | 200 | |
| Stored Liquid Gas (kg) | 200 | |
| electronic weighing | Measure and display the weight of SF6 in the container (optional) | |
| Mode of Liquefying | Liquefaction by refrigeration | |
| Regeneration Mode of the Filter of Drying | Vacuum heating | |
| Power Supply | 3Φ 380V 50HZ | |
| Total Power Consumption (kW) | ≤20 | |
| Noise dB(A) | ≤70 | |
| Weight of the device | About 700 kilograms | |
| External dimensions(mm) | 1800*1050*1800 | |
2. The main Parts performance parameters
| compressor | Theoretical Discharge | m3/h | 18 |
| Vacuum compressor | Theoretical Discharge | m3/h | 20 |
| Limit Vacuum | pa | 1000 | |
| Vacuum pump | Speed | m3/h | 63 |
| Limit Vacuum | Pa | 10 | |
| Classification | The second storge | ||
| Designed Pressure | MPa | 5.0 | |
| Container | Designed Temperature | ℃ | 100 |
| Volume | L | 200 | |
| Liquid storage Capacity of the Container | kg | 200 |
3.enclosure
- Two DN20 rubber hoses with one end connected to the equipment and the other end M27 * 1.5 internal thread
- 1 power cord of 10 meters
- English manual
- English Certificate of Qualification
- English factory test report
Can support customizing recycling devices according to dilo's technical parameters, such as B057R03, B058R03, L170R01
