220V50Hz, Mobile SF6 Vacuum Inflating Trolley, 3-001-4-R002, DN8, Cylinder Weighing [KSCZ-15C]

  • 220V50Hz, Mobile SF6 Vacuum Inflating Trolley, 3-001-4-R002, DN8, Cylinder Weighing [KSCZ-15C]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSCZ-15C
Minimum Order Quantity 5
Price $3500
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 1000 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Vacuum Pump 15m³/h Pointer Display 0 MPa - 1.6 MPa
Vacuum Gauge Range 0.1 - 10000 Pa SF6 Regulator Outlet Pressure -1 - 1.6 MPa
Pressure Regulation Range -1 To 1.6 MPa (outlet)
Highlight

1.5KW SF6 Vacuum Pump

,

220V SF6 Vacuum Pump

,

SF6 mobile vacuum pump
Leave a Message
Product Description

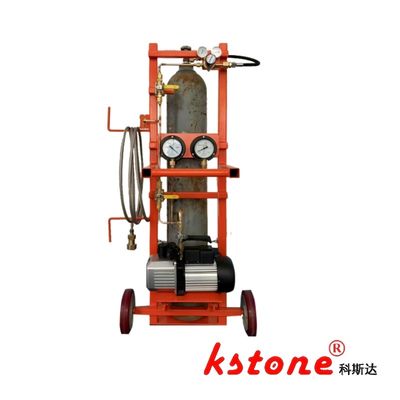

SF6 Vacuum Inflating Trolley – 15m³/h Pump, Stainless Hose, Pressure Regulator – Mobile Gas Charging KSCZ-15C



Used for recharging SF6 gas in the gas chamber
Can be used as a gas cylinder truck for mobility, equipped with stainless steel armored hoses
Equipped with inflation pressure regulator and steel cylinder weighing
Equipped with a vacuum pump with a speed of 15m ³/h



Basic configuration:

Pointer Display Table 0 MPa - 1.6 MPa
Vacuum Gauge Range 0.1 - 10000 Pa
Cylinder Weighing Range 0 - 150 kg
SF6 Regulator Outlet Pressure -1 - 1.6 MPa
Stainless Steel Armored Hose DN8/6m, 1 piece
SF6 Cylinder Connector G5/8
Cylinder Connection Hose DN8/0.3m stainless steel armored hose
Optional: Cylinder Heating Available (optional, removable)
Optional: Cylinder Weighing Available (optional, removable)
Dimensions (L×W×H) 600×570×1405 mm
Weight 62 kg
