220V50Hz， Mobile SF6 vacuum inflating trolley,3-001-4-R002,DN8,Cylinder Weighing

220V50Hz， Mobile SF6 vacuum inflating trolley,3-001-4-R002,DN8,Cylinder Weighing
220V50Hz， Mobile SF6 vacuum inflating trolley,3-001-4-R002,DN8,Cylinder Weighing

Large Image :  220V50Hz， Mobile SF6 vacuum inflating trolley,3-001-4-R002,DN8,Cylinder Weighing

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-15C
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $2000-$100000
Packaging Details: Carton / Wooden Box
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 1000 per year
Contact Now
Detailed Product Description
Features: High Vacuum Degree, Compact Design, Easy To Operate Voltage: 220V
Power: 1.5KW Power Source: Electric
Dimensions: 600mm X 570mm X 1405mm Flow Rate: 15m3/h
Ultimate Vacuum: 10pa Material: Stainless Steel
Weight: 62kg Model: Vacuum Pump
Inlet Port Size: DN8 Application: Vacuuming SF6 Gas In High Voltage Electrical Equipment
Highlight:

1.5KW SF6 Vacuum Pump

,

220V SF6 Vacuum Pump

,

SF6 mobile vacuum pump

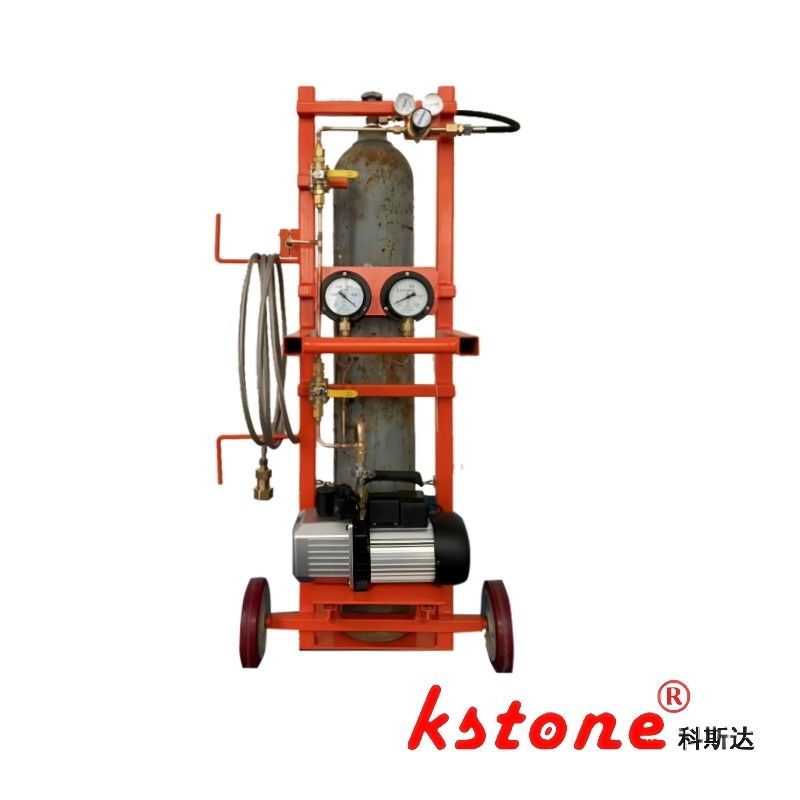

SF6 Vacuum Inflating Trolley – 15m³/h Pump, Stainless Hose, Pressure Regulator – Mobile Gas Charging KSCZ-15C


Used for recharging SF6 gas in the gas chamber
Can be used as a gas cylinder truck for mobility, equipped with stainless steel armored hoses
Equipped with inflation pressure regulator and steel cylinder weighing
Equipped with a vacuum pump with a speed of 15m ³/h


Basic configuration:

Pointer Display Table 0 MPa - 1.6 MPa
Vacuum Gauge Range 0.1 - 10000 Pa
Cylinder Weighing Range 0 - 150 kg
SF6 Regulator Outlet Pressure -1 - 1.6 MPa
Stainless Steel Armored Hose DN8/6m, 1 piece
SF6 Cylinder Connector G5/8
Cylinder Connection Hose DN8/0.3m stainless steel armored hose
Optional: Cylinder Heating Available (optional, removable)
Optional: Cylinder Weighing Available (optional, removable)
Dimensions (L×W×H) 600×570×1405 mm
Weight 62 kg
