Vacuum inflating trolley, 15m3/h, 63m3/h, 100m3/h

Large Image : Vacuum inflating trolley, 15m3/h, 63m3/h, 100m3/h

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-15C

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2500-$5000
Packaging Details:	Wooden Box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Model:	Vacuum Pump	Inlet Port Size:	DN8
Application:	Vacuuming SF6 Gas In High Voltage Electrical Equipment	Type:	Electric
Frequency:	50Hz/60Hz	Max Flow Rate:	100m3/h
Max Vacuum:	10Pa	Outlet Port Size:	DN8
Highlight:	Vacuum sf6 gas filling device , Electric sf6 gas filling device , sf6 gas management Device

KSCZ-15C SF6 Vacuum Inflating Trolley

Engineered for industrial SF6 gas management, the KSCZ-15C trolley integrates a 15m³/h vacuum pump, stainless steel armored hoses, and a precision pressure regulator for mobile gas charging. Ideal for refilling switchgear chambers, this trolley combines portability with leak-proof connectivity via its integrated G5/8 stainless steel hosing system. The built-in inflation pressure regulator and cylinder weighing mechanism ensure accurate gas volume control, while the 15m³/h pump enables efficient chamber evacuation. Its mobile design facilitates easy deployment across industrial sites, making it a versatile solution for SF6 gas refilling operations.

Vacuum pump optional, 15m3/h, 63m3/h, 100m3/h

Brand options: Leybold or Made in China

Basic Configuration

Pressure Display:0-1.6 MPa pointer gauge

Vacuum Measurement:0.1-10000 Pa gauge range

Cylinder Weighing:0-150 kg capacity

Regulator Outlet:-1 to 1.6 MPa pressure range

Standard Hosing:1× DN8/6m stainless steel armored hose

Cylinder Connector:G5/8 thread interface

Connecting Hose:1× DN8/0.3m stainless steel armored hose

Optional Upgrades

Removable cylinder heating system

Upgradable cylinder weighing module

Technical Specifications

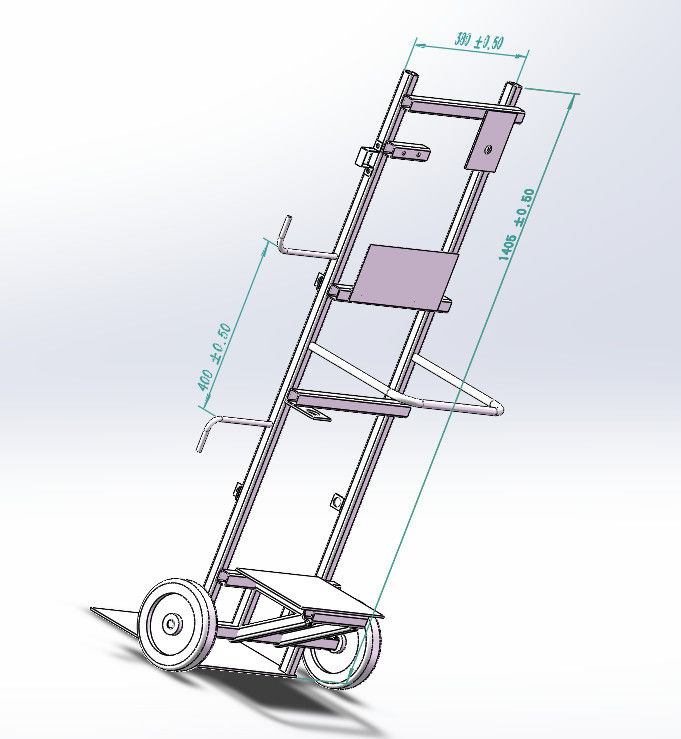

Dimensions:600×570×1405 mm (L×W×H)

Net Weight:62 kg

Technical Parameter Table

Parameter	Description
Model	KSCZ-15C
Pump Capacity	15m³/h vacuum pump
Hose Configuration	DN8 stainless steel armored hose (6m main hose + 0.3m connecting hose)
Pressure Regulation	-1 to 1.6 MPa (outlet pressure range)
Vacuum Gauge Range	0.1 - 10000 Pa
Cylinder Weighing Range	0 - 150 kg
Connector Type	G5/8 thread for SF6 cylinders
Physical Dimensions	600×570×1405 mm
Unit Weight	62 kg
Optional Features	Removable cylinder heating & advanced weighing systems
