SF6 vacuum inflating trolley， 500m³/h ，Anti Backflow,dilo

Large Image : SF6 vacuum inflating trolley， 500m³/h ，Anti Backflow,dilo

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-500/100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Power:	380v50Hz	Max Vacuum Pressure:	6.2*10-2pa
Max Flow Rate:	500m3/h	Origin:	China
Warranty:	1 Year	Valve Ports:	2
Enclosure:	Two 10m High-pressure Hoses
Highlight:	Dilo sf6 filling device , Anti Backflow sf6 filling device , Anti Backflow dilo sf6 cart

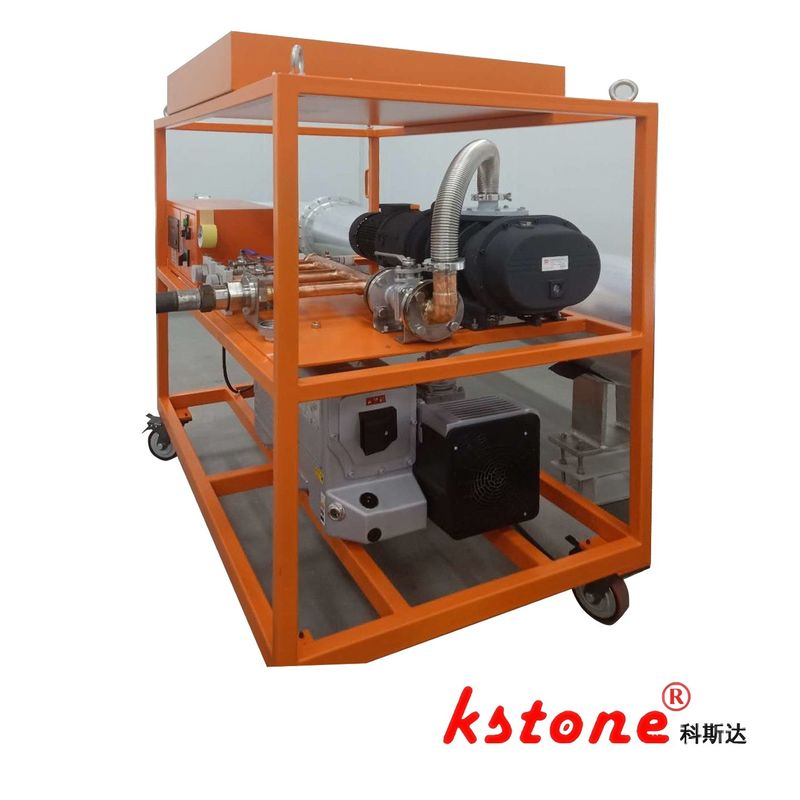

KSCZ-500/100 Industrial Vacuum Unit - 500m³/h Roots Pump, 6×10⁻² Pa Ultimate Vacuum, Anti-Backflow

The KSCZ - 500/100 vacuum unit is specially engineered for industrial vacuum applications. It combines a 500 m³/h Roots pump with a 100 m³/h front - end pump, and is equipped with anti - backflow oil protection to avoid contamination. Featuring two M27 valve ports, it enables multi - channel connections. The system can reach an ultimate vacuum degree of 6×10⁻² Pa. Powered by 380V AC at 50Hz, it comes with two 10m DN20 pipelines (with M27 threads) as standard. Customers have the option to select vacuum pumps from top international brands such as Leybold or Busch, or choose cost - efficient Chinese models. Moreover, the quantity and length of pipelines can be customized to fulfill specific project needs.

Technical Parameter Table

Parameter	Description
Model	KSCZ - 500/100
Pump Configuration	500 m³/h Roots pump + 100 m³/h front - end pump
Anti - Backflow Protection	Oil - based design to prevent contamination
Valve Ports	2× M27 threaded ports for multi - channel connection
Ultimate Vacuum	6×10⁻² Pa
Power Supply	380V AC, 50Hz
Standard Accessories	2×10m DN20 pipelines (with M27 threads)
Pump Brand Options	Leybold, Busch, or Made - in - China models
Pipeline Customization	Adjustable quantity and length
