Corona Principle, Halogen Gas Leak Detection, Gas Leak Detector, [Xp-1a]

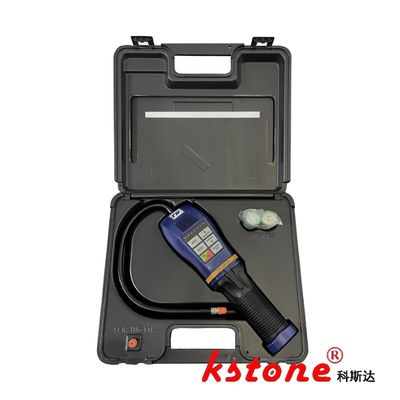

Large Image : Corona Principle, Halogen Gas Leak Detection, Gas Leak Detector, [Xp-1a]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	XP-1A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Power Supply:	3V DC, 2×AA Alkaline Batteries	Maximum Sensitivity:	14g/year (approved For R12, R22, R134a)
Ultimate Sensitivity:	<3g/year (for Halogen Refrigerants)	Probe Lifespan:	~20 Hours (continuous Use)
Operating Temperature:	0–52°C	Battery Life:	~30 Hours (normal Operation)
Response Time:	Instantaneous	Reset Time:	1 Second
Warm-up Time:	~2 Seconds
Highlight:	Corona Discharge Gas Leak Detector , Electrochemistry Gas Leak Detector , Anti Fire gas sniffer detector

Corona Principle, Halogen Gas Leak Detection, Qualitative Leak Detector, Xp-1a

Brand Heritage

The XP-1A traces its origins to TIF, with TIF trademarks still featured on internal packaging. In 2010, TIF was acquired by ROBINAIR—an American pioneer in refrigerant recovery systems—to expand into leak detection, recovery, and identification solutions. In 2014, ROBINAIR joined BOSCH's automotive aftermarket portfolio, rebranding the XP-1A under BOSCH. Manufactured by Bosch Automotive Service Solutions (Suzhou) Co., Ltd., it specializes in automotive refrigerant diagnostics.

Product Utility

Engineered for automotive aftermarket applications, the XP-1A employs corona discharge technology to identify refrigerant leaks in vehicle air conditioning systems. Its compact 22.9×6.5×6.5cm design and 35.5cm probe rod facilitate access to confined spaces, while a 30-hour battery life supports extended field use. With 14g/year sensitivity for R12, R22, and R134a, it meets industry standards for routine maintenance and diagnostic workflows.

Technical Specifications

Parameter	Details
Power Source	3V DC, 2×AA alkaline batteries (replaceable)
Maximum Sensitivity	14g/year (certified for R12, R22, R134a)
Ultimate Sensitivity	<3g/year (for halogen refrigerants)
Probe Lifespan	~20 hours (continuous operation)
Operating Temperature	0–52°C (non-condensing)
Battery Life	~30 hours (standard operation)
Response Time	Instantaneous
Reset Time	1 second
Warm-up Time	~2 seconds
Weight	560g (portable design)
Dimensions (L×W×H)	22.9×6.5×6.5cm
Probe Rod Length	35.5cm (flexible access design)
