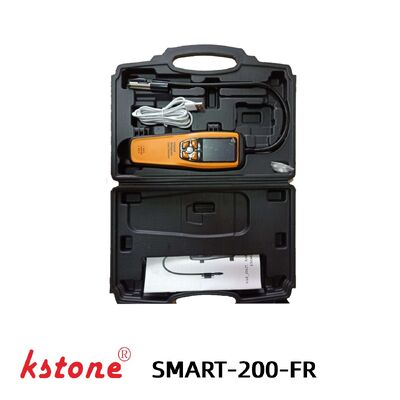

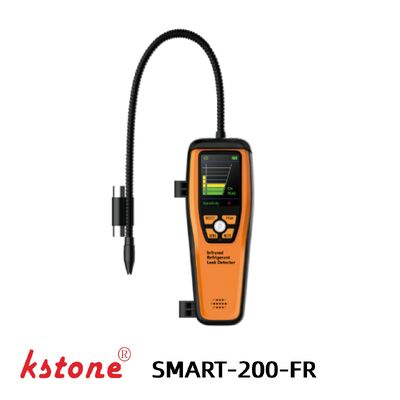

Portable Infrared SF6 Leak Detector with High Sensitivity and Flexible Probe for GIS & Electrical Systems

  • Portable Infrared SF6 Leak Detector with High Sensitivity and Flexible Probe for GIS & Electrical Systems
  • Portable Infrared SF6 Leak Detector with High Sensitivity and Flexible Probe for GIS & Electrical Systems
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number SMART-200-FR
Minimum Order Quantity 1
Price $1000-1200
Packaging Details Carton/ Wooden box
Delivery Time 15 work days
Payment Terms T/T
Supply Ability 1000 units per year
Product Details
Highlight

Portable SF6 leak detector with flexible probe

,

Infrared SF6 detector for GIS systems

,

High sensitivity gas leak detector
Leave a Message
Product Description
Portable Infrared SF6 Leak Detector for GIS & Electrical Systems
The SMART-200-FR portable infrared SF6 leak detector is a high-precision handheld instrument designed for detecting sulfur hexafluoride (SF6) gas leakage in high-voltage electrical systems.
SF6 is widely used in GIS (Gas Insulated Switchgear) and circuit breakers due to its excellent insulation properties. However, even small leaks can lead to performance degradation and environmental concerns. The SMART-200-FR is developed to provide reliable and fast leak detection in field environments.
Unlike traditional corona-based or chemical detection methods, this device uses infrared sensing technology, which provides higher stability, longer sensor lifespan, and better resistance to environmental interference.
It is suitable for both routine maintenance and emergency inspection scenarios in power systems.
How Infrared SF6 Detection Works
The SMART-200-FR uses infrared absorption detection principles to identify SF6 gas concentration changes in the air.
SF6 molecules absorb infrared light at specific wavelengths. The sensor measures the variation in infrared absorption and converts it into a readable leak signal.
Key advantages of infrared detection:
  • Non-contact measurement principle
  • Stable long-term calibration
  • No chemical consumables required
  • Less affected by humidity and temperature changes
  • Suitable for continuous industrial use
This makes the device ideal for high-voltage substations and outdoor inspection environments.
Key Features
High Sensitivity Detection (<4 g/year)
The SMART-200-FR can detect extremely small SF6 leaks, making it suitable for precision GIS inspection and preventive maintenance programs.
Three-Level Sensitivity Adjustment (L / M / H)
Operators can adjust detection sensitivity depending on environment conditions, improving usability in both noisy and controlled environments.
TFT LCD Visual Interface
A high-resolution TFT screen provides real-time leak indication, battery status, and system diagnostics for easier field operation.
Flexible Probe Design
The adjustable probe allows access to narrow spaces such as GIS cabinet joints, cable connection points, valve and flange areas.
Rechargeable Lithium Battery System
3.7V 3000mAh battery providing up to 6 hours continuous operation with fast charging in approximately 4 hours. Suitable for full-day field inspection tasks.
Intelligent Alarm System
Audible alarm for leak detection, peak leak recording function, sensor fault detection, and battery low warning.
Safety & Energy Efficiency Design
Automatic shutdown after 10 minutes idle, hardware power cut-off system, buzzer ON/OFF control, and earphone output for noisy industrial areas.
Applications
The SMART-200-FR is widely used in multiple industrial sectors:
Power Transmission & Distribution
  • GIS substation leak inspection
  • High-voltage switchgear maintenance
  • Circuit breaker SF6 gas monitoring
Power Generation Facilities
  • Power plant electrical equipment inspection
  • SF6 gas system monitoring in generation units
Industrial Manufacturing
  • Electrical equipment factory quality testing
  • SF6-filled component production inspection
Gas Handling Systems
  • SF6 gas recovery systems
  • Vacuum pump leak inspection systems
  • Gas filling station monitoring
Technical Specifications
Parameter Specification
Product Model SMART-200-FR
Detection Gas SF6
Detection Principle Infrared absorption technology
Sensitivity < 4 g/year
Display TFT LCD screen
Battery 3.7V 3000mAh rechargeable lithium battery
Working Time Up to 6 hours continuous use
Charging Time Approx. 4 hours
Operating Temperature -10°C to 52°C
Humidity Range 50%-85% RH
Weight 415 g
Dimensions 201 * 86 * 38 mm
Probe Type Flexible probe
Alarm System Audible + visual alarm
Advantages Compared to Traditional SF6 Leak Detectors
Item SMART-200-FR Traditional Detector
Sensor Life Long life infrared sensor Shorter lifespan
Stability High stability Affected by environment
Accuracy High precision Medium
Maintenance Low maintenance Frequent calibration
Operation Easy handheld use More complex
Why SMART-200-FR is Ideal for GIS Maintenance
Modern GIS systems require precise gas integrity control. The SMART-200-FR supports preventive maintenance by allowing engineers to quickly locate leak points before system failure occurs.
This improves:
  • Equipment reliability
  • Maintenance efficiency
  • Operational safety
  • Gas loss reduction
Frequently Asked Questions (FAQ)
1. What is the SMART-200-FR SF6 leak detector used for?
The SMART-200-FR is used for detecting SF6 gas leakage in electrical equipment such as GIS substations, switchgear, and high-voltage power systems. It helps maintenance engineers quickly identify leak points during inspection and preventive maintenance.
2. How does the SMART-200-FR detect SF6 gas?
It uses infrared absorption sensing technology. SF6 gas absorbs infrared light at specific wavelengths, and the device measures this change to detect and indicate gas leakage in real time.
3. What is the detection sensitivity of this SF6 leak detector?
The SMART-200-FR can detect SF6 gas leaks with a maximum sensitivity of less than 4 g/year, making it suitable for precise GIS inspection and industrial maintenance applications.
4. Is the SMART-200-FR suitable for outdoor field work?
Yes. The device is designed for both indoor and outdoor applications. It features a portable handheld design, flexible probe, and rechargeable battery for field inspections in substations and industrial environments.
5. How long does the battery last?
The built-in 3.7V 3000mAh lithium battery supports up to 6 hours of continuous operation under normal working conditions, depending on usage and environment.
6. Does the device require warm-up time before use?
No. The SMART-200-FR features UV LED instant start technology and infrared sensing design, so it does not require long warm-up time and can be used immediately after powering on.
7. What industries commonly use this SF6 leak detector?
It is widely used in:
  • Power transmission and distribution systems
  • GIS substations
  • Electrical maintenance companies
  • Power plants
  • SF6 gas handling and recovery systems
  • Electrical equipment manufacturing
8. Can the detector be used in narrow spaces?
Yes. The SMART-200-FR is equipped with a flexible probe design, allowing easy access to confined areas such as GIS joints, valves, and cable connection points.
9. Does it have an alarm system?
Yes. It includes an audible alarm system, sensor fault warning, and leak peak recording function to help operators identify leakage more efficiently.
10. What is the operating temperature range?
The device operates in a temperature range of -10 °C to 52°C, making it suitable for most industrial environments.
Why Work With Us
  • Professional gas detection equipment manufacturer
  • Extensive HVAC and SF6 application experience
  • OEM & customized solution support
  • Fast technical response
  • Stable industrial-grade product quality
  • Global B2B export experience
Contact us today for SMART-200-FR portable infrared SF6 leak detector pricing, technical datasheets and customized gas leak detection solutions.
Need Professional SF6 Leak Detection Solutions?
KSTONE provides professional SF6 gas detection equipment for GIS manufacturers, power utilities, electrical maintenance companies, and high-voltage laboratories.
Contact us today for technical consultation and quotation.
