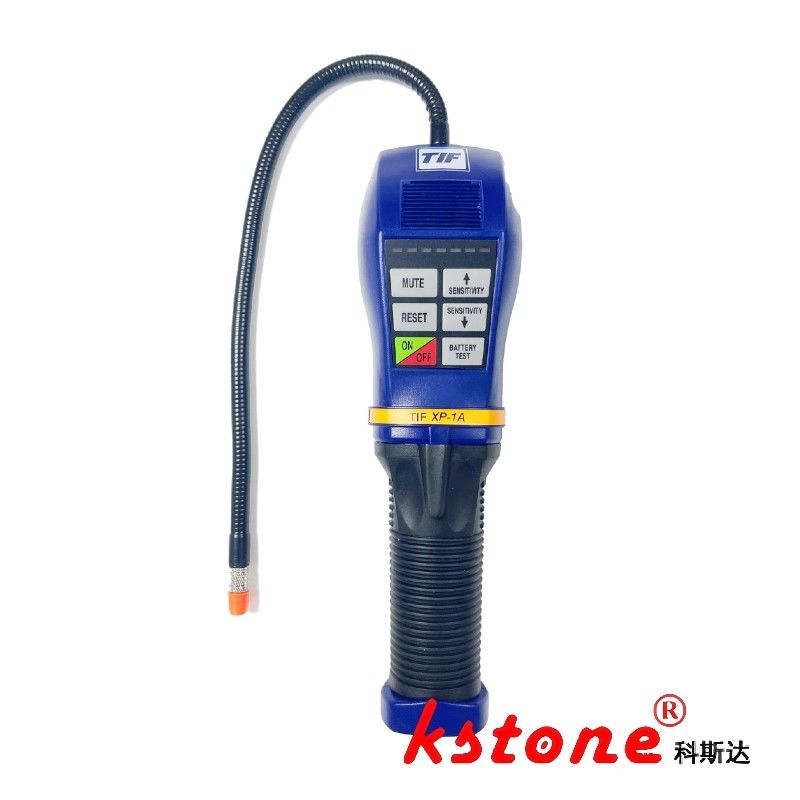

TIF BOCSCH [XP-1A] Qualitative Leak Detector | Corona Discharge Technology

Large Image : TIF BOCSCH [XP-1A] Qualitative Leak Detector | Corona Discharge Technology

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	XP-1A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$200-250
Packaging Details:	Carton / Wooden box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Power Source:

3V DC, 2×AA Alkaline Batteries

Maximum Sensitivity:

14g/year (certified For R12, R22, R134a)

Ultimate Sensitivity:

<3g/year (for Halogen Refrigerants)

Probe Lifespan:

~20 Hours (continuous Operation)

Highlight:

TIF BOCSCH combustible gas detector

Qualitative combustible gas detector

Qualitative gas leak monitor

TIF BOCSCH XP-1A Qualitative Leak Detector | Corona Discharge Technology

Brand Evolution

The XP-1A's heritage stems from TIF, with internal packaging retaining the original TIF trademark. In 2010, TIF was acquired by ROBINAIR—a U.S. leader in refrigerant recovery systems—aiming to expand into leak detection, recovery, and identification solutions. In 2014, ROBINAIR became part of BOSCH's automotive aftermarket division, leading to the XP-1A's rebranding under BOSCH. Currently manufactured by Bosch Automotive Service Solutions (Suzhou) Co., Ltd., it specializes in automotive refrigerant diagnostics.

Product Application

Designed for the automotive aftermarket, the XP-1A utilizes corona discharge technology to detect refrigerant leaks in vehicle air conditioning systems. Its compact 22.9×6.5×6.5cm body and 35.5cm probe rod enable access to tight spaces, while a 30-hour battery life supports prolonged on-site use. With 14g/year sensitivity certified for R12, R22, and R134a, it meets industry standards for routine maintenance and diagnostic tasks.

Technical Specifications

Parameter	Details
Power Source	3V DC, 2×AA alkaline batteries (replaceable)
Maximum Sensitivity	14g/year (certified for R12, R22, R134a)
Ultimate Sensitivity	<3g/year (for halogen refrigerants)
Probe Lifespan	~20 hours (continuous operation)
Operating Temperature	0–52°C (non-condensing)
Battery Life	~30 hours (standard operation)
Response Time	Instantaneous
Reset Time	1 second
Warm-up Time	~2 seconds
Weight	560g (portable design)
Dimensions (L×W×H)	22.9×6.5×6.5cm
Probe Rod Length	35.5cm (flexible access design)
