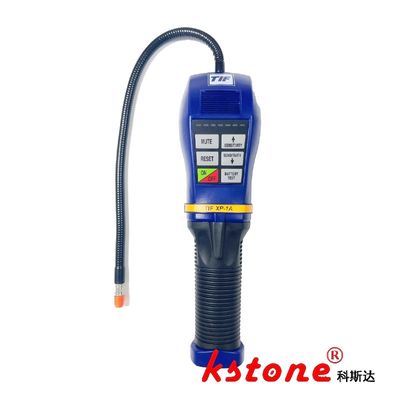

TIF B-OSCH [XP-1A] Leak Detector | Corona Discharge Technology

  • TIF B-OSCH [XP-1A] Leak Detector | Corona Discharge Technology
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number XP-1A
Document gas leak detector.pdf
Minimum Order Quantity 10
Price $200-300
Packaging Details Carton / Wooden box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Source 3V DC, 2×AA Alkaline Batteries Maximum Sensitivity 14g/year (certified For R12, R22, R134a)
Ultimate Sensitivity <3g/year (for Halogen Refrigerants) Probe Lifespan ~20 Hours (continuous Operation)
Highlight

TIF BOCSCH combustible gas detector

,

Qualitative combustible gas detector

,

Qualitative gas leak monitor
Leave a Message
Product Description
TIF B-OCSCH XP-1A Qualitative Leak Detector | Corona Discharge Technology
Brand Evolution

The XP-1A's heritage stems from TIF, with internal packaging retaining the original TIF trademark. In 2010, TIF was acquired by ROBINAIR—a U.S. leader in refrigerant recovery systems—aiming to expand into leak detection, recovery, and identification solutions. In 2014, ROBINAIR became part of B-OSCH's automotive aftermarket division, leading to the XP-1A's rebranding under B-OSCH. Currently manufactured by B-osch Automotive Service Solutions (Suzhou) Co., Ltd., it specializes in automotive refrigerant diagnostics.

Product Application

Designed for the automotive aftermarket, the XP-1A utilizes corona discharge technology to detect refrigerant leaks in vehicle air conditioning systems. Its compact 22.9*6.5*6.5cm body and 35.5cm probe rod enable access to tight spaces, while a 30-hour battery life supports prolonged on-site use. With 14g/year sensitivity certified for R12, R22, and R134a, it meets industry standards for routine maintenance and diagnostic tasks.

Technical Specifications
Parameter Details
Power Source 3V DC, 2*AA alkaline batteries (replaceable)
Maximum Sensitivity 14g/year (certified for R12, R22, R134a)
Ultimate Sensitivity <3g/year (for halogen refrigerants)
Probe Lifespan ~20 hours (continuous operation)
Operating Temperature 0–52°C (non-condensing)
Battery Life ~30 hours (standard operation)
Response Time Instantaneous
Reset Time 1 second
Warm-up Time ~2 seconds
Weight 560g (portable design)
Dimensions (L*W*H) 22.9*6.5*6.5cm
Probe Rod Length 35.5cm (flexible access design)
Why Choose Kstone?
  • Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  • One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  • Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  • Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  • Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
