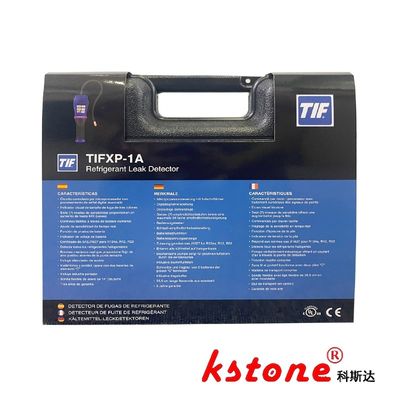

3.7V Sulfur Hexafluoride Refrigerant Gas Leak Detector Combustible Gas Indicator XP-1A

Large Image : 3.7V Sulfur Hexafluoride Refrigerant Gas Leak Detector Combustible Gas Indicator XP-1A

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	XP-1A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Operating Temperature:	0-50°C	Weight:	0.5 Lbs
Warranty:	1 Year	Storage Temperature:	-20-60°C
Dimensions:	5.5 X 2.5 X 1 Inches	Display:	Analog
Power Source:	Battery	Battery Type:	9V
Measurement Range:	0-10000ppm，100%LEL, 0~100%VOL	Operating Humidity:	99%RH (non-condensing)
Language:	Chinese/English/ Russian	Working Voltage:	3.7V Rechargeable Lithium Battery
Materials:	Flame Retardant Thermoplastic PS	Signal Output:	4-20mA And RS485
Running Time:	>4hours	Package Size:	10X5X3cm
Working Pressure:	86kPa~106kPa	Alarm Type:	Audible And Visual
Zero Drift:	≤±1%(F.S/year)	Wireless Frequency:	315/433MHz
Sampling Methods:	Diffusion Or Pump-suction Selectable	Detect Item:	Sulfur Hexafluoride/ SF6
Highlight:	3.7V refrigerant gas leak detector , Sulfur Hexafluoride refrigerant gas leak detector , Sulfur Hexafluoride combustible gas indicator

3.7V Sulfur Hexafluoride Refrigerant Gas Leak Detector Combustible Gas Indicator XP-1A

Brand Evolution

The XP-1A originates from TIF, with internal packaging retaining the TIF trademark. In 2010, TIF was acquired by ROBINAIR, a U.S. leader in refrigerant recovery systems, to expand its product line into leak detection, recovery, and identification. In 2014, ROBINAIR became part of BOSCH's automotive aftermarket division, making the XP-1A a BOSCH-branded product. Manufactured by Bosch Automotive Service Solutions (Suzhou) Co., Ltd., it specializes in automotive refrigerant leak detection.

We have authorized Bosch to distribute XP-1A,from “Bosch Automotive Service Solutions (Suzhou) Co., Ltd.”

Product Applications

Designed for automotive aftermarket use, the XP-1A leverages corona discharge technology to detect refrigerant leaks in vehicle air conditioning systems. Its compact 22.9×6.5×6.5cm form factor and 35.5cm probe rod enable access to tight spaces, while 30-hour battery life ensures prolonged field use. The detector meets industry standards for R12, R22, and R134a with 14g/year sensitivity, suitable for routine maintenance and diagnostics.

Technical Parameters

Parameter	Details
Power Supply	3V DC, 2×AA alkaline batteries
Maximum Sensitivity	14g/year (approved for R12, R22, R134a)
Ultimate Sensitivity	<3g/year (for halogen refrigerants)
Probe Lifespan	~20 hours (continuous use)
Operating Temperature	0–52°C
Battery Life	~30 hours (normal operation)
Response Time	Instantaneous
Reset Time	1 second
Warm-up Time	~2 seconds
Weight	560g
Dimensions (L×W×H)	22.9×6.5×6.5cm
Probe Rod Length	35.5cm
