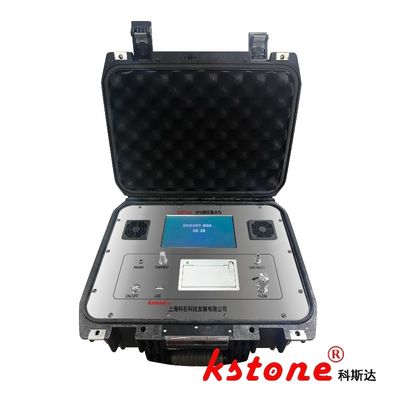

Custom Handheld Moisture Dew Point Meter For Ppmv, PP20 ,SF6, N2, And H2 [KST-VII]

Large Image : Custom Handheld Moisture Dew Point Meter For Ppmv, PP20 ,SF6, N2, And H2 [KST-VII]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KST-VII

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Dimensions:	414333177mm	Battery Working Time:	＞8 Hours
Power Supply Mode:	AC220V / Lithium Battery	Measured Gas:	Air / N2 / SF6
Working Temperature:	-20 - +50℃	Relative Humidity:	5 - 90%RH
Highlight:	Custom handheld dew point meter , PPMV handheld dew point meter , PPMV dewpoint analyzer

Dew Point Micro Moisture Meter | Resistance Capacitance PP20 Conversion | Vaisala 143 KST-VII

Product Overview

This precision dew point meter integrates an imported Vaisala 143 capacitance-resistance sensor, delivering high-accuracy measurements and rapid response. Engineered for trace moisture analysis, it supports real-time display of dew point (-8 to +20°C Td), PP20, PPMV, temperature, and flow rate via an 800×480 high-definition touch screen. Its self-locking quick connector enables plug-and-play field operation, while a lithium battery ensures >8 hours of continuous use for outdoor applications. Compliant with DL/T1366-2023 standards, it suits moisture detection in compressed air, SF6, N2, and H2 gases.

Key Advantages

Self-Calibration System:Maintains accuracy without external tools.
Multi-Parameter Tracking:Dynamic curve display for real-time measurement trends.
Dual-Power Flexibility:Lithium battery with AC/DC backup for extended field use.
Data Management:USB download, thermal silent printing, and large-capacity storage.
Probe Protection:Automatic self-protection for prolonged sensor lifespan.

Technical Parameters

Category	Details
Dew Point Range	-8 to +20°C Td
Humidity Range	0–100%
Temperature Range	-40 to +80°C
Dew Point Accuracy	±0.5°C Td (benchmarked)
Resolution	0.1°C Td
Response Time	-60→20°C Td: 5s [30s]; 20→-60°C Td: 10s [300s]
Working Temp	-20 to +50°C
Flow Rate	0.5–0.6 L/min
Measured Gases	Air, N2, SF6
Power Supply	AC220V / Lithium battery (＞8h runtime)
Display	800×480 touch screen (dew point, PPMV, PP20, flow, temp)
Dimensions	414×333×177mm
