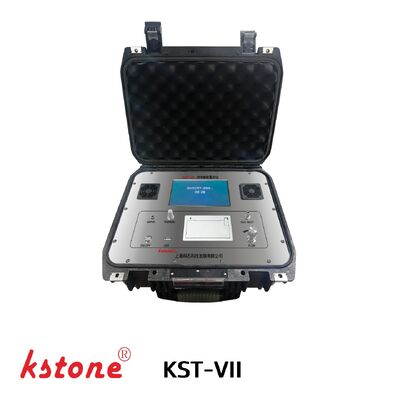

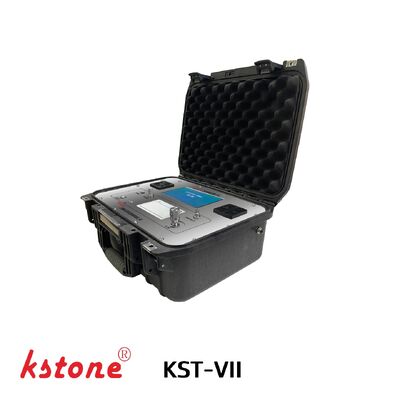

Intelligent Dew Point Meter with High-Precision Sensor and Touchscreen for SF6 Gas Moisture Analysis

  • Intelligent Dew Point Meter with High-Precision Sensor and Touchscreen for SF6 Gas Moisture Analysis
  • Intelligent Dew Point Meter with High-Precision Sensor and Touchscreen for SF6 Gas Moisture Analysis
  • Intelligent Dew Point Meter with High-Precision Sensor and Touchscreen for SF6 Gas Moisture Analysis
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KST-VII
Minimum Order Quantity 1
Price $3500-4000
Packaging Details Carton/ Wooden box
Delivery Time 15 work days
Payment Terms T/T
Supply Ability 1000 units per year
Product Details
Dew Point Range -80…+20°C Td Humidity Range 0…100%
Temperature Range -40…+80°C Dew Point Accuracy ±0.5°C Td
Resolution 0.1°C Td Temperature Accuracy ±0.5°C
Humidity Accuracy ±4.5%
Highlight

Intelligent Dew Point Meter with Touchscreen

,

High-Precision SF6 Gas Moisture Analyzer

,

Dew Point Meter for SF6 Gas
Leave a Message
Product Description
Intelligent Dew Point Meter for SF6 Gas Moisture Analysis & Micro Water Measurement
The KST-VII intelligent SF6 dew point meter is a high-precision portable gas moisture analyzer developed for SF6 gas moisture measurement, micro water analysis and industrial dew point testing applications.
The instrument adopts an imported high-precision dew point sensor based on advanced capacitive sensing technology, including the well-known Vaisala DRYCAP sensor platform, providing high measurement accuracy, fast response speed and excellent long-term stability.
The KST-VII SF6 dew point meter integrates intelligent operation, dynamic curve tracking and multi-parameter display functions into a compact portable structure suitable for field testing and industrial gas analysis environments.
The intelligent touchscreen interface allows operators to directly read: dew point temperature, moisture content, PPMV value, PP20 value, temperature, and gas flow rate.
Why SF6 Gas Moisture Measurement Is Important
Moisture content in SF6 gas directly affects the insulation performance and operational safety of gas-insulated electrical equipment.
Excessive moisture in SF6 gas systems may lead to:
  • Reduced insulation reliability
  • Internal discharge risk
  • Corrosion problems
  • Electrical equipment failure
  • Long-term operational instability
Accurate SF6 gas moisture analysis is therefore essential during GIS manufacturing, electrical equipment maintenance, SF6 gas filling, gas quality inspection, and substation maintenance.
KST-VII SF6 Dew Point Measurement Solution
Imported High-Precision Dew Point Sensor
The KST-VII SF6 dew point meter adopts an imported high-precision dew point sensor using advanced capacitive sensing technology.
The imported sensor provides high measurement accuracy, excellent repeatability, fast response speed, long-term stability, and reliable industrial performance.
The instrument supports dew point measurement range from -80°C to +20°C Td.
Intelligent Touchscreen Operation

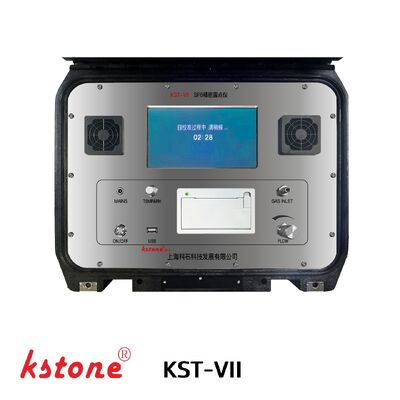

The KST-VII dew point analyzer features a true-color 800×480 high-definition touchscreen display for simplified operation and intuitive parameter reading.
Operators can simultaneously view dew point temperature, moisture content PPMV, moisture content PP20, gas flow rate, temperature, and humidity parameters.
Dynamic Curve Tracking Display
The KST-VII portable moisture analyzer supports real-time measurement curve tracking and dynamic data display.
This function allows engineers to monitor gas moisture variation, dew point stabilization process, measurement trend changes, and dynamic response behavior.
Portable Outdoor Operation Design
The KST-VII intelligent dew point meter adopts a compact portable structure with integrated handle design.
Its lithium battery power supply supports long-duration outdoor testing, portable field inspection, substation operation, and mobile industrial testing.
The battery working time exceeds 8 hours for continuous field operation.
Advanced Data Management Functions
The KST-VII SF6 moisture analyzer supports USB data download, large-capacity data storage, silent thermal printer output, AC/DC dual power supply, and intelligent self-calibration.
These functions improve testing efficiency and simplify industrial data management.
Applications of KST-VII SF6 Dew Point Meter
SF6 Gas Moisture Analysis
The KST-VII SF6 dew point meter is widely used for SF6 gas moisture analysis in electrical equipment and GIS systems.
Electrical Equipment Testing
The KST-VII dew point analyzer is suitable for moisture testing in power equipment and electrical insulation systems.
Compressed Air Moisture Measurement
The KST-VII portable dew point meter can also be used for compressed air system moisture analysis.
Suitable applications include industrial compressed air systems, pneumatic equipment, dry gas monitoring, and industrial air quality inspection.
Hydrogen Gas Moisture Analysis
The KST-VII intelligent moisture analyzer is also suitable for hydrogen gas moisture measurement in power plant applications.
How the SF6 Dew Point Meter Works
The KST-VII dew point meter continuously samples gas through its intelligent gas circuit and imported high-precision dew point sensor.
The sensor analyzes moisture concentration and converts gas humidity into dew point temperature values.
The intelligent microprocessor system simultaneously calculates dew point temperature, moisture content, PPMV value, PP20 value, and gas flow rate.
Real-time data and measurement curves are displayed on the touchscreen interface for convenient industrial analysis.
Key Features of KST-VII Intelligent Dew Point Meter
Imported High-Precision Sensor
Advanced imported dew point sensor with excellent stability and accuracy.
Multi-Parameter Simultaneous Display
Displays dew point, moisture content, temperature and flow rate simultaneously.
Intelligent Touchscreen Interface
800×480 HD true-color touchscreen for simplified operation.
Dynamic Curve Tracking
Real-time measurement trend tracking and dynamic display.
Portable Outdoor Design
Compact portable structure with lithium battery power supply.
USB Data Export & Thermal Printer
Supports data storage, USB download and silent thermal printing.
Technical Specifications
Parameter Details
Product Model KST-VII Intelligent Dew Point Meter
Dew Point Range -80…+20°C Td
Humidity Range 0…100%
Temperature Range -40…+80°C
Dew Point Accuracy ±0.5°C Td
Resolution 0.1°C Td
Temperature Accuracy ±0.5°C
Humidity Accuracy ±4.5%
Response Time -60->20°C Td: 5S [30S] / 20->-60°C Td: 10S [300S]
Working Temperature -20…+50°C
Relative Humidity 5…90% RH
Flow Rate 0.5…0.6 L/min
Applicable Gases Air / N2 / SF6
Power Supply AC220V / Lithium Battery
Display 800×480 HD Touchscreen
Display Parameters Dew Point / PPMV / PP20 / Flow / Temperature
Gas Connection Self-locking Quick Connector
Power Consumption ＜5W
Battery Working Time ＞8 Hours
Connector Material Copper
Carrying Method Portable Handle
Dimensions 414 × 333 × 177 mm
FAQ
What gases can the KST-VII analyze?
The KST-VII dew point meter can analyze Air, N2 and SF6 gas moisture content.
What is the dew point measurement range?
The KST-VII supports dew point measurement range from -80°C to +20°C Td.
Is the KST-VII suitable for SF6 gas testing?
Yes. The KST-VII is specially designed for SF6 gas moisture analysis and electrical equipment testing applications.
Does the instrument support portable outdoor operation?
Yes. The KST-VII includes lithium battery power supply and portable carrying structure for outdoor field testing.
Can the KST-VII export testing data?
Yes. The instrument supports USB data download and large-capacity data storage.
Does the dew point meter include a printer?
Yes. The KST-VII includes a silent thermal printer for on-site report printing.
