High-Precision Cold Mirror Dew Point Meter [KST-V]: SF6/N2/H2 Testing For Middle East GIS Manufacturers & Power Firms

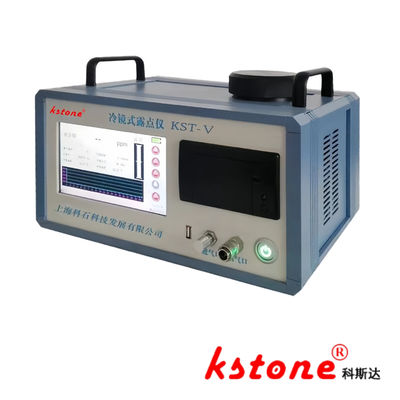

Large Image : High-Precision Cold Mirror Dew Point Meter [KST-V]: SF6/N2/H2 Testing For Middle East GIS Manufacturers & Power Firms

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KST-V

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$18000-$20000
Packaging Details:	Carton / Wooden Box
Delivery Time:	30work days
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

Measurement Method:	Fully Automatic Continuous Measurement	Gas To Be Measured:	SF6, N2, H2, Etc.
Gas Flow Rate:	400~800±50ml/min	Flow Display:	Digital Flow Meter
Temperature Resolution:	0.1℃	Measurement Range:	20℃ ~ -62℃

High-Precision Cold Mirror Dew Point Meter KST-V: SF6/N2/H2 Testing for Middle East GIS Manufacturers & Power Firms

The KST-V dew point meter adopts the advanced cold mirror method, ensuring high-precision detection, which is crucial for industries requiring accurate moisture measurement like GIS manufacturing and power sectors in the Middle East. This dew point meter enables fully automatic continuous measurement, eliminating the need for manual intervention and improving work efficiency—perfect for the busy operations of GIS production industries and power companies.

It is specially designed for dew point testing of gases such as N2, H2, and SF6, with a measurement range of 20℃ to -62℃ and a measurement error better than ±0.3℃, along with a temperature resolution of 0.1℃, providing reliable data for critical processes. The dew point meter features a digital flow meter to display gas flow (400~800±50ml/min), a self-sealing quick connector for easy sampling, and supports display units of ℃ and ppm, meeting diverse monitoring needs.

Equipped with a 24V lithium battery (supporting >8h continuous operation) and AC220V±10% (50Hz) power supply, it is flexible for on-site and laboratory use. With dimensions of 340mm×230mm×200mm and weight ≤9.5kg, it is portable. For the Middle East market, it adapts to operating environments (temperature: -20℃~50℃; humidity: ≤85%RH) and gas pressure ≤1MPa, making this dew point meter a top choice for GIS manufacturers and power companies seeking precision and durability.

Main Technical Specifications	Details
Measurement Method	Fully automatic continuous measurement
Gas to be Measured	SF6, N2, H2, etc.
Gas Flow Rate	400~800±50ml/min
Flow Display	Digital flow meter
Temperature Resolution	0.1℃
Measurement Range	20℃ ~ -62℃
Measurement Error	Better than ±0.3℃
Display Units	℃, ppm
Measured Gas Pressure	≤1MPa
Operating Environment Temp	-20℃ ~ 50℃
Operating Environment Humidity	≤85%RH
Power Supply	AC220V±10% (50Hz); 24V lithium battery
Power	≤70W
Continuous Operation Time	>8h
Sampling Interface	Self-sealing quick connector
Dimensions	340mm×230mm×200mm
Weight	≤9.5 kg
