Custom Sf6 Gas Management Inflation System Connector 15 Unit

Custom Sf6 Gas Management Inflation System Connector 15 Unit
Custom Sf6 Gas Management Inflation System Connector 15 Unit

Large Image :  Custom Sf6 Gas Management Inflation System Connector 15 Unit

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: Inflatable connector, 15 piece set
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $2000-$100000
Packaging Details: Carton / Wooden Box
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000
Chat Now
Detailed Product Description
Pressure Rating: Up To 100 Bar Circuit Breaker Compatibility: Compatible With All SF6 Circuit Breakers
Application: High Voltage Power Transmission And Distribution Systems Gas Purity: 99.9%
Size: Standard Operating Temperature: -40°C To +60°C
Highlight:

Custom sf6 gas management

,

sf6 gas management Connector

,

gas inflation system Connector

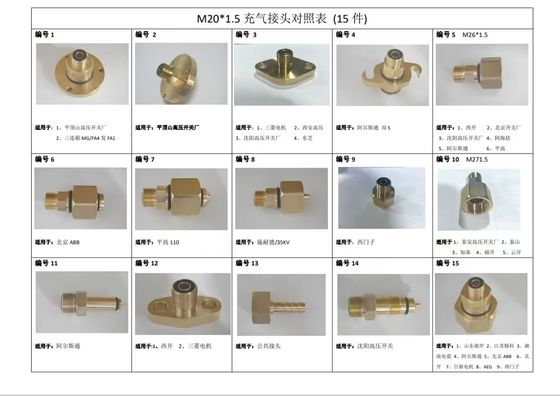

Industrial Inflatable Connector Kit (15-Piece) – Custom OEM Solutions for Gas Systems

Product Overview

This 15-unit connector ensemble offers modular solutions for industrial gas networks, engineered to integrate with premium OEM brands: ABB, Schneider Electric, Siemens, Alstom Grid, and Mitsubishi Electric. Featuring pressure-optimized designs with Viton®-sealed interfaces, the kit includes straight/elbow/tee connectors, adapters, and spare seals for rapid installation in complex piping systems. Customization options cover material grades, thread standards, and high-pressure ratings up to 20 MPa.

Configuration Matrix

Component Type Qty Specifications
Straight Connectors 5 DN10-DN20, 304 stainless steel
90° Elbow Connectors 4 DN15-DN25, 10MPa pressure rating
Tee Junction Connectors 3 DN12-DN20, leak-proof design
Threaded/Quick Adapters 2 NPT/BSP convertible, M20×1.5 metric
Sealing Kit 1 Spare Viton® O-rings & NBR gaskets

OEM Compatibility

Manufacturer Equipment Applications
ABB GIS switchgear, power transformers
Schneider Electric Medium-voltage switchgear
Siemens AG Power distribution systems
Alstom Grid High-voltage substation components
Mitsubishi Electric Switchyard control equipment

Technical Specs Table

Parameter Standard Specs Custom Options
Material 304 stainless steel 316 SS / brass C36000 / PTFE-lined
Threads Metric M20×1.5 NPT / BSPP / BSPT / DIN 2999
Pressure Rating 10 MPa Up to 20 MPa (high-pressure)
Temp Range -20°C to +80°C -40°C to +120°C (special coating)
Leak Test Bubble test @ 1.5x working pressure Helium mass spec. (1×10⁻⁹ mbar·L/s)

Custom Engineering

  • Material Options: Corrosion-resistant alloys for marine/chemical use
  • Thread Conversion: DIN 477 to JIS B0209, etc.
  • High-Pressure Design: Hydrogen/natural gas applications up to 20 MPa

Tag:

sf6 management,

gas inflation system,

gas cylinder converter
