ODM DN10-DN20 SF6 Accessories Inflatable Connector Set

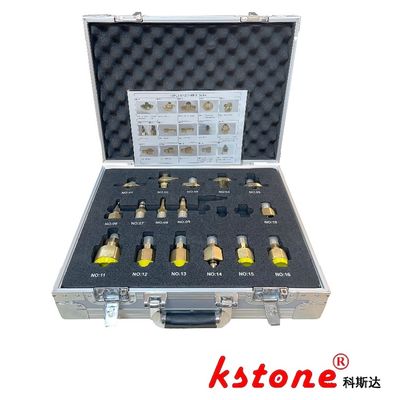

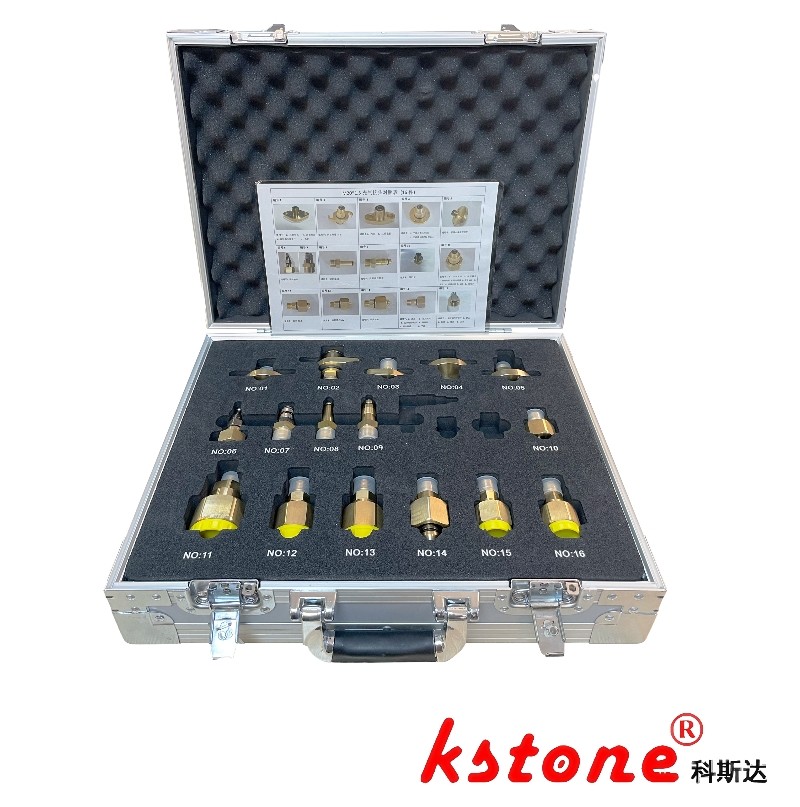

Large Image : ODM DN10-DN20 SF6 Accessories Inflatable Connector Set

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	Inflatable connector, 15 piece set

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Solubility In Water:	Not Soluble	Vapor Pressure:	Not Applicable
Odor:	Odorless	Flash Point:	Not Applicable
Density:	6.17 G/L	Color:	Colorless
Ph:	Not Applicable	Melting Point:	-50.8 °C
Highlight:	ODM SF6 Accessories , SF6 Accessories Inflatable Connector , OEM sf6 connector

Industrial Inflatable Connector Set (15-Piece) – Customizable for OEM Equipment

Product Synopsis

This 15-unit connector kit delivers versatile solutions for industrial gas networks, engineered to integrate with leading OEM brands: Beijing ABB, Schneider, Siemens, Alstom, and Mitsubishi Electric. Featuring leak-proof designs for rapid installation, the set includes diverse connector types to address complex piping requirements. Customization services are available for material grades, thread standards, and pressure ratings.

Configuration Breakdown

Component Category	Quantity	Specifications
Straight Connectors	5 pcs	DN10-DN20, 304 stainless steel
90° Elbow Connectors	4 pcs	DN15-DN25, pressure-optimized design
Tee Junction Connectors	3 pcs	DN12-DN20, 10MPa rated
Threaded/Quick Adapters	2 pcs	NPT/BSP convertible interfaces
Sealing Component Kit	1 set	Spare O-rings (Viton®/NBR) & gaskets

OEM Compatibility Chart

Manufacturer	Applicable Equipment Categories
Beijing ABB	GIS switchgear, power transformers
Schneider Electric	Medium-voltage switchgear assemblies
Siemens AG	Power distribution networks
Alstom Grid	High-voltage substation components
Mitsubishi Electric	Switchyard control systems

Technical Specifications Table

Parameter	Standard Configuration	Customizable Options
Material Base	304 stainless steel	316 SS / brass C36000 / PTFE-lined alloys
Thread Standards	Metric (M20×1.5)	NPT / BSPP / BSPT / DIN 2999
Pressure Rating	10 MPa (standard)	Up to 20 MPa (high-pressure variant)
Temperature Range	-20°C to +80°C	-40°C to +120°C (special coating)
Leak Test Standard	Bubble test @ 1.5x working pressure	Helium mass spec. (1×10⁻⁹ mbar·L/s)

Custom Engineering Services

Material Engineering: Select from corrosion-resistant alloys for marine/chemical environments
Thread Adaptation: Convert between international standards (e.g., DIN 477 to JIS B0209)
Pressure Optimization: High-pressure designs for hydrogen/natural gas applications
