Industrial SF6 Accessories Gas Inflation Pressure Management System

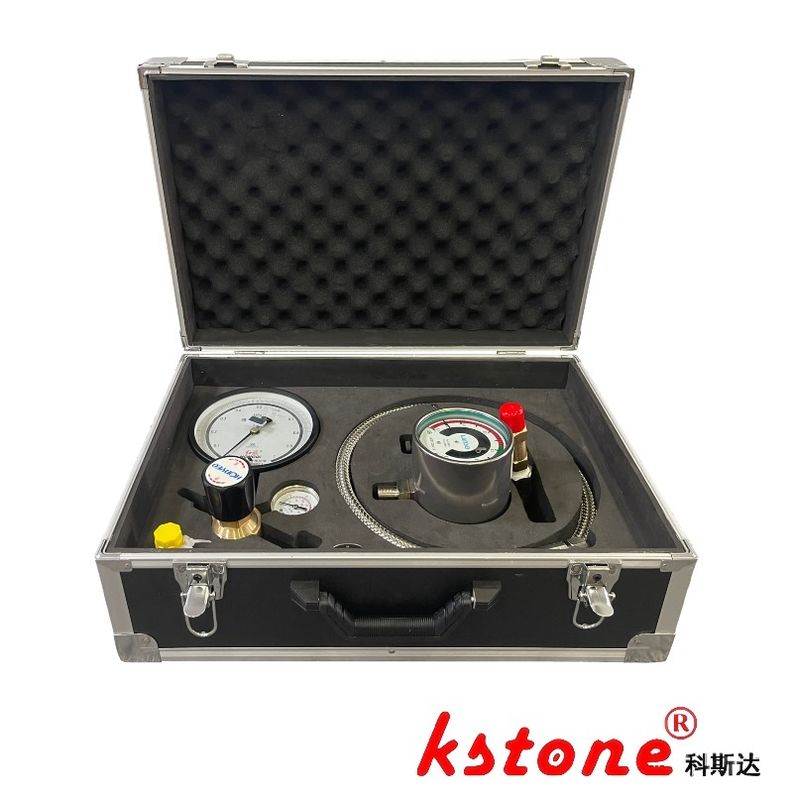

Large Image : Industrial SF6 Accessories Gas Inflation Pressure Management System

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000High-Precision SF6 Inflation System KSCQ-5G – Pressure Management Solution Operational Principle This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS equipment via a pressure regulator, reinforced hose, and density
Model Number:	KSCQ-5G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Features:	Durable, Leak-proof, Easy To Install	Product Weight:	1.5 Lbs
Product Certification:	CE, RoHS	Country Of Origin:	China
Package Contents:	1 X SF6 Accessories	Weight:	1.5 Kg
Application:	Industrial, Electrical, And Scientific Use	Usage:	For Use With SF6 Gas Equipment
Highlight:	Management SF6 Accessories , Industrial SF6 Accessories , Industrial sf6 gas pressure gauge

High-Precision SF6 Inflation System KSCQ-5G – Pressure Management Solution

Operational Principle

This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS equipment via a pressure regulator, reinforced hose, and density relay. Featuring a 0.25-class accuracy pressure gauge and selectable safety valves (5.5bar/9.8bar), it ensures precise pressure regulation and overpressure protection for industrial gas charging applications.

System Configuration

Component	Specification
Adjustable Pressure Regulator	1 unit (0-10 bar output range)
High-Precision Pressure Gauge	0.25-class accuracy, 0-10 bar scale
Safety Relief Valve	Selectable: 5.5bar (79.8psi) or 9.8bar (142psi)
DN8 Reinforced Inflation Hose	5m length, 15bar working pressure
SF6 Density Relay	Auto shut-off at preset density levels
Impact-Resistant Case	Foam-lined, 600×400×250mm dimensions

Technical Parameters Table

Parameter	Standard Value
Model Code	KSCQ-5G
Application Scope	GIS system SF6 gas charging
Gauge Accuracy Class	0.25 (±0.025bar full-scale)
Safety Valve Options	5.5bar / 9.8bar (dual variants)
Hose Pressure Rating	15bar (217.5psi) maximum
Operational Temperature	-20°C to +60°C
Case Protection Level	IP54 dust/water resistance

Safety & Performance Features

Dual-Layer Protection: Pressure regulator with integrated safety valve prevents overcharging
Industrial-Grade Components: Reinforced hose and corrosion-resistant fittings for longevity
Precision Measurement: 0.25-class gauge enables density control within ±1% tolerance
