High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance [KSLH-110Y/160-1200WZ]

Large Image : High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance [KSLH-110Y/160-1200WZ]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-110Y/160-1200WZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Features:	High Efficiency, Low Noise, Easy Operation	Application:	Gas Recovery
Vacuum Degree:	≤5Pa	Main Compressor:	110m³/h, Oil-free
Negative-Pressure Compressor:	160m³/h	Ultimate Vacuum:	≤5Pa
Pipeline Vacuum Pump:	63m³/h
Highlight:	r134A SF6 Recovery System , 1200L SF6 Recovery System , 1200L portable r134a recovery machine

High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor | 1200L Storage | GIS/GIL Maintenance KSLH-110Y/160-1200WZ

Industry Standard Leadership

As the principal drafter of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions define industrial benchmarks. SF6 recovery equipment is custom-engineered with configurable features: negative-pressure recycling, oil-free compressionOil (optional), variable storage capacities, and fully automated operations.

System Overview

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h oil-free main compressor, 160m³/h negative-pressure compressor (0.1MPa suction), 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table

Component	Specification
Main Compressor	110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor	160m³/h, 0.1MPa suction pressure
Pipeline Vacuum Pump	63m³/h, ≤5Pa ultimate vacuum
Liquid Storage Tank	1200L horizontal, 304 stainless steel(optional),

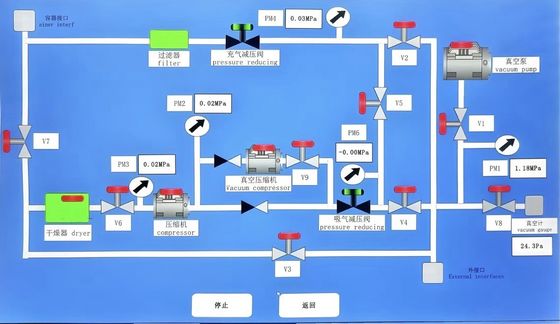

Control System	PLC-based with HMI touchscreen
Filtration Module	0.1μm particle filter, 3ppm moisture trap
Power Supply	3Φ 380V 50Hz, 45kW total power

Custom Configuration Options

Compression Types: Oil-free / lubricated compressor selections
Storage Capacity: 500L–2000L tank volume variants
Functional Add-ons: Adsorption dehydration , gas purity analyzer
Mobility Solutions: Trailer-mounted

Compliance & Certifications

Compliant with DL/T1353-2024 and IEC 62271-403 standards
Rated for GIS/GIL systems up to 1100kV voltage class
ISO 14001:2015 environmental management certified
