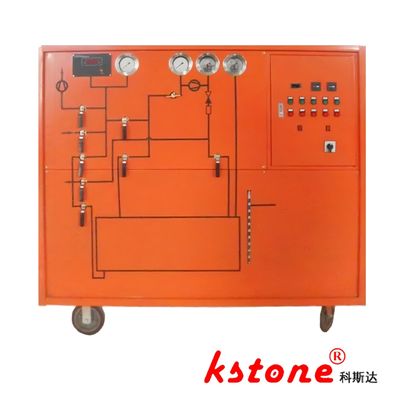

Manual Operation Basic SF6 Recovery Device Working Voltage Three-phase 230V 60Hz [KSLH-18Y-54-100]

  • Manual Operation Basic SF6 Recovery Device Working Voltage Three-phase 230V 60Hz [KSLH-18Y-54-100]
Place of Origin shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KSLH-18Y54100
Minimum Order Quantity 1
Price &12000-15000
Packaging Details Fumigation wooden box
Delivery Time 10 work days
Supply Ability 1000set/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Freeze Liquefied, Air-cooled, Hand-pushed Mobile Working Temperature -10 ℃~40 ℃
Initial Pressure 0.8 MPa Recovery Final Pressure ≤ 0.053 MPa
Time Required For 1m³ Volume ≤ 0.5 H/m³ Annual Leakage Rate ≤ 1%
SF6 Moisture Content After Recycling ≤ 60 PPM/V Gas Purity And Oil Content ≤ 10 PPM/G
Highlight

manual operation SF6 recovery device

,

60Hz SF6 recovery device

,

Basic SF6 Recovery Device
Leave a Message
Product Description
Manual operation, basic SF6 recovery device, working voltage three-phase 230V 60Hz
KSLH-18Y54100 (23060Hz)

Suitable for single-phase 110V regions such as the United States, Canada, Mexico, Cuba, Panama, Jamaica, Bolivia, Ecuador, etc

Suitable for 60Hz

1.Main technical performance parameters
Performance Parameters of the Device Details
Type Freeze liquefied, air-cooled, hand-pushed mobile
Working environment temperature -10 ℃~40 ℃
Initial pressure (MPa) 0.8
Recovery final pressure (MPa) ≤ 0.053
Time required for 1m³ volume (h/m³) * ≤ 0.5
Initial pressure (Pa) ≤ 133
Inflation final pressure (MPa) 0.7
Time required for 1m³ volume (h/m³) ≤ 0.2
Vacuumizing from 0.1MPa to 133Pa takes time (h/m³) ** ≤ 1.0
Ultimate vacuum (Pa) ≤ 10
Vacuum maintained at 133Pa for 24 hours with an increase value (Pa) ≤ 400
Annual leakage rate ≤ 1%
SF6 moisture content after recycling (PPM/V)*** ≤ 60
Gas purity and oil content (PPM/G) ≤ 10
Storage method Liquid
Storage pressure (MPa) 8
Capacity (L) 100
Gas storage capacity (kg) 100
Drying filter regeneration method Vacuum heating activation regeneration
2. Power supply three-phase four wire system 3 Φ 230V
Parameter Specification
Total power (kW) ≤ 10
Noise dB (A) ≤ 75
3. Main component performance parameters
Parameter Details
Form Semi enclosed
Theoretical displacement 18 m³/h
Maximum exhaust pressure 3.5 MPa
Allowable exhaust pressure 3.0 MPa
SF6 compressor
Minimum allowable suction pressure 53 KPa
Maximum allowable suction pressure 1.0 MPa
Maximum exhaust temperature 130 ℃
Power 2.2 kW
Power supply 3 Φ 230V 60Hz
Extraction rate 15 L/s
Vacuum pump ultimate vacuum ≤ 15 Pa
Lubricating oil HD25 refrigeration oil
Container
Category 2
Design pressure 8 MPa
Design temperature 45 ℃
Capacity 100 L
Storage capacity 100 kg
4. Transportation parameters
Item Details
Packaging Fumigation wooden box
Dimensions 1600 * 830 * 1200
Gross weight 570kg
