Small Oil-free Compressor, Vacuum Recovery, Fully Automatic Control [KSLH-6WY20-54-300Z]

  • Small Oil-free Compressor, Vacuum Recovery, Fully Automatic Control [KSLH-6WY20-54-300Z]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-6WY20-54-300Z
Minimum Order Quantity 1
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 60 days
Payment Terms T/T
Supply Ability 10 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Gas Recovery Equipment Ambient Temperature -10℃～40℃
Recycling Initial Pressure: ≤30 Bar Final Pressure: ≤-0.09 MPa Inflation Initial Pressure: ≤133 Bar Final Pressure: ≤10 MPa
Ultimate Vacuum ≤5 Pa Annual Leakage Rate Rate ≤0.5%
Recycled SF6 Gas Purity Moisture Content: ≤60 (PPM/V) Oil Content: 0 (PPM/G) Liquid Pressure 39 Bar
Volume 350 L Liquid Storage Capacity 350 Kg
Highlight

1.5kW sf6 gas recovery equipment

,

Recycling sf6 gas recovery equipment

,

Sulfur Hexafluoride sf6 gas recycling
Leave a Message
Product Description

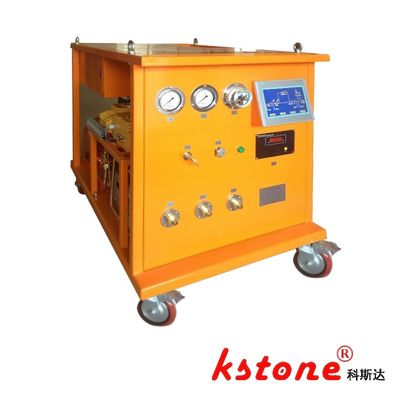

Small Oil-free Compressor, Vacuum Recovery, Fully Automatic Control KSLH-6WY20-54-300Z

As a drafting unit for the industry standard "DL/T1353 - 2024 Technical Specification for Sulfur Hexafluoride Treatment System" issued by the National Energy Administration of China, our company specializes in customized SF6 recovery devices. These devices are classified by functions such as recycling, vacuuming, and inflation, with configurations tailored to customer needs—including negative pressure recycling, oil - free compressors, compressor speed, liquid storage tank capacity, freezing functions, moisture/particle filtration, and full - automation. Below is an introduction to a compact fully automatic recycling device featuring negative pressure recovery, oil - free operation, and integrated suction - inflation capabilities (Model: KSLH - 6WY20 - 54 - 300Z), equipped with a 6m³/h oil - free high - pressure compressor, 20m³/h negative pressure compressor, 54m³/h vacuum pump, 300L storage tank, and fully automated operation.

Main Technical Specifications

1. Device Performance Parameters
Parameter
Description
Type
High - pressure liquefaction, air - cooled, hand - push mobile
Ambient Temperature
-10℃～40℃
Recycling
Initial pressure: ≤30 bar Final pressure: ≤-0.09 MPa
Inflation
Initial pressure: ≤133 bar Final pressure: ≤10 MPa
Ultimate Vacuum
≤5 Pa
Annual Leakage Rate
≤0.5%
Recycled SF6 Gas Purity
Moisture content: ≤60 (PPM/V) Oil content: 0 (PPM/G)
Storage Container
Storage method: Liquid Pressure: 39 bar Volume: 350 L Liquid storage capacity: 350 kg Liquefaction method: High - pressure liquefaction
Dry Filter Regeneration
Vacuum heating activation regeneration
Power Supply
3Φ 380V 50HZ
Total Power
≤7 (kW)
Noise Level
≤75 A (dB)
Equipment Weight
≤1000 kg



2. Main Component Performance Parameters
Component
Parameter
Value
SF6 Compressor
Form
Air - cooled piston

Theoretical Displacement
6 m³/h

Maximum Exhaust Pressure
50 bar

Allowable Exhaust Pressure
47 bar

Minimum Suction Pressure
-5 mbar

Maximum Suction Pressure
3 bar

Maximum Exhaust Temperature
130℃

Lubricant
None

Power
2.2 kW
Vacuum Pump
Pumping Speed
63 m³/h

Ultimate Pressure
≤0.1 mbar

Power
2.2 kW
Storage Container
Category
TYPE TWO

Design Pressure
39 bar

Design Temperature
100℃

Capacity
350 L

Liquid Storage Capacity
350 kg

Working voltage, storage tank size, etc. are optional.
