DN20, Vacuum Unit, SF6 Gas Refilling Device, 220V 50Hz, 300L/S [KSCZ-1080/300]

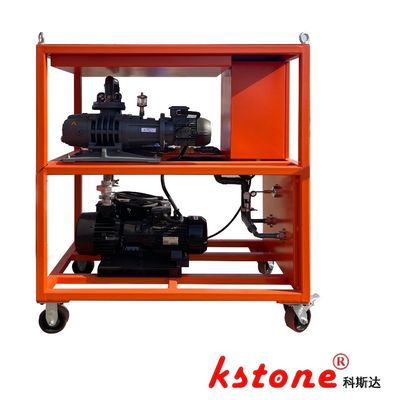

Large Image : DN20, Vacuum Unit, SF6 Gas Refilling Device, 220V 50Hz, 300L/S [KSCZ-1080/300]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-1080/300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25000-$30000
Packaging Details:	Wooden Box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Pump System:	300 M³/h Front-stage Pump	Valve Connections:	M27 Threaded Ports For Multi-channel Integration *2
Ultimate Vacuum:	6×10⁻² Pa	Anti-Backflow Protection:	Oil-based Design For Contamination Prevention
Pump Brand Options:	Leybold, Busch, Or Made-in-China Models
Highlight:	DN20 sf6 gas refilling device , 380V sf6 gas refilling device , sf6 management Device

High-Efficiency Large Vacuum System - Model KSCZ-1080/300

Applicable voltage:220v50Hz

Designed for industrial scenarios requiring extreme vacuum conditions, the KSCZ-1080/300 integrates a 1080 m³/h Roots pump and 300 m³/h front-stage pump. Its anti-backflow oil mechanism prevents contamination, while dual M27 threaded ports enable multi-channel pumping. The system achieves an ultimate vacuum of 6×10⁻² Pa, operating on 380V AC 50Hz power. Standard accessories include three 10m DN20 pipelines with M36 threads. Customers can choose premium pumps from Leybold/Busch or cost-effective Chinese models, with customizable pipeline length and quantity to fit project needs.

Technical Parameters Table

Parameter	Description
Model	KSCZ-1080/300
Pump Configuration	1080 m³/h Roots pump + 300 m³/h front-stage pump
Anti-Backflow Protection	Oil-based design to prevent contamination
Valve Ports	2× M27 threaded ports for multi-channel operation
Ultimate Vacuum	6×10⁻² Pa
Power Supply	380V AC, 50Hz
Standard Accessories	3×10m DN20 pipelines (M36 threads)
Pump Brand Options	Leybold, Busch, or Made-in-China models
Pipeline Customization	Adjustable quantity and length according to requirements
