Mobile Vacuum Dilo SF6 Gas Cart ,63kg, DN8mm, For Gas Refilling [KSCZ-15C]

Large Image : Mobile Vacuum Dilo SF6 Gas Cart ,63kg, DN8mm, For Gas Refilling [KSCZ-15C]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-15C

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$3500
Packaging Details:	Wooden Box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Vacuum Pump:

15m³/h

Pointer Display Table:

0 MPa - 1.6 MPa

Vacuum Gauge Range:

0.1 - 10000 Pa

Cylinder Weighing Range:

0 - 150 Kg

Highlight:

mobile dilo sf6 gas cart

20mm dilo sf6 gas cart

20mm sf6 cart

KSCZ-15C SF6 Vacuum Inflating Trolley - 15m³/h Pump, Stainless Hose, Pressure Regulator for Gas Chamber Charging

SF6 Vacuum Inflating Trolley – KSCZ-15C model features a 15m³/h vacuum pump, stainless steel armored hose, and pressure regulator for mobile gas charging. Designed for SF6 gas refilling in switchgear chambers, this trolley doubles as a portable cylinder carrier with integrated stainless steel hosing for leak-proof connections. It is equipped with an inflation pressure regulator and cylinder weighing system, ensuring precise gas management during charging operations. The 15m³/h vacuum pump enables efficient evacuation, while the mobile design allows easy deployment across industrial sites.

Basic Configuration:

Pointer Display Table: 0 MPa - 1.6 MPa

Vacuum Gauge Range: 0.1 - 10000 Pa

Cylinder Weighing Range: 0 - 150 kg

SF6 Regulator Outlet Pressure: -1 - 1.6 MPa

Stainless Steel Armored Hose: DN8/6m, 1 piece

SF6 Cylinder Connector: G5/8

Cylinder Connection Hose: DN8/0.3m stainless steel armored hose

Optional Add-ons:

Cylinder Heating System (removable)

Enhanced Cylinder Weighing Module (removable)

Technical Specifications:

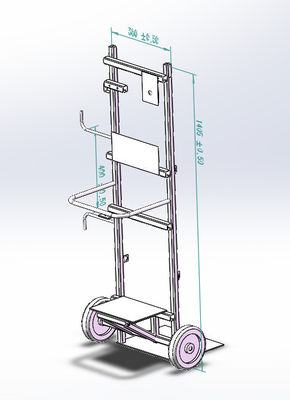

Dimensions: 600×570×1405 mm (L×W×H)

Net Weight: 62 kg

Technical Parameter Table


			Parameter

			Description

			Model

			KSCZ-15C

			Pump Capacity

			15m³/h vacuum pump

			Hose Type

			DN8 stainless steel armored hose (6m length)

			Pressure Regulation Range

			-1 to 1.6 MPa (outlet)

			Vacuum Gauge Range

			0.1 - 10000 Pa

			Cylinder Weighing Range

			0 - 150 kg

			Connector Type

			G5/8 for SF6 cylinders

			Dimensions

			600×570×1405 mm

			Weight

			62 kg

			Optional Features

			Cylinder heating & advanced weighing systems
