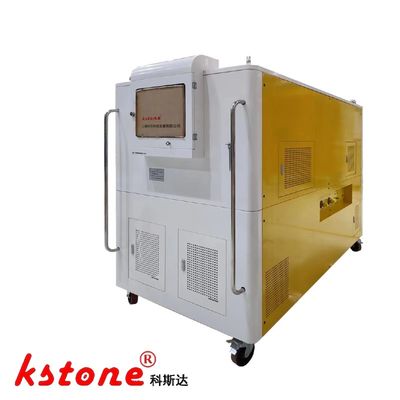

Mixing C4F7N Series Instruments With CO2 And O2 C4 Ratio Between 3-12% [KSC4-C4-CO2-O2]

Used for mixing C4F7N with CO2 and O2, with the ratio of c4 is between 3-12%

Main Component Performance Parameters

1. All pressures are gauge pressures.
2. Temperatures are measured at the compressor outlet.
3. Power ratings are for continuous operation.
4. Compressors are designed for C4, CO₂, and O₂ gas mixtures.

Features:

• Oil-free compressor for gas mixing to prevent contamination.
• Dedicated interface for external gas mixture purity detector, enabling real-time ratio monitoring.
• Self-sealing valve interfaces on all gas connections to minimize leaks.
• Multi-cylinder connection kit included for simultaneous gas supply from multiple cylinders.
• Built-in vacuum pumping system to reduce internal contamination before gas charging.
• Compact design optimized for both workshop and field use:
  • Length ≤2.1m, Width ≤1.2m, Height ≤2m.

other:

On December 20, 2022, 3M announced that it will cease production of 58 Per/polyfluoroalkyl substances (PFAS) products, including perfluoroisobutyronitrile (C4F7N, 3M Novec 4710) and perfluoropentanone (C5F10O, 3M Novec 5110), by the end of 2025 to reduce or eliminate the impact of PFAS on climate, environment, and ecological health.

KSTONE  is a leading enterprise in China that develops C4 and C5 related instruments and equipment;and has precise cooperation with 3M and  chinese C4 or C5 manufacturers ;
