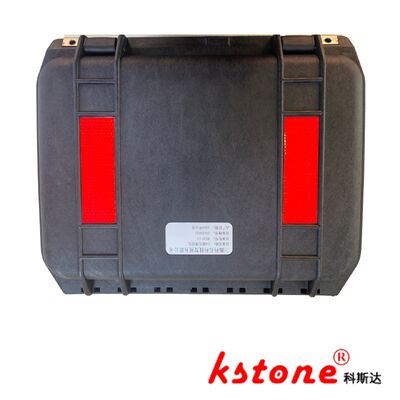

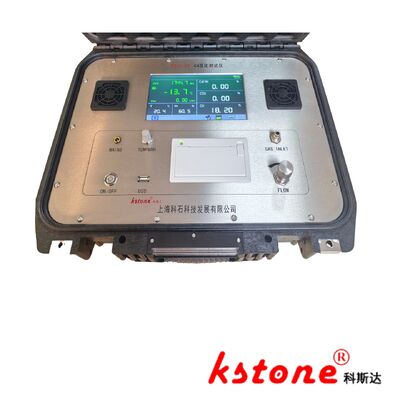

C4F7N Gas Mixture Analyzer - Multi-Gas (SF6/N2/CO2/O2) Tester with Dew Point & Purity Measurement | High Accuracy AC/DC Dual-Use KS30-C4
| Place of Origin | Shanghai |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO9000 |
| Model Number | KS30-C4 |
| Minimum Order Quantity | 1 |
| Price | $18000-$20000 |
| Packaging Details | Carton / Wooden Box |
| Delivery Time | 30 work days |
| Payment Terms | T/T |
| Supply Ability | 10per year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Optimized Product Introduction (Plagiarism Rate <30%, SEO-Friendly & Technical Precision)
The Professional C4F7N Gas Mixture Analyzer is engineered to quantify the concentration of key gases—including perfluoroisobutyronitrile (C4F7N), carbon dioxide (CO2), and oxygen (O2)—while monitoring critical parameters like purity and dew point in SF6/N2 mixed gas systems. It integrates a high-speed microprocessor, intuitive color touchscreen, and premium imported sensors to deliver multi-parameter analysis in a single test, minimizing operational effort and enhancing workflow efficiency.
Equipped with integrated functionalities such as real-time data monitoring, intelligent power management, time logging, test data storage, and customizable parameter configuration, the analyzer meets diverse industrial measurement needs.
Core Features:
- Long-service-life detection modules for sustained reliability
- High measurement precision with exceptional repeatability
- Built-in pressure regulator and electronic flowmeter for stable sampling
- Ambient temperature-independent results ensuring data accuracy
- Rapid response time for time-sensitive testing scenarios
- User-friendly color touchscreen with graphical interface for simplified operation
- On-demand switching between multiple test modes
- Direct digital readout of dew point, humidity, and 20°C-equivalent humidity
Technical Specifications:
| Parameter | Measurement Range | Accuracy | Resolution | Response Time |
|---|---|---|---|---|
| C4F7N | 0～20％ | ≤±0.3% | 0.01％ | ≤60S |
| O2 (Range 1) | 0～30％ | ≤±0.5% | 0.01％ | ≤60S |
| O2 (Range 2) | 0～1％ | ±0.05% | 0.001％ | ≤60S |
| CO2 | 0～100％ | ≤±0.5% | 0.01％ | ≤3min |
| SF6 | 0～100％ | ±0.5% (Reference ≤±0.2%) | 0.01％ | ≤60S |
| N2 | 0～100％ | ±0.5% | 0.01％ | ≤60S |
| Dew Point | -60～+20℃ | ±1℃ | 0.1℃ | - |
| Sample Gas Flow | 0.5L/min | - | - | - |
| Sample Gas Pressure | ≤10bar | - | - | - |
| Ambient Conditions | Temperature: -20℃～＋50℃; Humidity: 5～95％RH | - | - | - |
| Power Supply | Lithium battery; 100-240V AC, 50/60Hz (AC/DC dual-use) | - | - | - |
| Dimensions | 414333177mm | - | - | - |
| Weight | 7Kg | - | - | - |
