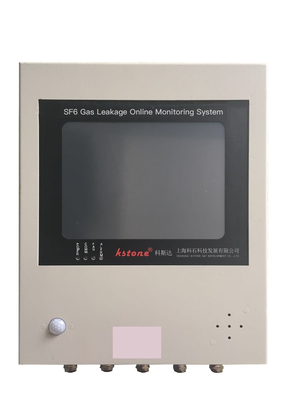

SF6 Online Leak Alarm System KS100 - Monitors SF6, O2, Temp & Humidity With Alarm & Remote Monitoring KS100

SF6 Online Leak Alarm System KS100 - Monitors SF6, O2, Temp & Humidity With Alarm & Remote Monitoring KS100

1,Oxygen content monitoring and display function in the environment.

2,SF6 gas content monitoring and display function in the environment.

3,Temperature and humidity monitoring and display function in the environment.

4,SF6 gas content exceeding standard alarm function, hypoxia alarm function.

5,Timing exhaust function, manual forced exhaust function, hypoxia or excessive SF6 content, forced exhaust function.

6,Real-time display of various parameters.

7,Historical data query function.

8,The original daily automatic zero-point calibration function can automatically overcome drift and false alarm.

9,The patrol interval can be adjusted by users. Suspicious detection point automatically enhances tracking function.

10,When alarm occurs, the fan and sound-light alarm are automatically turned on.

11,Users can adjust the alarm parameters of SF6 and O2.

12,Support RTU telemetry and telecommunication function.

13,Massive alarm data recording and storage function, long life design.

14,Ultra-large color LCD display, user-friendly interface.

15,Wide-voltage power supply design 85-265 VAC, anti-wave swimming and lightning stroke function.

16,Human body induction, automatic start fan or voice system.

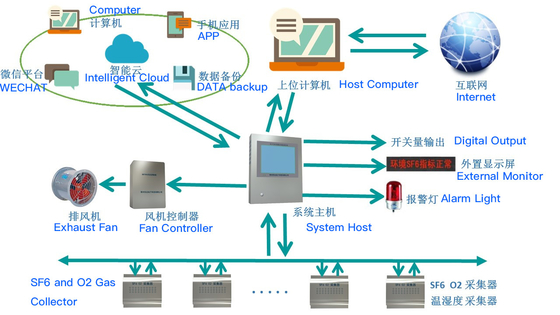

17,Select to connect with the upper computer to realize remote monitoring and record events and historical events.

Main technology

★ The detection range of SF6 concentration is 0-1500ppm or customized.

★Sensitivity of SF6 gas detection: +5% set value.

★ The detection range of O2 concentration is 0～25%.

★ Sensitivity of O2 gas detection:＜0.5%.

★ Hypoxia alarm threshold: 18.0% (adjustable).

★ Alarm output: Relay empty contact output, can be connected with RTU, while supporting RS485 alarm output.
