Automatic SF6 Recycling System for GIS/GIL

  • Automatic SF6 Recycling System for GIS/GIL
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-110Y/160-1200WZ
Minimum Order Quantity 1
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 10 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Efficiency, Low Noise, Easy Operation Application Gas Recovery
Vacuum Degree ≤5Pa Main Compressor 110m³/h, Oil-free
Negative-Pressure Compressor 160m³/h Ultimate Vacuum ≤5Pa
Pipeline Vacuum Pump 63m³/h
Leave a Message
Product Description
Automatic SF6 Recycling System for GIS/GIL

As the drafter of China's DL/T1353-2024 technical standard for SF6 treatment systems, Shanghai Kstone S&T Development Co., Ltd. leads the industry with benchmark-setting SF6 recovery solutions. All our equipment is custom-built to match client requirements, covering negative-pressure recycling, storage tank capacity customization, and fully automated operational design.

Product Overview

The KSLH-110Y/160-1200WZ is a high-capacity automatic SF6 recycling system, specially engineered for 550kV insulation pot withstand voltage testing scenarios. It integrates a full set of high-performance core components, including a 110m³/h main compressor, 160m³/h negative-pressure compressor, 63m³/h pipeline vacuum pump and 1200L horizontal external liquid storage tank, realizing efficient and professional SF6 gas management for high-voltage electrical equipment such as GIS and GIL.

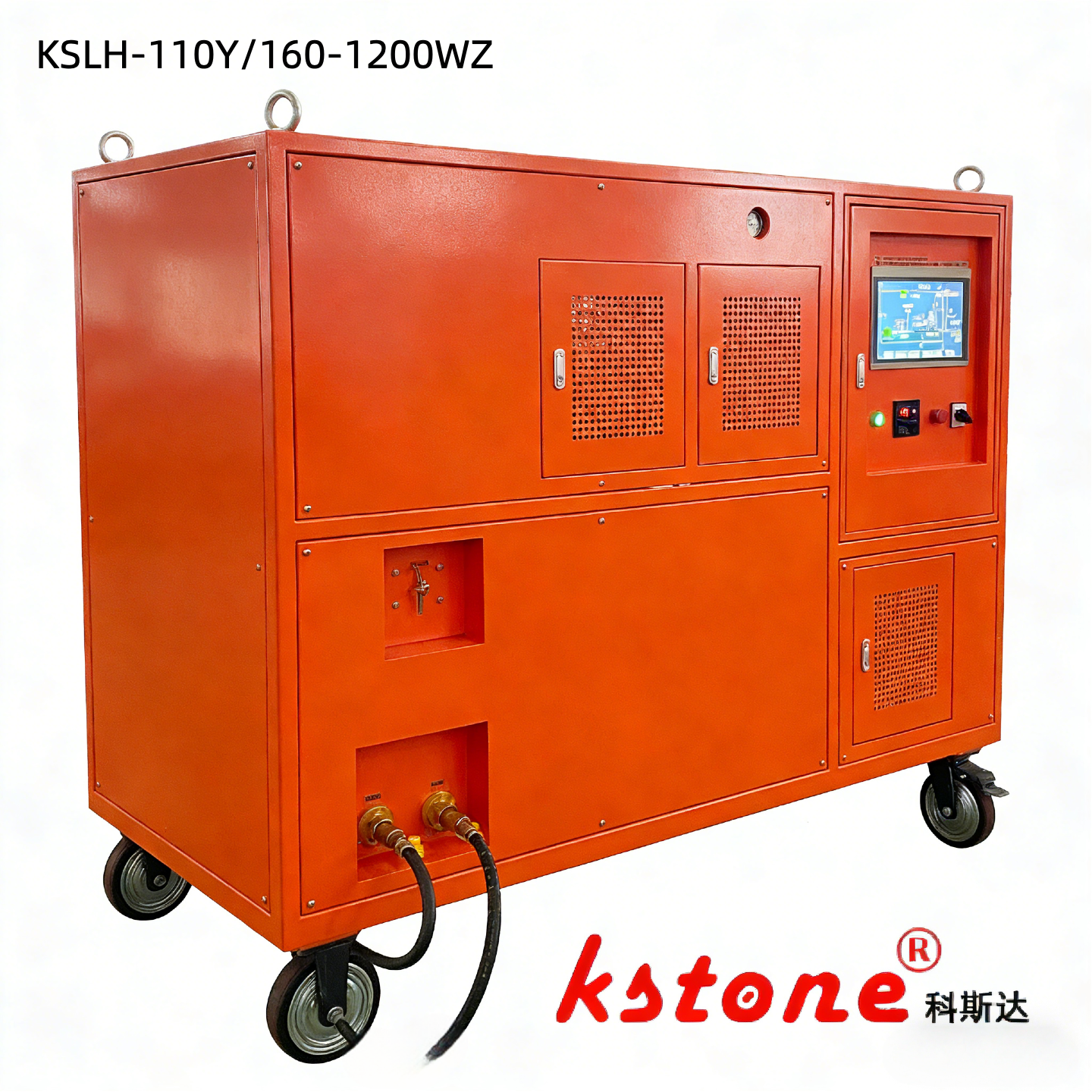

Automatic SF6 Recycling System for GIS/GIL 0

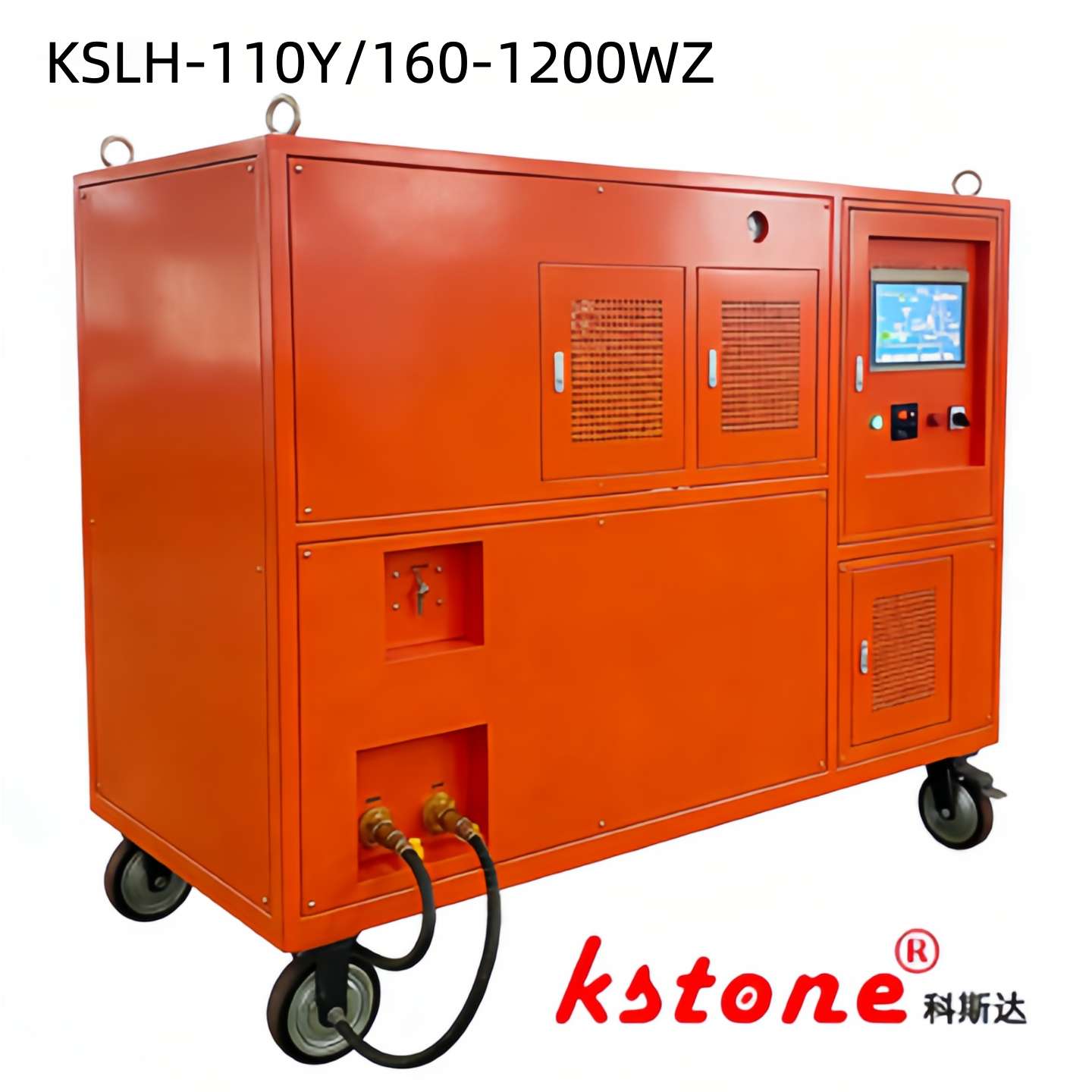

Automatic SF6 Recycling System for GIS/GIL 1

Automatic SF6 Recycling System for GIS/GIL 2

Core Technical Specifications
Component Specification
Main Compressor 110m³/h rated capacity
Negative-Pressure Compressor 160m³/h capacity, 0.5MPa suction pressure
Pipeline Vacuum Pump 63m³/h capacity, ultimate vacuum ≤5Pa
Liquid Storage Tank 1200L horizontal type, carbon steel material
Control System PLC-based full automation with HMI operation
Filtration System 0.1μm precision particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, total load 45kW
Flexible Customization Options
  • Compression Configurations: Two options of oil-free and lubricated compressors to adapt to different application scenarios
  • Storage Capacity: Customizable tank volume from 500L to 2000L, meeting diverse on-site storage needs
  • Functional Add-ons: Optional filtration dehydration module, as well as gas moisture and purity testing function
  • Mobility Options: Trailer-mounted design available for mobile operation requirements of on-site construction
Complete Compliance with Industry Standards
  • Fully compliant with DL/T1353-2024 (China) and IEC 62271-403 international technical standards for SF6 treatment
  • Adaptable to GIS/GIL electrical systems of up to 1100kV voltage class, with wide application range
  • In line with ISO 14001 environmental management system standards, realizing eco-friendly SF6 gas recovery and treatment
Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
