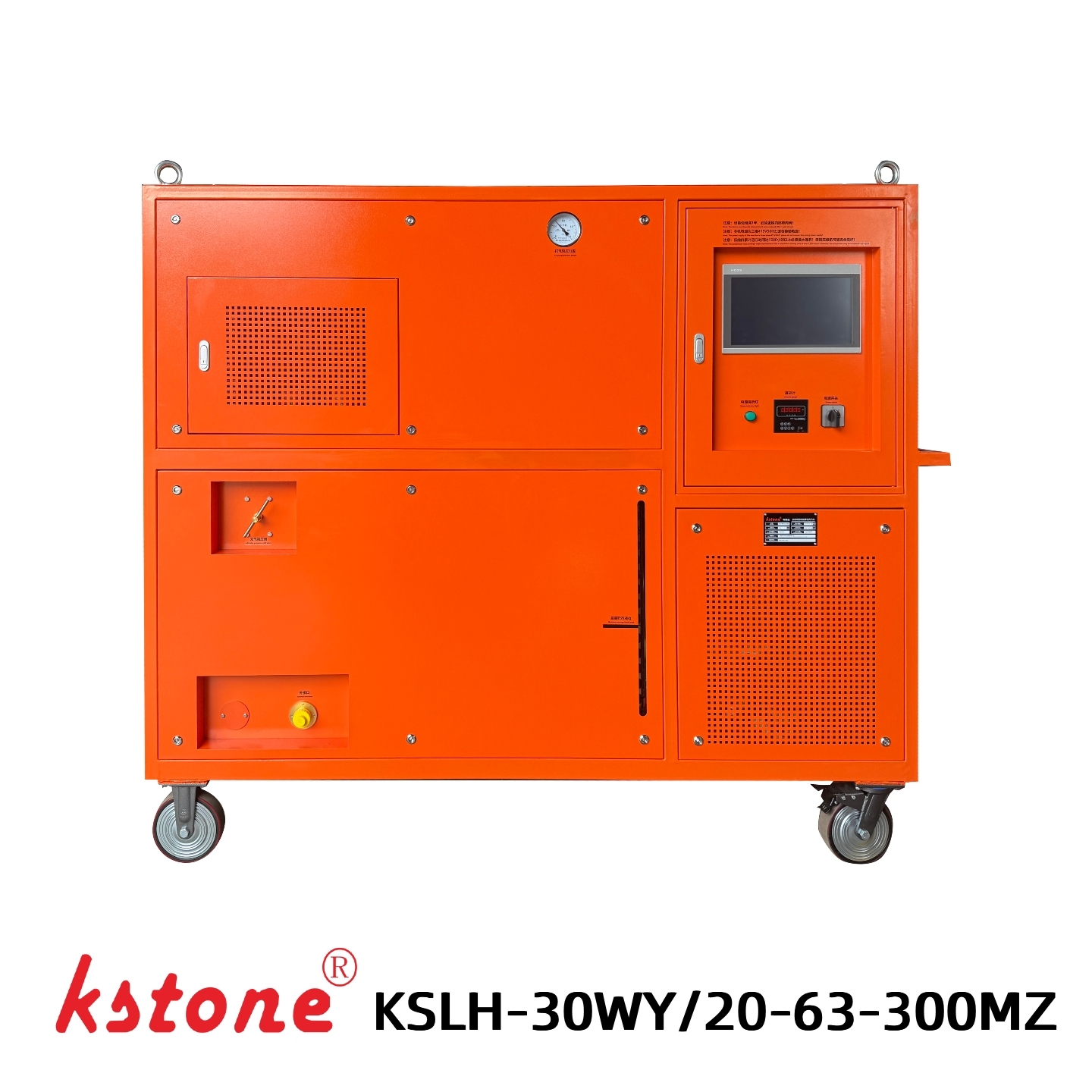

Fully Automatic SF₆ Service Cart For Recovery, Vacuuming & Charging
| Place of Origin | SHANGHAI |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO-9001 |
| Model Number | KSLH-30WY/20-63-300MZ |
| Document | SF6 Recovery KSLH-30WY:20-6...MZ.pdf |
| Minimum Order Quantity | 1 |
| Price | $40000-$50000 |
| Packaging Details | Wooden box/ Carton box |
| Delivery Time | 45 days |
| Payment Terms | T/T |
| Supply Ability | 100 units per year |
Product Details
| Recovery Initial Pressure | 0.8 MPa | Recovery Final Pressure | ≤1 KPa |
|---|---|---|---|
| Recovery Time Per 1 M³ | ≤0.3 H/m³ | Ultimate Vacuum | ≤10 Pa |
| Vacuum Retention | ≤400 Pa Rise After 24 H From 133 Pa | Storage Vessel Volume | 300 L |
| Highlight | fully automatic SF6 service cart,SF6 recovery system with vacuuming,SF6 charging cart for service |
||
Product Description
Fully Automatic SF₆ Service Cart for Recovery, Vacuuming & Charging – KSLH-30WY/20-63-300MZ
Integrated SF₆ Recovery, Vacuuming, Charging, Storage & Gas Drying System with 300 L Storage Vessel
Product Overview
The KSLH-30WY/20-63-300MZ Fully Automatic SF₆ Service Cart is an integrated SF₆ gas handling system designed for the recovery, vacuuming, charging, storage, cylinder filling, and drying of SF₆ gas during the manufacturing, installation, commissioning, and maintenance of SF₆ electrical equipment.
The system adopts a high-pressure liquefaction principle. During SF₆ recovery, the gas is compressed to a higher pressure and liquefied for efficient storage or transfer into gas cylinders. A built-in filtration and drying system helps remove moisture and contaminants from the recovered SF₆ gas.
Equipped with a PLC touch-screen control system, the service cart provides automatic operating modes for vacuuming, SF₆ recovery, balanced charging, and compressor-assisted charging. The process flow and operating status can be displayed directly on the touch screen, simplifying operation and reducing manual intervention.
The system uses an air-cooled design and a mobile hand-push configuration, allowing operation without an external water source.
With a 300 L storage vessel, a 30 m³/h SF₆ compressor, and a 63 m³/h vacuum pump, the KSLH-30WY/20-63-300MZ is suitable for professional SF₆ gas handling applications involving GIS, circuit breakers, and other SF₆-insulated electrical equipment.
Key Features
Fully Automatic PLC Control
The integrated PLC control system provides automatic operating modes for vacuuming, recovery, balanced charging, and compressor-assisted charging. The process flow and operating parameters are displayed on the touch screen.
High-Pressure SF₆ Liquefaction
The system uses high-pressure liquefaction technology to convert recovered SF₆ gas into liquid for efficient storage, improving recovery efficiency and reducing storage volume requirements.
Integrated SF₆ Recovery, Vacuuming & Charging
One service cart combines multiple essential SF₆ handling functions, including gas recovery, vacuum evacuation, charging, storage, and cylinder filling.
300 L SF₆ Storage Vessel
The integrated storage vessel has a nominal volume of 300 L and a liquid SF₆ storage capacity of up to 300 kg, providing on-board storage during service operations.
High-Capacity Vacuum System
The system is equipped with a 63 m³/h vacuum pump with an ultimate vacuum of ≤10 Pa for evacuation of SF₆ electrical equipment before gas charging.
Gas Drying & Purification
A filtration and drying system is incorporated into the SF₆ recovery process. The self-regenerating desiccant filter uses vacuum heating activation regeneration, helping maintain the drying performance of the system.
Air-Cooled Mobile Design
The air-cooled configuration eliminates the need for an external water source. The hand-push mobile structure allows the service cart to be moved conveniently around service and maintenance areas.
Main Functions
- Fully Automatic SF₆ Gas Recovery
- SF₆ Vacuum Evacuation
- SF₆ Gas Charging
- Balanced Pressure Charging
- Compressor-Boosted Charging
- SF₆ Gas Storage
- SF₆ Cylinder Filling
- SF₆ Gas Filtration
- SF₆ Gas Drying
- SF₆ Gas Purification
- Self-Regenerating Desiccant Filtration
- PLC Touch-Screen Control
Applications
The KSLH-30WY/20-63-300MZ is designed for SF₆ gas handling operations associated with electrical equipment manufacturing, installation, commissioning, and maintenance.
GIS Maintenance
The system can be used to recover SF₆ before GIS maintenance and evacuate the equipment before refilling with SF₆ gas.
SF₆ Circuit Breakers
Suitable for SF₆ recovery, vacuuming, and gas charging during circuit breaker installation, maintenance, and servicing.
SF₆ Electrical Equipment Manufacturing
The integrated recovery, vacuuming, and charging functions make the system suitable for SF₆ gas handling during production and assembly of SF₆-insulated electrical equipment.
Equipment Installation & Commissioning
The service cart can be used for vacuum evacuation and SF₆ filling during the installation and commissioning of GIS and other SF₆-insulated equipment.
SF₆ Gas Recovery & Storage
Recovered SF₆ can be liquefied and stored in the integrated 300 L storage vessel or transferred to gas cylinders.
SF₆ Gas Reuse & Treatment
The filtration and drying system helps condition recovered SF₆ gas before subsequent storage or reuse, depending on gas quality and application requirements.
Technical Specifications
System Performance
| Parameter | Specification |
|---|---|
| Model | KSLH-30WY/20-63-300MZ |
| System Type | Fully Automatic, High-Pressure Liquefaction, Air-Cooled, Mobile |
| Operating Ambient Temperature | -10°C to 40°C |
| Recovery Initial Pressure | 0.8 MPa |
| Recovery Final Pressure | ≤1 kPa |
| Recovery Time per 1 m³ | ≤0.3 h/m³ |
| Charging Initial Pressure | ≤133 Pa |
| Charging Final Pressure | 0.7 MPa |
| Charging Time per 1 m³ | ≤0.15 h/m³ |
| Vacuuming Time | ≤0.45 h/m³ from 0.1 MPa to 133 Pa |
| Ultimate Vacuum | ≤10 Pa |
| Vacuum Retention | ≤400 Pa rise after 24 h from 133 Pa |
| Annual Leakage Rate | ≤0.5% |
| Recovered SF₆ Moisture Content | ≤60 ppm/V |
| Storage Method | Liquid |
| Storage Pressure | 3.9 MPa |
| Storage Vessel Volume | 300 L |
| Liquid Storage Capacity | 300 kg |
| Liquefaction Method | High-Pressure Liquefaction |
| Desiccant Regeneration | Vacuum Heating Activation |
| Power Supply | 3-Phase, 4-Wire, 415 V, 50 Hz |
| Total Power | ≤18 kW |
| Noise Level | ≤75 dB(A) |
| Equipment Weight | ≤1,000 kg |
SF₆ Compressor
The KSLH-30WY/20-63-300MZ is equipped with a semi-hermetic, air-cooled SF₆ compressor designed for high-pressure SF₆ recovery and liquefaction.
| Parameter | Specification |
|---|---|
| Compressor Type | Semi-Hermetic, Air-Cooled |
| Theoretical Displacement | 30 m³/h |
| Maximum Discharge Pressure | 5 MPa |
| Permissible Discharge Pressure | 4.7 MPa |
| Minimum Permissible Suction Pressure | 53 kPa |
| Maximum Permissible Suction Pressure | 0.3 MPa |
| Maximum Discharge Temperature | 130°C |
| Power | 11 kW |
| Power Supply | 3-Phase, 415 V, 50 Hz |
Vacuum Pumping System
The system incorporates a high-capacity vacuum pumping system for evacuation of SF₆ electrical equipment before gas charging.
| Parameter | Specification |
|---|---|
| Pumping Speed | 63 m³/h |
| Ultimate Vacuum | ≤10 Pa |
| Lubricating Oil | PRO100 |
| Power | 2.2 kW |
| Power Supply | 3-Phase, 415 V, 50 Hz |
Oil-Free Vacuum Pump
An additional oil-free vacuum pump is incorporated into the system.
| Parameter | Specification |
|---|---|
| Pumping Speed | 20 m³/h |
| Ultimate Vacuum | ≤10 Pa |
| Lubricating Oil | None |
| Power | 3 kW |
| Power Supply | 3-Phase, 415 V, 50 Hz |
SF₆ Storage Vessel
The integrated storage vessel allows recovered SF₆ to be stored in liquid form after the high-pressure liquefaction process.
| Parameter | Specification |
|---|---|
| Vessel Category | Class II |
| Design Pressure | 3.9 MPa |
| Material | Carbon Steel |
| Design Temperature | 100°C |
| Storage Vessel Volume | 300 L |
| Storage Capacity | 300 kg |
Working Principle
The KSLH-30WY/20-63-300MZ combines an SF₆ compressor, vacuum pumping system, storage vessel, filtration and drying system, valves, and measuring instruments into one integrated service cart.
During SF₆ recovery, the compressor draws SF₆ gas from the electrical equipment and compresses it to a high pressure. Based on the pressure-temperature characteristics of SF₆, the compressed gas is liquefied and transferred to the storage vessel or a connected gas cylinder.
During the recovery process, the filtration and drying system helps remove moisture and particulate contaminants from the recovered SF₆ gas.
For vacuuming, the vacuum pumping system evacuates air and residual gas from the electrical equipment before SF₆ charging.
For charging, the system provides two automatic charging modes:
- Balanced Charging using the pressure of the storage vessel
- Compressor-Boosted Charging for applications requiring higher charging pressure
This integrated configuration allows one service cart to perform the major SF₆ gas handling operations required during electrical equipment servicing.
Automatic Operating Modes
The PLC control system provides four main automatic operating modes.
Vacuuming
The vacuum system evacuates the connected electrical equipment to the required vacuum level before SF₆ charging.
SF₆ Recovery
SF₆ gas is recovered from the connected electrical equipment and liquefied for storage.
Balanced Charging
SF₆ is charged into the electrical equipment using the pressure available in the storage vessel.
Compressor-Boosted Charging
The SF₆ compressor provides additional pressure during charging when storage vessel pressure alone is insufficient.
Control System
The PLC touch-screen interface provides a clear display of the system process flow and operating status.
Adjustable operating parameters include:
- Vacuum Stop Value
- Vacuum Stop Delay
- Compressor Protection Setting
- Charging Termination Setting
- Charging Termination Delay
- Recovery Termination Setting
- Recovery Termination Delay
The system also provides a manual operating interface for individual valve and component control when required.
Filtration & SF₆ Gas Drying System
The KSLH-30WY/20-63-300MZ includes a filtration and drying system for conditioning recovered SF₆ gas.
The system uses a self-regenerating desiccant filter. The desiccant can be regenerated through vacuum heating activation, reducing the need for frequent replacement of the drying medium.
The specified moisture content of recovered SF₆ is ≤60 ppm/V under the stated test conditions.
Standard Accessories
| No. | Name and Specification | Unit | Qty |
|---|---|---|---|
| 1 | Fully Automatic Recovery, Vacuuming and Charging Cart | Set | 1 |
| 2 | User Manual | Copy | 1 |
| 3 | Certificate of Conformity | Copy | 1 |
| 4 | Double-layer steel wire braided rubber hose M27×1.5×5(m), one end with ball valve cylinder connector, one end with DN20 self-sealing connector | Piece | 1 |
| 5 | Double-layer steel wire braided rubber hose M27×1.5×10(m), both ends with DN20 self-sealing connectors | Piece | 1 |
| 6 | M36×2 sealing gasket | Pcs | 5 |
| 7 | M27×1.5 sealing gasket | Pcs | 10 |
| 8 | Power cable | m | 10 |
Note: Connection hoses, connectors, and adapters can be customized according to the customer’s SF₆ electrical equipment and gas cylinder interfaces.
Why Choose KSLH-30WY/20-63-300MZ?
One System for Complete SF₆ Service
Recovery, vacuuming, charging, storage, cylinder filling, filtration, and drying are integrated into a single mobile service cart.
Automatic Operation
The PLC control system simplifies the operation of complex SF₆ handling processes and allows users to select different automatic operating modes.
High-Efficiency SF₆ Recovery
The high-pressure liquefaction principle allows recovered SF₆ to be liquefied for efficient storage and transfer.
Large 300 L Storage Capacity
The integrated 300 L storage vessel provides substantial on-board capacity for recovered SF₆.
High Vacuum Performance
With a 63 m³/h vacuum pump and ultimate vacuum of ≤10 Pa, the system is suitable for vacuum evacuation before SF₆ charging.
No External Water Source Required
The air-cooled design eliminates the need for a cooling-water supply, making the service cart more convenient for field applications.
FAQ
What is a fully automatic SF₆ service cart?
A fully automatic SF₆ service cart is an integrated system used for SF₆ gas recovery, vacuuming, charging, storage, and related gas treatment operations. It combines compressors, vacuum pumps, storage vessels, valves, instruments, and control systems into one mobile unit.
What functions does the KSLH-30WY/20-63-300MZ provide?
The system provides SF₆ recovery, vacuuming, charging, storage, cylinder filling, filtration, drying, and purification functions.
How much SF₆ can the storage vessel hold?
The integrated storage vessel has a volume of 300 L and a specified liquid SF₆ storage capacity of 300 kg.
What is the SF₆ recovery capacity?
The system uses a 30 m³/h SF₆ compressor. Under the specified operating conditions, the recovery time is ≤0.3 h/m³.
What vacuum level can the system achieve?
The vacuum system has an ultimate vacuum of ≤10 Pa.
How fast can the system evacuate SF₆ electrical equipment?
The specified vacuuming time is ≤0.45 h/m³ from 0.1 MPa to 133 Pa, subject to the actual equipment volume and operating conditions.
Can the KSLH-30WY/20-63-300MZ charge SF₆ back into electrical equipment?
Yes. The system provides both balanced charging and compressor-boosted charging modes.
Can the system fill SF₆ into gas cylinders?
Yes. The service cart supports SF₆ transfer and cylinder filling.
Does the system include SF₆ drying and purification?
Yes. The system incorporates filtration and drying components, including a self-regenerating desiccant filter. The specified moisture content of recovered SF₆ is ≤60 ppm/V.
Does the SF₆ service cart require cooling water?
No. The system uses an air-cooled design, so an external cooling-water source is not required.
Can the equipment be customized?
Yes. KSTONE can customize connection hoses, adapters, interfaces, storage capacity, power supply, and other system configurations according to the customer’s SF₆ equipment and application requirements.
Related SF₆ Gas Handling Equipment
For different SF₆ gas handling requirements, KSTONE also provides:
- SF₆ Gas Recovery Units
- Fully Automatic SF₆ Recovery & Refilling Systems
- SF₆ Gas Recovery & Purification Systems
- SF₆ Vacuum Pumping Systems
- SF₆ Gas Analyzers
- SF₆ Leak Detectors
- SF₆/N₂ Mixed-Gas System
Request an SF₆ Service Cart Solution
Looking for a fully automatic SF₆ recovery, vacuuming and charging system for GIS, circuit breakers, or other SF₆-insulated electrical equipment?
Contact KSTONE with your equipment voltage level, SF₆ gas capacity, required storage capacity, connection interface, and power supply requirements. Our technical team can recommend a suitable SF₆ service cart configuration for your application.
