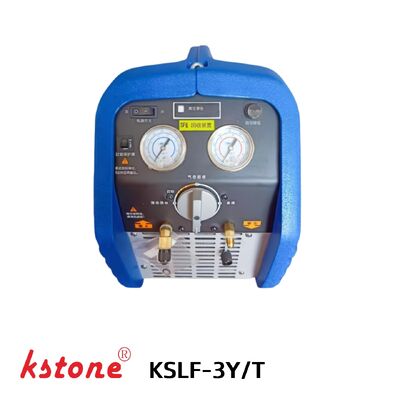

Portable SF₆ Gas Recovery Machine for 10–35 kV Medium-Voltage Switchgear

Compact Manual SF₆ Recovery System for 10–35 kV Medium-Voltage Switchgear

The KSLF-3Y/T Portable SF₆ Gas Recovery Unit is a compact and lightweight manual SF₆ recovery system designed for on-site SF₆ recovery from 10–35 kV medium-voltage switchgear.

Equipped with a built-in air-cooled SF₆ compressor, the unit supports both gas-phase and liquid-phase SF₆ recovery. Recovered SF₆ can be transferred directly to a connected gas cylinder for storage and subsequent reuse or treatment.

With a weight of less than 25 kg excluding the gas cylinder and compact dimensions of approximately 500 × 300 × 400 mm, the KSLF-3Y/T is designed for convenient transportation and field operation.

The portable SF₆ recovery unit is particularly suitable for field service teams, medium-voltage switchgear maintenance, and occasional SF₆ recovery operations where portability and easy deployment are important.

With a total weight of less than 25 kg excluding the gas cylinder, the KSLF-3Y/T can be easily transported between service locations.

The system supports both gas-phase and liquid-phase SF₆ recovery, providing flexibility for different switchgear service conditions.

The unit is specifically designed for SF₆ recovery applications involving 10–35 kV medium-voltage switchgear.

The integrated SF₆ compressor provides a displacement of 2.8 m³/h and uses air cooling for convenient field operation.

Recovered SF₆ can be transferred directly into a connected storage cylinder through the gas cylinder connection system.

The KSLF-3Y/T operates on a 220 V power supply, making it suitable for service environments with standard electrical power.

The compact aluminum enclosure provides protection during transportation while making the unit convenient for on-site SF₆ recovery and maintenance.

• SF₆ Gas Recovery
• Gas-Phase SF₆ Recovery
• Liquid-Phase SF₆ Recovery
• SF₆ Transfer to Storage Cylinders
• Direct Filling into Gas Cylinders
• Portable On-Site Operation
• Medium-Voltage Switchgear Service

The KSLF-3Y/T portable SF₆ recovery unit is suitable for a variety of field service and maintenance applications.

Designed for recovering SF₆ gas from medium-voltage switchgear during maintenance, inspection, repair, or equipment replacement.

Its compact size and low weight make the unit suitable for field technicians who need to transport SF₆ recovery equipment between different service locations.

The unit can be used to recover SF₆ before opening or servicing SF₆-insulated electrical equipment.

Recovered SF₆ can be transferred directly into a connected gas cylinder for storage.

The KSLF-3Y/T is particularly suitable for occasional or mobile SF₆ recovery operations rather than continuous high-volume workshop recovery.

The KSLF-3Y/T is equipped with a built-in air-cooled SF₆ compressor with a displacement of 2.8 m³/h. Domestic compressor options are available, and imported compressor configurations can be provided according to customer requirements.

The recovery system supports both gas-phase and liquid-phase SF₆ recovery, allowing the unit to handle different recovery conditions during switchgear maintenance.

The gas cylinder connection system allows recovered SF₆ to be transferred directly to a connected storage cylinder.

The switchgear connection hose and interface can be customized according to the customer’s switchgear connection requirements.

The compact aluminum carrying case provides a convenient solution for equipment transportation and on-site operation.

Note: Connection hoses and interfaces can be customized according to the customer’s switchgear and gas cylinder specifications.

For field service applications, a large SF₆ recovery system is not always necessary. The KSLF-3Y/T Portable SF₆ Gas Recovery Unit provides a more compact solution for maintenance teams working with medium-voltage switchgear.

Its lightweight design, 220 V power supply, built-in compressor, and gas/liquid recovery capability make it suitable for applications where mobility, quick deployment, and convenient transportation are key requirements.

Compared with larger workshop-oriented SF₆ recovery systems, the KSLF-3Y/T is intended primarily for on-site and occasional recovery operations.

SF₆-insulated switchgear requires proper gas handling during maintenance and servicing. Recovering SF₆ before opening the equipment helps prevent unnecessary gas release and allows the recovered gas to be transferred to a storage cylinder.

The KSLF-3Y/T provides a portable solution for these operations, particularly for 10–35 kV medium-voltage switchgear.

For larger GIS installations, higher recovery volumes, or applications requiring automatic recovery, vacuuming, filling, and purification functions, KSTONE can provide larger customized SF₆ service and recovery systems.

The KSLF-3Y/T is a compact manual SF₆ gas recovery unit designed for on-site recovery of SF₆ from 10–35 kV medium-voltage switchgear. It supports both gas-phase and liquid-phase recovery.

The unit is primarily designed for 10–35 kV medium-voltage SF₆ switchgear.

Yes. The unit supports both gas-phase and liquid-phase SF₆ recovery. The specified liquid recovery rate is 70–80 kg/h.

The gas recovery rate is approximately 20–30 kg/h, depending on operating conditions.

The unit weighs less than 25 kg excluding the gas cylinder and has approximate dimensions of 500 × 300 × 400 mm, making it suitable for field transportation.

Yes. The KSLF-3Y/T is equipped with a gas cylinder connection system for direct transfer and storage of recovered SF₆.

Yes. The switchgear connection hose and interface can be customized according to the customer’s switchgear connection requirements.

The KSLF-3Y/T is primarily designed for portable field service and occasional SF₆ recovery operations. For continuous or high-volume workshop applications, KSTONE can provide larger SF₆ recovery and service systems.

No. The KSLF-3Y/T is designed primarily for SF₆ recovery and transfer and does not include a dedicated SF₆ gas purification system.

• SF₆ Gas Recovery & Refilling Systems
• Fully Automatic SF₆ Recovery Systems
• SF₆ Gas Purification Equipment
• SF₆ Vacuum Pumping Systems
• SF₆ Gas Leak Detectors
• SF₆ Gas Analyzers

Need a portable SF₆ gas recovery unit for 10–35 kV switchgear?

Contact KSTONE with your switchgear model, SF₆ connection interface, required recovery method, and power supply requirements. We can recommend a suitable configuration and customize the connection hoses and accessories according to your application.
