High Capacity SF6 Gas Handling System Designed For The Recovery, Storage, Vacuum Pumping, Filling And Treatment

  • High Capacity SF6 Gas Handling System Designed For The Recovery, Storage, Vacuum Pumping, Filling And Treatment
Place of Origin SHANGHAI
Brand Name KSTONE
Certification ISO-9001
Model Number KSLHRY-18Y/20-63-200MZ
Document KSLH-18Y:20-63-200MZ(415V).pdf
Minimum Order Quantity 1
Packaging Details Wooden box/ Carton box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 1000 units per year
Product Details
SF₆ Compressor Theoretical Displacement 6 M³/h Pumping Rate 40 M³/h
Ultimate Vacuum ≤0.1 Mbar Storage Tank 600 L
Highlight

SF6 gas recovery system

,

high capacity SF6 storage system

,

SF6 vacuum pumping system
Leave a Message
Product Description

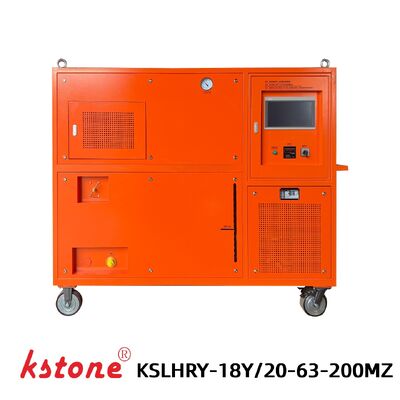

KSLHRY-18Y/20-63-200MZ(415V) SF6 Gas Recovery Device
High-Pressure Liquefaction SF6 Gas Recovery System with 600L Storage Tank

The KSTONE KSLHRY-18Y/20-63-200MZ(415V) SF6 Gas Recovery Device is a heavy-duty SF6 gas handling system designed for the recovery, storage, vacuum pumping, filling and treatment of sulfur hexafluoride (SF6) gas from GIS, circuit breakers and other SF6-insulated electrical equipment.

Using a high-pressure liquefaction recovery method, the system compresses SF6 to a high pressure and converts it into liquid form for efficient storage. It integrates an SF6 compressor, vacuum pump, 600L storage tank, filtration system and drying system into one mobile unit.

With PLC touch-screen control, air cooling and a 600L storage capacity, this SF6 gas recovery system is suitable for electrical equipment manufacturers, substations, power utilities and SF6 maintenance applications requiring high-capacity gas handling.


Key Features
High-Pressure Liquefaction Recovery

The SF6 compressor uses high-pressure liquefaction technology to convert recovered SF6 into liquid form for efficient storage and cylinder filling.

600L SF6 Storage Capacity

The integrated 600L storage vessel supports both gas and liquid SF6 storage and provides sufficient capacity for large-scale SF6 recovery operations.

Multi-Function SF6 Gas Handling

One system integrates:

  • SF6 gas recovery
  • SF6 gas storage
  • Vacuum pumping
  • SF6 gas filling
  • SF6 cylinder filling
  • Gas filtration
  • Gas drying
Automatic PLC Control

The PLC touch-screen interface provides an intuitive control system with dedicated operating modes for vacuum pumping, recovery, filling and cylinder filling.

Self-Regenerative Drying System

The built-in drying filter uses vacuum heating activation regeneration, allowing the drying system to be regenerated for repeated operation.

Air-Cooled and Mobile Design

The system uses air cooling and does not require an external water source, making it suitable for field service and maintenance operations.

SF6 Gas Treatment

During the recovery process, the integrated filtration and drying system helps remove moisture and solid particles from recovered SF6 gas.


Main Functions
SF6 Gas Recovery and Storage

The system recovers SF6 gas from electrical equipment and stores it in the integrated 600L storage vessel. High-pressure liquefaction improves storage efficiency.

Vacuum Pumping

A dedicated vacuum pump is provided for evacuating SF6 electrical equipment before gas filling or commissioning.

SF6 Gas Filling

Stored SF6 can be transferred back to switchgear through the filling system. The filling pressure can be controlled through the pressure-reducing valve.

SF6 Cylinder Filling

The high-pressure compressor allows recovered SF6 to be transferred into external SF6 cylinders.

SF6 cylinder filling is a technical operation and should only be performed by trained personnel following applicable safety procedures.

Filtration and Drying

The recovery circuit incorporates filtration and a regenerative drying system to help maintain the quality of recovered SF6 during handling.


Technical Specifications
Parameter Specification
Model KSLHRY-18Y/20-63-200MZ(415V)
Type High-pressure liquefaction, air-cooled, mobile
Ambient Temperature -10°C to 40°C
Recovery Initial Pressure ≤ 10 bar
Recovery Final Pressure ≤ 0 MPa
Filling Initial Pressure ≤ 133 Pa
Filling Final Pressure ≤ 10 bar
Ultimate Vacuum ≤ 2 × 10⁻³ mbar
Annual Leakage Rate ≤ 0.5%
Recovered SF6 Moisture ≤ 60 ppm/V
Recovered SF6 Oil Content 0 ppm
Storage Mode Gas / Liquid
Storage Tank Pressure 50 bar
Storage Tank Volume 600 L
Liquid Storage Capacity 600 kg
Liquefaction Method High-pressure liquefaction
Drying Filter Regeneration Vacuum heating activation regeneration
Power Supply 3 Phase, 415V, 50Hz
Total Power ≤ 15 kW
Noise Level ≤ 75 dB(A)
Equipment Weight ≤ 600 kg
SF6 Compressor
Parameter Specification
Compressor Type Air-cooled piston
Theoretical Displacement 6 m³/h
Maximum Discharge Pressure 30 bar
Allowable Discharge Pressure 28 bar
Minimum Allowable Suction Pressure 50 mbar
Maximum Allowable Suction Pressure 5 bar
Maximum Exhaust Temperature 130°C
Compressor Power 2.2 kW
Vacuum Pump
Parameter Specification
Pumping Speed 40 m³/h
Ultimate Vacuum ≤ 0.1 mbar
Power 2.2 kW
Storage Tank
Parameter Specification
Container Category Type II
Design Pressure 39 bar
Design Temperature 100°C
Volume 600 L
Liquid Storage Capacity 600 kg

Working Principle

The KSLHRY-18Y/20-63-200MZ(415V) combines an SF6 compressor, vacuum pump, storage vessel, filtration system, drying system, valves and measuring instruments.

During SF6 recovery, the compressor increases the pressure of the recovered gas. Based on the pressure-temperature characteristics of SF6, the gas is liquefied under high-pressure conditions and stored in the 600L storage vessel.

At the same time, the filtration and drying system helps remove moisture and solid particles during gas handling.

The system can subsequently use the stored SF6 for gas filling or transfer SF6 into external cylinders through the high-pressure filling circuit.


PLC Automatic Control

The PLC touch-screen control system provides dedicated operating modes for different SF6 handling procedures.

High Capacity SF6 Gas Handling System Designed For The Recovery, Storage, Vacuum Pumping, Filling And Treatment
Applications

The KSLHRY-18Y/20-63-200MZ(415V) is suitable for SF6 gas handling during:

  • GIS installation and commissioning
  • GIS maintenance
  • SF6 circuit breaker servicing
  • Substation maintenance
  • SF6 electrical equipment manufacturing
  • SF6 gas recovery and storage
  • SF6 cylinder filling
  • Electrical equipment replacement and overhaul

It is particularly suitable for applications requiring large-capacity SF6 storage and comprehensive gas handling functions.


Standard Accessories

The standard package includes:

  • 1 × SF6 Gas Recovery Device
  • 1 × User Manual
  • 1 × Certificate of Conformity
  • 1 × 5 m double-layer steel wire braided hose with DN20 self-sealing connector and cylinder ball-valve connector
  • 1 × 10 m double-layer steel wire braided rubber hose with DN20 self-sealing connectors
  • 10 × M27 × 1.5 sealing gaskets
  • 10 × M36 × 2 sealing gaskets
  • 1 × M36 × 2 female thread to M27 × 1.5 male thread adapter
  • 1 × Wrench
  • 1 × Rainproof Cover

Hoses, connectors and adapters can also be customized according to the customer’s GIS, circuit breaker or SF6 equipment interface.


Why Choose KSTONE SF6 Gas Recovery Equipment?

KSTONE specializes in SF6 gas recovery, handling, testing and treatment equipment for power transmission and distribution applications.

Our SF6 gas recovery systems are designed for different equipment capacities and operating requirements, from portable recovery units to large-capacity automatic SF6 service systems.

For projects requiring customized configurations, KSTONE can provide solutions based on:

  • SF6 gas capacity
  • Recovery speed
  • Storage tank volume
  • Power supply
  • Vacuum requirements
  • Gas filling requirements
  • GIS and circuit breaker interfaces
  • Automatic or manual operation

Contact KSTONE to discuss your SF6 gas recovery requirements.


Related KSTONE Products

For a complete SF6 gas handling solution, you may also be interested in:

SF6 Gas Recovery Systems
Explore different recovery, vacuuming, filling and storage configurations.

SF6 Gas Analyzers
Measure SF6 purity, moisture and decomposition products after maintenance or gas recovery.

SF6 Leak Detectors
Locate SF6 leakage from GIS, circuit breakers, valves and other SF6 equipment.

SF6 Vacuum Pumping Systems
Dedicated vacuum solutions for evacuating SF6 electrical equipment.

SF6/N₂ Gas Mixing and Charging Equipment
For applications requiring controlled SF6/N₂ gas mixing and filling.


FAQ
What is the KSLHRY-18Y/20-63-200MZ(415V) used for?

It is designed for recovering, storing, vacuuming, filling and handling SF6 gas from GIS, circuit breakers and other SF6-insulated electrical equipment.

What is the storage capacity?

The system is equipped with a 600L storage tank with a stated liquid storage capacity of up to 600 kg.

Can this SF6 recovery system fill gas cylinders?

Yes. The system uses the high-pressure SF6 compressor to transfer recovered SF6 into external cylinders.

Does the system require cooling water?

No. It uses an air-cooled design and does not require an external water source.

Is the operation automatic?

Yes. The system uses PLC touch-screen control and provides automatic operating modes for vacuum pumping, recovery, filling and cylinder filling.

Can the hoses and connectors be customized?

Yes. Hoses, adapters and connectors can be configured according to the customer’s GIS or circuit breaker interface.

What power supply does this model require?

The standard configuration uses 3-phase 415V, 50Hz power supply.


Request a Quote

Looking for a 600L SF6 gas recovery system for GIS maintenance, circuit breaker servicing or substation applications?

Send us your equipment voltage, SF6 gas quantity, required storage capacity, power supply and connection interface. KSTONE can recommend a suitable SF6 recovery and gas handling configuration for your application.

Model: KSLHRY-18Y/20-63-200MZ(415V)

Contact KSTONE for technical specifications, quotation and customized configuration.
