R134a Sulfur Hexafluoride Gas Leak Detector Battery Operated For Refrigerant Recovery

I'm Online Chat Now

R134a Sulfur Hexafluoride Gas Leak Detector Battery Operated For Refrigerant Recovery

R134a Sulfur Hexafluoride Gas Leak Detector Battery Operated For Refrigerant Recovery
R134a Sulfur Hexafluoride Gas Leak Detector Battery Operated For Refrigerant Recovery R134a Sulfur Hexafluoride Gas Leak Detector Battery Operated For Refrigerant Recovery

Large Image :  R134a Sulfur Hexafluoride Gas Leak Detector Battery Operated For Refrigerant Recovery

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: XP-1A
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $2000-$100000
Packaging Details: Carton / Wooden box
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 1000
Detailed Product Description
Operating Temperature: 0-50°C Weight: 0.5 Lbs
Warranty: 1 Year Storage Temperature: -20-60°C
Dimensions: 5.5 X 2.5 X 1 Inches Display: Analog
Power Source: Battery Battery Type: 9V
Highlight:

Sulfur Hexafluoride Gas Leak Detector

,

R134a Gas Leak Detector

,

refrigerant sulfur hexafluoride detector

TIF BOCSCH Qualitative leak detector , Corona principle , XP-1A



Brand Story of XP-1A:
The original brand of XP-1A is TIF, so we generally call it TIF xp-1a. All the trademarks on the inner packaging of the product are TIF.
In 2010, the small and micro company TIF was acquired by ROBINAIR, a professional manufacturer of refrigerant recovery machines in the United States. The purpose of acquiring TIF was to extend the product line, and its products covered refrigerant leak detection, refrigerant recovery, and refrigerant identification.
In 2014, ROBINAIR was acquired by BOCSCH and became a sub-brand of BOSCH's automotive after-sales service segment.

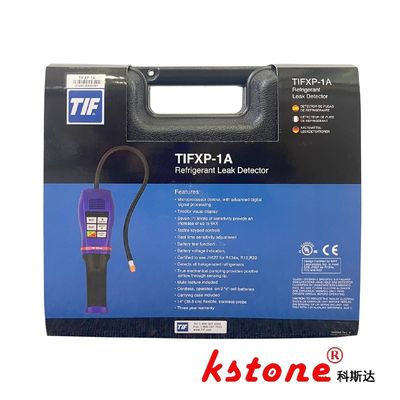

Therefore, the XP-1A we know now is actually a product under the BOSCH brand. Please refer to the outer carton in the picture at the end of this article.
XP-1A is mainly used for refrigerant leak detection in the automotive aftermarket. Currently, the manufacturer is Bosch Automotive Service Solutions (Suzhou) Co., Ltd.



Core Parameters of XP-1A (Extracted from the Main Text of the Instruction Manual)

Parameter Name

Parameter Details

Power Supply

3 volts direct current, 2 No. 2 alkaline batteries

Maximum Sensitivity

R12, R22, R134a have been approved (14 grams per year)

Ultimate Sensitivity

For halogen refrigerants, less than 3 grams per year

Probe Life

Approximately 20 hours

Operating Temperature

0℃ - 52℃

Battery Life

Approximately 30 hours under normal use

Response Time

Instantaneous

Reset Time

1 second

Warm-up Time

Approximately 2 seconds

Weight

560 grams

Dimensions

22.9 cm × 6.5 cm × 6.5 cm

Probe Rod Length

35.5 cm
