Industrial Co2 Leak Detector SF6 Leak Pointer Dual Wave 250W

Large Image : Industrial Co2 Leak Detector SF6 Leak Pointer Dual Wave 250W

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-1D+

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Sensitivity:	1 Ppm	Measurement Range:	0-1000 Ppm
Operating Temperature:	0-50°C	Warranty:	2 Years
Display:	Digital LCD	Response Time:	1 Second
Accuracy:	±5% Of Reading
Highlight:	250W co2 leak detector , SF6 co2 leak detector , industrial sf6 leak pointer

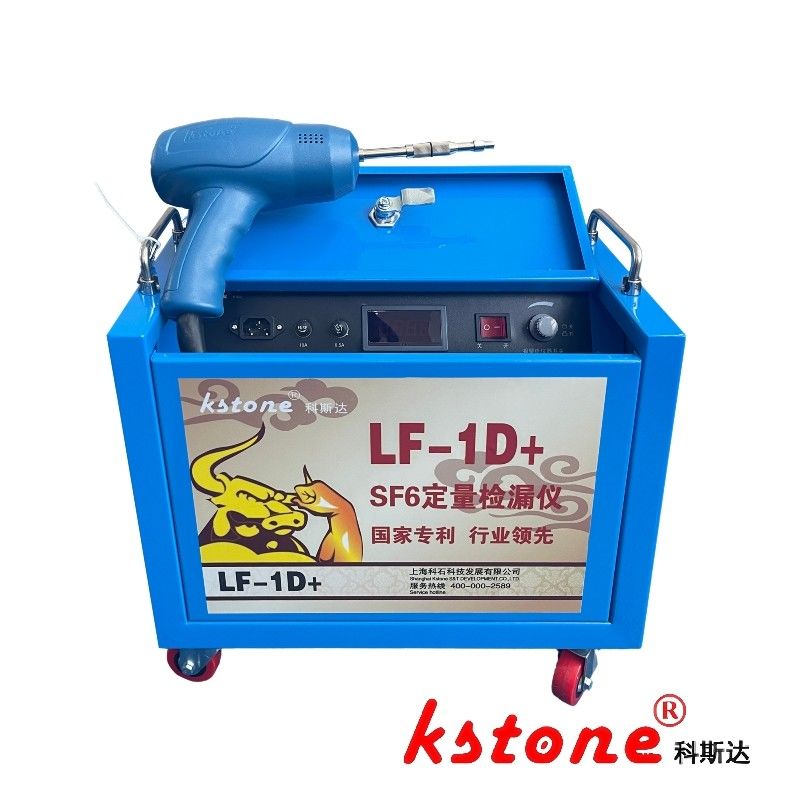

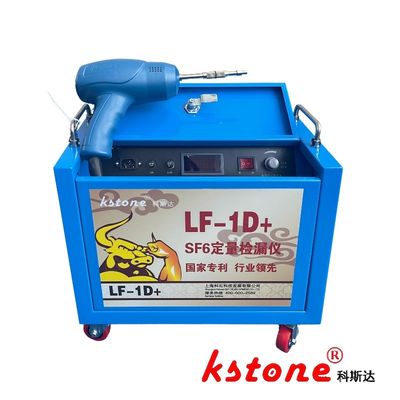

LF-1D+ SF6 Quantitative Leak Detector - High-Precision & Fast-Response Leak Detection Expert

Key Features

Ultra-Sensitive Detection:0.01ppm minimum detection limit (range: 0.01–1000ppm) via low-voltage ionization technology, outperforming infrared dual-wave detectors in sensitivity.
Rapid Response:≤1 second reaction time to 100ppm SF6, enabling fast leakage point localization in high-voltage switchgear and power equipment.
Intuitive Operation:LCD digital display with real-time concentration readings and variable buzzer alerts for easy leak assessment.

Industry Credibility

As the drafter of GB/T11023-2018 national standard, this detector ensures industrial-grade reliability for cost-effective, low-maintenance SF6 leak testing in electrical equipment. Ideal for utilities, manufacturing, and energy sectors.

Optimization Notes

Concise Structure:3-column layout (features, specs, credibility) for quick scanning.
Data-Driven Emphasis:Bold key metrics (0.01ppm, ≤1s) to highlight technical superiority.
SEO-Friendly Keywords:Incorporates "SF6 leak detector", "high-voltage switchgear", and "national standard" naturally.
Application Focus:Links technical features directly to utility and industrial use cases.

Technical Specifications Table

Parameter	Details
Measurement Accuracy	≥10, detects SF6 concentration as low as 0.01ppm
Measurement Range	0.01ppm – 1000ppm
Response Time	≤1 second for 100ppm SF6 gas
Indication Method	LCD digital display with real-time concentration readings; buzzer frequency varies with leakage severity
Vacuum Hose	4m (extendable to 6m)
Power Cable	2m (extendable to 6m), 220V±22V, 50Hz±2Hz
Dimensions	430×275×429mm (L×W×H)
Net Weight	~19.8kg
Packaging	Foam carton
Continuous Working Time	≤8 hours
Operating Temperature	5℃ – 50℃
Humidity Resistance	Operates in environments with humidity >80%
Power Consumption	250W
