TIF BOCSCH Qualitative Combustible Gas Detector Leak Monitor Flame Retardant

Large Image : TIF BOCSCH Qualitative Combustible Gas Detector Leak Monitor Flame Retardant

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	XP-1A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Operating Temperature:	0-50°C	Weight:	0.5 Lbs
Warranty:	1 Year	Storage Temperature:	-20-60°C
Dimensions:	5.5 X 2.5 X 1 Inches	Display:	Analog
Power Source:	Battery	Battery Type:	9V
Measurement Range:	0-10000ppm，100%LEL, 0~100%VOL	Operating Humidity:	99%RH (non-condensing)
Language:	Chinese/English/ Russian	Working Voltage:	3.7V Rechargeable Lithium Battery
Materials:	Flame Retardant Thermoplastic PS	Signal Output:	4-20mA And RS485
Running Time:	>4hours	Package Size:	10X5X3cm
Working Pressure:	86kPa~106kPa	Alarm Type:	Audible And Visual
Zero Drift:	≤±1%(F.S/year)	Wireless Frequency:	315/433MHz
Sampling Methods:	Diffusion Or Pump-suction Selectable	Detect Item:	Sulfur Hexafluoride/ SF6
Detection Distance:	200m	Material:	Anti-fire ABS Plastic
Working Mode:	Long-term Continuous Work	Relative Humidity:	10%～95%RH
Customized Support:	OEM, ODM	Testing Principle:	Electrochemistry
Responding Time:	≤30s (T90)	Precision:	≤±3%F.S
Sensor Principle:	Electrochemistry	Respond Time:	≤20s
Highlight:	TIF BOCSCH combustible gas detector , Qualitative combustible gas detector , Qualitative gas leak monitor

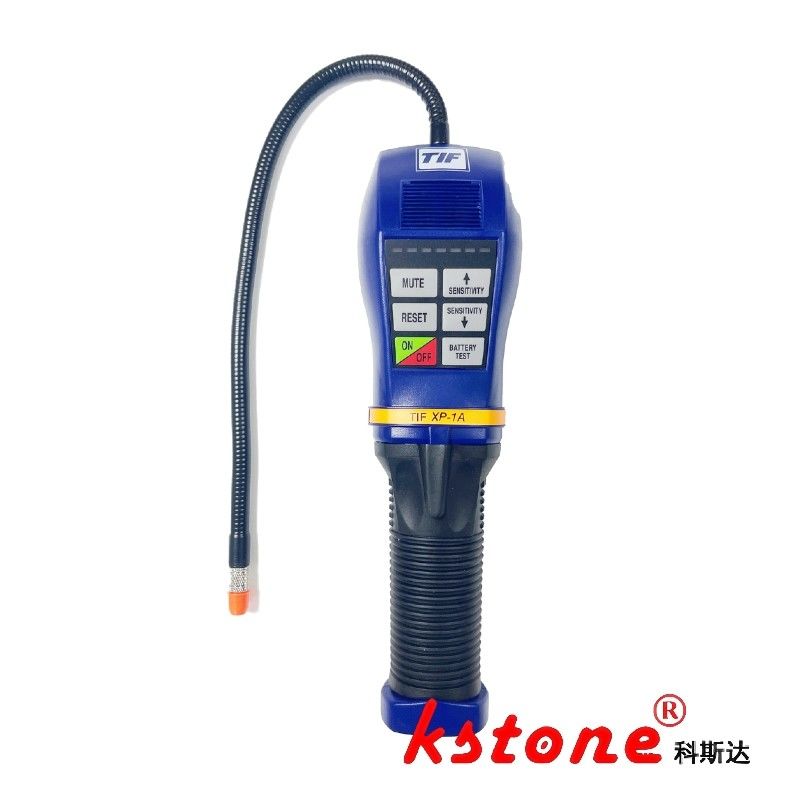

TIF BOCSCH XP-1A Qualitative Leak Detector | Corona Discharge Technology

Brand Evolution

The XP-1A's heritage stems from TIF, with internal packaging retaining the original TIF trademark. In 2010, TIF was acquired by ROBINAIR—a U.S. leader in refrigerant recovery systems—aiming to expand into leak detection, recovery, and identification solutions. In 2014, ROBINAIR became part of BOSCH's automotive aftermarket division, leading to the XP-1A's rebranding under BOSCH. Currently manufactured by Bosch Automotive Service Solutions (Suzhou) Co., Ltd., it specializes in automotive refrigerant diagnostics.

Product Application

Designed for the automotive aftermarket, the XP-1A utilizes corona discharge technology to detect refrigerant leaks in vehicle air conditioning systems. Its compact 22.9×6.5×6.5cm body and 35.5cm probe rod enable access to tight spaces, while a 30-hour battery life supports prolonged on-site use. With 14g/year sensitivity certified for R12, R22, and R134a, it meets industry standards for routine maintenance and diagnostic tasks.

Technical Specifications

Parameter	Details
Power Source	3V DC, 2×AA alkaline batteries (replaceable)
Maximum Sensitivity	14g/year (certified for R12, R22, R134a)
Ultimate Sensitivity	<3g/year (for halogen refrigerants)
Probe Lifespan	~20 hours (continuous operation)
Operating Temperature	0–52°C (non-condensing)
Battery Life	~30 hours (standard operation)
Response Time	Instantaneous
Reset Time	1 second
Warm-up Time	~2 seconds
Weight	560g (portable design)
Dimensions (L×W×H)	22.9×6.5×6.5cm
Probe Rod Length	35.5cm (flexible access design)
