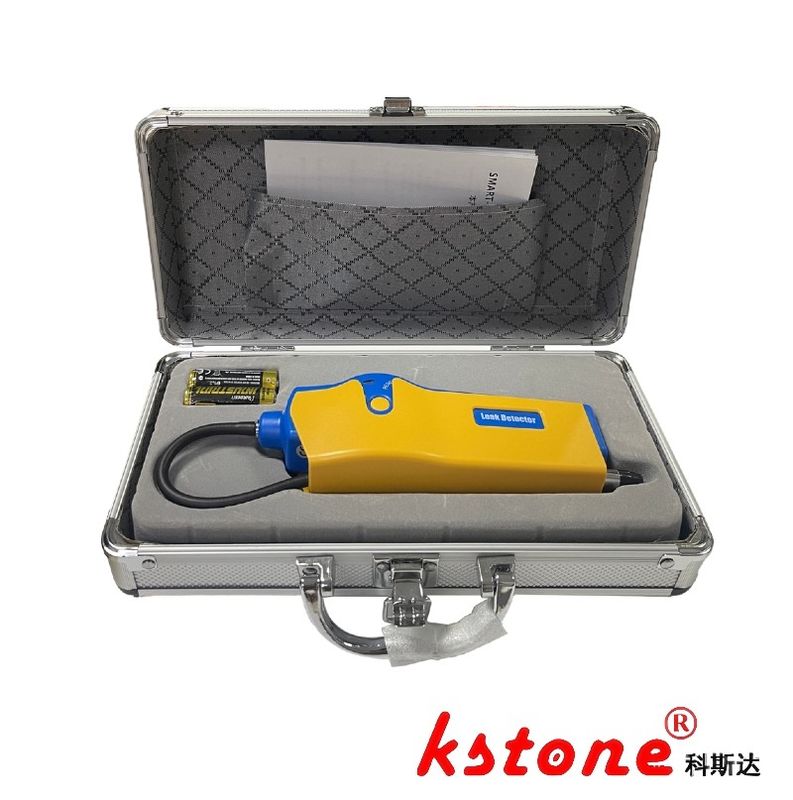

SF6 Infrared Ammonia Gas Leak Detector 3.7V Rechargeable

Large Image : SF6 Infrared Ammonia Gas Leak Detector 3.7V Rechargeable

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	Smart-01b

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	,T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Sensitivity:	0.1ppm	Response Time:	Less Than 1 Second
Power Supply:	4 AA Batteries	Detection Principle:	Infrared Absorption
Measurement Range:	0-1000ppm	Accuracy:	±2% Of Reading
Operating Temperature:	0-50°C	Storage Temperature:	-20-60°C
Certifications:	CE, RoHS	Weight:	200g
Highlight:	SF6 Infrared Gas Leak Detector , 3.7V rechargeable Gas Leak Detector , rechargeable ammonia leak detector

Smart-01b Qualitative Leak Detector | Corona Principle, 3g/yr Sensitivity

Product Overview

The Smart-01b redefines cost-effective gas leak detection with its corona discharge principle, specializing in SF6 and all fluorinated refrigerants. Engineered for field efficiency, it boasts a 5-second rapid warm-up and compact 175×55×34mm design for seamless mobility. Powered by 2×AA batteries, the detector features a 1000mm extended hose and a ~20-hour sensor lifespan, balancing portability with prolonged use.

Technical Parameters

Parameter	Details
Detection Principle	Corona Discharge
Sensitivity	3g/year (SF6 leakage rate)
Warm-up Time	≤5 seconds
Detectable Gases	All fluorinated refrigerants, SF6
Operating Temperature	0–52°C
Humidity Resistance	≤95% RH (non-condensing)
Hose Length	1000mm (standard)
Power Source	2×AA batteries (replaceable)
Sensor Lifespan	~20 hours (continuous operation)
Dimensions (L×W×H)	175×55×34mm (portable design)

Key Features

Economic Efficiency:Tailored for budget-sensitive users, combining affordability with reliable detection.
Instant Activation:5-second warm-up eliminates delays, enabling immediate leak identification.
Universal Compatibility:Suitable for all fluorinated refrigerants and SF6, ideal for diverse industrial applications.
Ergonomic Design:Lightweight build with a 1000mm hose allows access to hard-to-reach areas, enhancing on-site usability.
