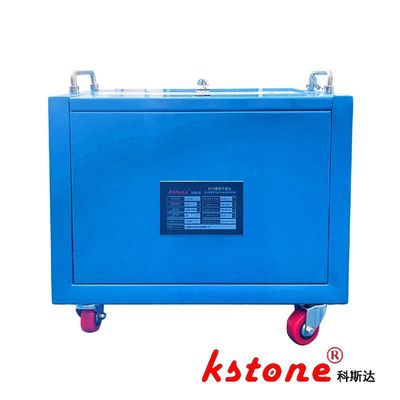

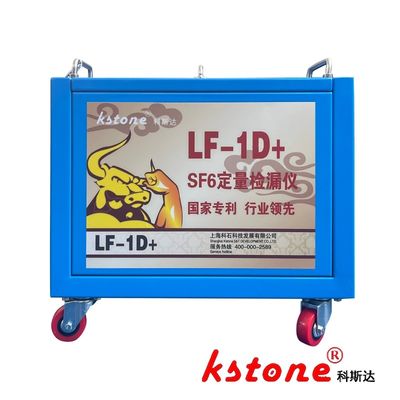

Name: Automatic Sulfur Hexafluoride Detector SF6 Gas Sniffer For Outdoor Inspection
Brand: Shanghai Kstone S&T Development Co .,LTD.
SKU: LF-1D+
Price: 51,000.00 USD
Availability: InStock

Place of Origin:

Shanghai

Brand Name:

KSTONE

Certification:

ISO9000

Model Number:

LF-1D+

Minimum Order Quantity:

Price:

$2000-$100000

Packaging Details:

Carton / Wooden Box

Delivery Time:

7-10 work days

Payment Terms:

T/T

Supply Ability:

1000 per year

Recovery Time:

≤10s

Operating Temperature:

-10℃~50℃

Resolution:

0.01ppm

Power Supply:

AC 220V/50Hz

Response Time:

≤10s

Storage Temperature:

-20℃-60℃

Accuracy:

±2%

Measurement Range:

0-2000ppm

Highlight:

Automatic sulfur hexafluoride detector

outdoor sulfur hexafluoride detector

outdoor sf6 gas sniffer

Search for leakage points, Cost-Effective, Low Maintenance Cost, LF-1D+

SF6 Quantitative Leak Detector , Cost-Effective , Low Maintenance Cost , Search for leakage points

Our company is the drafting unit of the Chinese national standard GB/T11023-2018 "High voltage switchgear - SF6 gas sealing test method".

LF-1D+ SF6 Quantitative Leak Detector adopts the principle of low-voltage ionization in a high-frequency magnetic field and has the outstanding advantages of fast response and high sensitivity. It is the best choice for finding leakage points.
In terms of the two parameters of response time and sensitivity, it far surpasses the leak detectors based on the principle of infrared dual-waves.

Overall dimensions: 430*275*425mm

Item	LF-1D+ SF6 Quantitative Leak Detector
Measurement Accuracy	≥10, it can detect SF6 with a concentration of 0.01ppm Measurement Range
Measurement Range	0.01ppm - 1000ppm
Response Time	No more than 1 second for 10, that is, for 100ppm gas
Indication Method	LCD digital display. The greater the leakage concentration, the greater the change of the digital value. At the same time, the frequency of the buzzer sound changes more significantly.
Vacuum Hose	4 meters (the towable length is 6 meters)
Power Input	Cable 2 meters (the towable length is 6 meters)
Input Power	220V±22V, 50Hz±2Hz
Overall Dimensions	430×275×429mm (Length * Width * Height)
Packaging	Foam carton
Continuous Working Time	Generally no more than 8 hours
Ambient Temperature	5℃ - 50℃
Ambient Humidity	It can adapt to environments with humidity over 80%
Power	250W
Net Weight	Approximately 19.8KG
