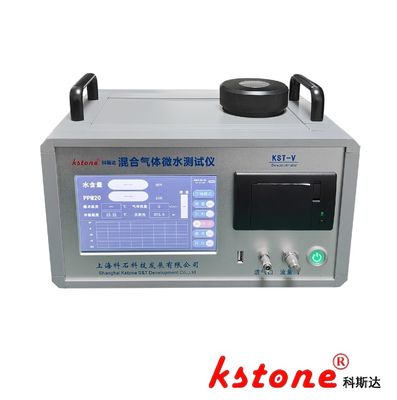

Cold Mirror Method, Portable Dew Point Meter, High-Precision Dew Point Meter [KST-V]

  • Cold Mirror Method, Portable Dew Point Meter, High-Precision Dew Point Meter [KST-V]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KST-V
Document dew point meter.pdf
Minimum Order Quantity 5
Price $8000-$10000
Packaging Details Carton / Wooden Box
Delivery Time 30work days
Payment Terms T/T
Supply Ability 10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Resolution 0.1℃ Measurement Range 20℃ ~ -62℃
Measurement Error Better Than ±0.3℃ Display Units ℃, Ppm
Measured Gas Pressure ≤1MPa Operating Environment Humidity ≤85%RH
Highlight

OEM portable dew point meter

,

24V portable dew point meter

,

OEM dew point temperature meter
Leave a Message
Product Description

Cold Mirror Method, High Precision, Suitable For Dew Point Testing Of N2, H2, Etc KST-V

Working Principle

  1. Under a certain pressure, when the temperature is slightly lower than the dew point (the saturation temperature of water vapor in the gas), the water vapor in the gas condenses into dew. This causes the light irradiated on the mirror surface to generate diffuse reflection. The photosensitive device produces a change in the electrical signal. The detection circuit sends the change in the electrical signal and the temperature data to the control system for analysis. Through an intelligent algorithm, the dew point temperature value of the measured gas is calculated and displayed (* The dew point below 0°C is called the frost point). The schematic diagram of the dew point meter is shown in Figure 1:

Cold Mirror Method, Portable Dew Point Meter, High-Precision Dew Point Meter [KST-V] 0

Figure 1 Schematic Diagram of the Dew Point Meter

Main Technical Specifications

Measurement Method Fully automatic continuous measurement
Gas to be Measured SF6
Gas Flow Rate 400~800±50ml/min
Flow Display Digital flow meter
Temperature Resolution 0.1℃
Measurement Range 20℃ ~ -62℃
Measurement Error Better than ±0.3℃
Display Units ℃, ppm
Measured Gas Pressure ≤1MPa
Operating Environment Temperature -20℃ ~ 50℃
Operating Environment Humidity ≤85%RH
External Power Supply AC220V±10%, 50Hz
Built-in Power Supply 24V lithium battery
Power ≤70W
Normal Continuous Operation Time >8h
Measurement Principle Cold mirror measurement principle
Cooling Source SL micro cooler
Sampling Interface Self-sealing quick connector
Dimensions Length 340mm × Width 230mm × Height 200mm
Weight ≤9.5 kg

Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
