Fully Automatic SF6 Gas Recovery Device, Vacuum Compressor, With Losses Below 0.1% [KSLH-6WY20-54-300Z]

  • Fully Automatic SF6 Gas Recovery Device, Vacuum Compressor, With Losses Below 0.1% [KSLH-6WY20-54-300Z]
  • Fully Automatic SF6 Gas Recovery Device, Vacuum Compressor, With Losses Below 0.1% [KSLH-6WY20-54-300Z]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-6WY20-54-300Z
Minimum Order Quantity 1
Price $30000-$40000
Packaging Details Fumigation wooden box
Delivery Time 60 days
Payment Terms T/T
Supply Ability 30 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ambient Temperature -10℃～40℃ Recycling Initial Pressure ≤30 Bar Final
Recycling Pressure ≤-0.09 MPa Inflation Initial Pressure ≤133 Bar Final
Inflation Pressure ≤10 MPa Annual Leakage Rate Rate ≤0.5%
Liquid Storage Capacity 350 Kg Equipment Weight ≤1000 Kg
Highlight

ODM sf6 gas recovery unit

,

Automatic sf6 gas recovery unit

,

ODM refrigerant gas recovery unit
Leave a Message
Product Description

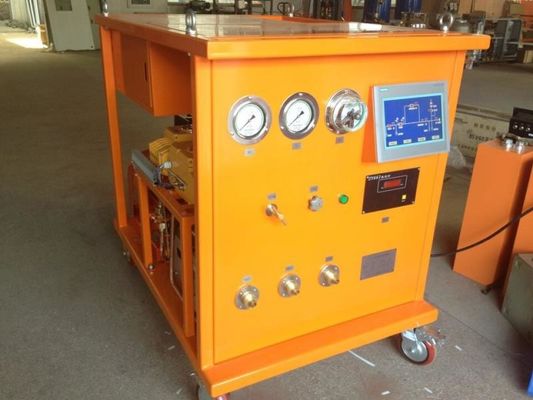

Fully Automatic SF6 Gas Recovery Device, Vacuum Compressor, With Losses Below 0.1% KSLH-6WY20-54-300Z



Our company is the drafting unit of the industry standard "DL/T1353-2024 Technical Specification for Sulfur Hexafluoride Treatment System" issued by the National Energy Administration of the People's Republic of China.

SF6 recovery devices are generally customized products; According to the functional classification, whether it includes the function of recycling, vacuuming, and inflation, there are many configurations based on customer needs, such as whether negative pressure recycling is required, whether an oil-free compressor is used, the speed of the compressor, the size of the liquid storage tank, whether it has a freezing function, whether it has moisture filtration and particle filtration, whether it needs to be fully automatic, etc;Below we introduce a small fully automatic recycling device with negative pressure recovery, which is oil-free and capable of suction and inflationThe Model is KSLH-6WY20-54-300Z；Equipped with a 6m3/h oil-free high-pressure compressor, a 20m3/h negative pressure compressor, a 54m3/h de vacuum pump, a 300L storage tank, and fully automatic operation.



Main Technical Specifications

  1. Performance parameters of the device

Type

High pressure liquefaction,

air cooling,

hand push mobile

Ambient Temperature

-10℃～40℃

recycle



Initial pressure:

≤30 bar

Final pressure:

≤-0.09 MPa

inflate



Initial pressure:

≤133 bar

Final pressure:

≤10MPa

Ultimate vacuum

≤5 Pa

Annual leakage rate

≤0.5%

Recycled SF6 gas purity



Moisture content:

≤60 (PPM/V)

Oil content:

0 (PPM/G)

Keep in storage container













Storage method:

Liquid

Pressure:

39 bar

Volume:

350 L

Liquid storage capacity:

350 kg

Liquefaction method:

High pressure liquefaction

Regeneration method of dry filter

Vacuum heating activation regeneration



power supply

3Φ 380V 50HZ



Total power

≤7 (kW)



Noise dB

≤75 A



Equipment weight

≤1000 kg





   2. Main component performance parameters



Form



Air cooled piston



SF6 Compressor

Theoretical Displacement

m3/h

 6
Maximum Exhaust Pressure

bar

 50
Allowable Exhaust Pressure

bar

 47
Minimum allowable suction pressure

mbar

 -5
Maximum allowable suction pressure

bar

 3
Maximum exhaust temperature

℃

 130
lubricant

not have

power

kW

 2.2

vacuum pump

pumping speed

m3/h

 63

mbar

mbar

≤0.1

power

kW

 2.2

Container

Container category



TYPE TWO

Design pressure

 bar 39

Design Temperature

℃

 100

Storage container capacity

L

 350

Storage container liquid storage capacity

kg

 350
