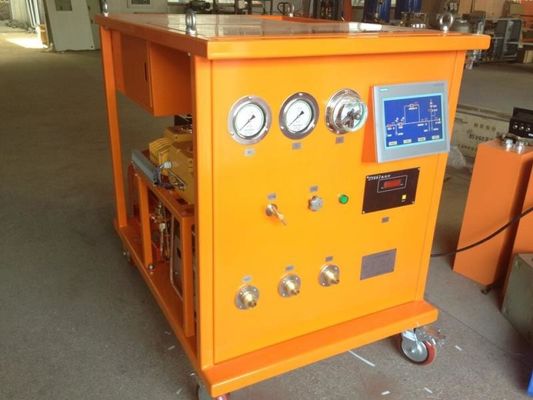

Fully automatic SF6 gas recovery device, vacuum compressor, with losses below 0.1%

Large Image : Fully automatic SF6 gas recovery device, vacuum compressor, with losses below 0.1%

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLH-6WY20-54-300Z

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$30000-$40000
Packaging Details:	Fumigation wooden box
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	30 per year

Contact Now

Detailed Product Description

Features:	High Efficiency, Easy Operation, Compact Design	Weight:	600 Kg
Power Supply:	380V, 50Hz	Origin:	China
Warranty:	1 Year	Capacity:	350 Kg
Application:	Recovery And Purification Of SF6 Gas	Power Consumption:	7kW
Recovery Rate:	99.9%	Product Type:	Gas Recovery Equipment
Recycling Ultimate Vacuum:	1000pa
Highlight:	ODM sf6 gas recovery unit , Automatic sf6 gas recovery unit , ODM refrigerant gas recovery unit

SF6 Fully Automatic Recycling, Oil-free Compressor, Negative Pressure Recovery, Vacuum Recovery KSLH-6WY20-54-300Z

Our company is the drafting unit of the industry standard "DL/T1353-2024 Technical Specification for Sulfur Hexafluoride Treatment System" issued by the National Energy Administration of the People's Republic of China.

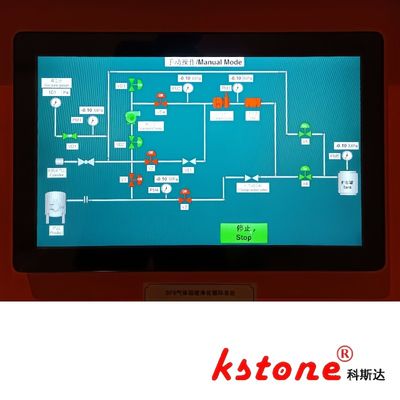

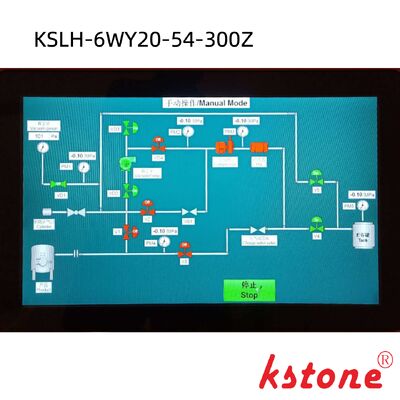

SF6 recovery devices are generally customized products; According to the functional classification, whether it includes the function of recycling, vacuuming, and inflation, there are many configurations based on customer needs, such as whether negative pressure recycling is required, whether an oil-free compressor is used, the speed of the compressor, the size of the liquid storage tank, whether it has a freezing function, whether it has moisture filtration and particle filtration, whether it needs to be fully automatic, etc;Below we introduce a small fully automatic recycling device with negative pressure recovery, which is oil-free and capable of suction and inflationThe Model is KSLH-6WY20-54-300Z；Equipped with a 6m3/h oil-free high-pressure compressor, a 20m3/h negative pressure compressor, a 54m3/h de vacuum pump, a 300L storage tank, and fully automatic operation.

Main Technical Specifications

Performance parameters of the device

Type		High pressure liquefaction, air cooling, hand push mobile
Ambient Temperature		-10℃～40℃
recycle	Initial pressure:	≤30 bar
recycle	Final pressure:	≤-0.09 MPa
inflate	Initial pressure:	≤133 bar
inflate	Final pressure:	≤10MPa
Ultimate vacuum		≤5 Pa
Annual leakage rate		≤0.5%
Recycled SF6 gas purity	Moisture content:	≤60 (PPM/V)
Recycled SF6 gas purity	Oil content:	0 (PPM/G)
Keep in storage container	Storage method:	Liquid
	Pressure:	39 bar
	Volume:	350 L
	Liquid storage capacity:	350 kg
	Liquefaction method:	High pressure liquefaction
Regeneration method of dry filter	Vacuum heating activation regeneration
power supply	3Φ 380V 50HZ
Total power	≤7 (kW)
Noise dB	≤75 A
Equipment weight	≤1000 kg

2. Main component performance parameters

	Form		Air cooled piston
SF6 Compressor	Theoretical Displacement	m³/h	6
	Maximum Exhaust Pressure	bar	50
	Allowable Exhaust Pressure	bar	47
	Minimum allowable suction pressure	mbar	-5
	Maximum allowable suction pressure	bar	3
	Maximum exhaust temperature	℃	130
	lubricant		not have
	power	kW	2.2
vacuum pump	pumping speed	m³/h	63
	mbar	mbar	≤0.1
	power	kW	2.2
Container	Container category		TYPE TWO
	Design pressure	bar	39
	Design Temperature	℃	100
	Storage container capacity	L	350
	Storage container liquid storage capacity	kg	350
