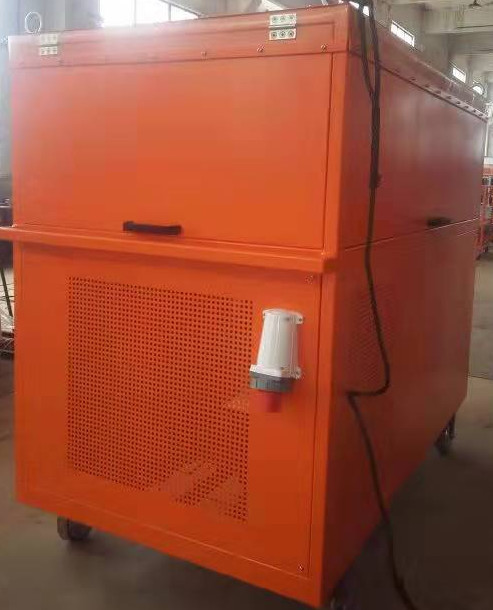

Fully automatic recycling, separation, and purification device, capable of obtaining 99.99% SF6

SF6 Recovery Separation Purification Device – 99.99% Distillation, Filtration, Air-Cooled

KSLF-30WY20/63/100/N

System Overview

Technical Features

• Integrated Filtration System: Adsorbs moisture, particles, decomposition byproducts, and oil residues
• Compact All-in-One Design: Portable structure for easy on-site deployment
• Maintenance-Free Filtration: Self-cleaning mechanism ensures consistent gas quality
• Phase Sequence Protection: Prevents motor reversal via built-in protective circuitry
• Air-Cooled Operation: Eliminates need for external water supply (ideal for field use)
• Extreme Temperature Performance: -20°C to +60°C operational range with thermal protection
• Regenerative Desiccant System: Heated activation eliminates replacement needs
• Auto-Compensating Valves: Ball valves with self-sealing performance for zero leakage
• Vacuum Power Protection: Prevents oil backflow during power outages

Technical Specifications Table

Functional Flow Diagram

1. Recovery Stage: Compressed SF6 gas intake via oil-free pump
2. Separation Stage: Distillation removes N₂/O₂ through temperature gradient control
3. Purification Stage:
   • Particulate filtration (0.1μm)
   • Moisture adsorption (molecular sieve)
   • Decomposition product removal (chemical adsorption)
     • The above picture shows the on-site application of Siemens high-voltage switch equipment in Shanghai
     •
