Large vacuum units, dn20,500m3/h ,Roots pump,front-end pump

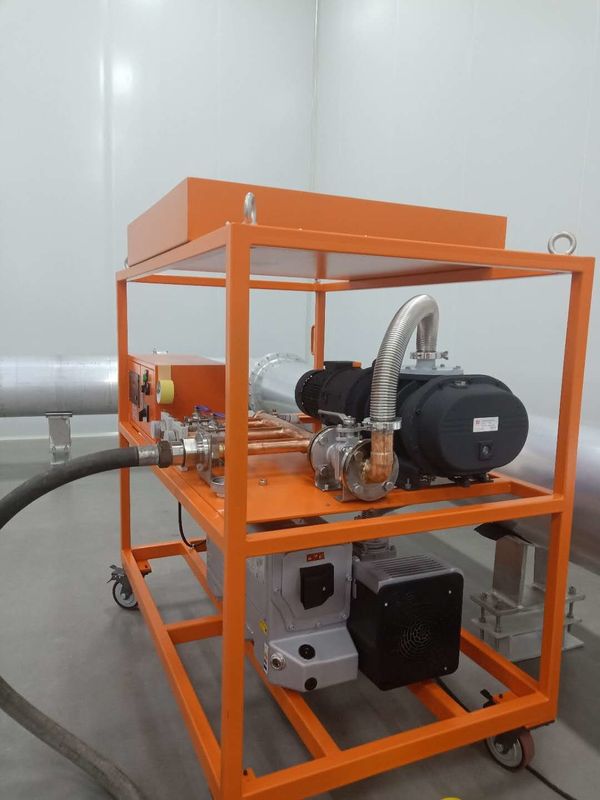

Large Image : Large vacuum units, dn20,500m3/h ,Roots pump,front-end pump

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-500/100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$15000-$18000
Packaging Details:	Wooden Box
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Features:	High Vacuum Degree, Compact Design	Inlet Port Size:	DN20
Frequency:	50Hz	Outlet Port Size:	DN20
Power Source:	Electric	Weight:	800
Dimensions:	600mm X 500mm X 800mm	Ultimate Vacuum:	0.0067mbar
Voltage:	380V	Application:	Vacuuming SF6 Gas In High Voltage Electrical Equipment
Highlight:	DN40 sf6 gas management , sf6 gas management Unit , DN40 dilo sf6 gas cart

Vacuum Unit, Ultimate vacuum degree, KSCZ-500/100

Designed for industrial vacuum applications, the KSCZ-500/100 system integrates a 500 m³/h Roots pump and 100 m³/h front-end pump, featuring anti-backflow oil protection to prevent contamination. With two M27 valve ports for multi-channel connectivity, it achieves an ultimate vacuum of 6×10⁻² Pa. Operated via 380V AC 50Hz power, the unit includes two 10m DN20 pipelines (M27 threads) as standard. Customers can choose vacuum pumps from premium brands like Leybold/Busch or cost-effective Chinese models, with customizable pipeline quantity and length to meet project requirements.

Technical Parameter Table

Parameter	Description
Model	KSCZ-500/100
Pump Configuration	500 m³/h Roots pump + 100 m³/h front-end pump
Anti-Backflow Protection	Oil-based design for contamination prevention
Valve Ports	2× M27 threaded ports for multi-channel connection
Ultimate Vacuum	6×10⁻² Pa
Power Supply	380V AC, 50Hz
Standard Accessories	2×10m DN20 pipelines (M27 threads)
Pump Brand Options	Leybold, Busch, or Made-in-China models
Pipeline Customization	Adjustable quantity and length
