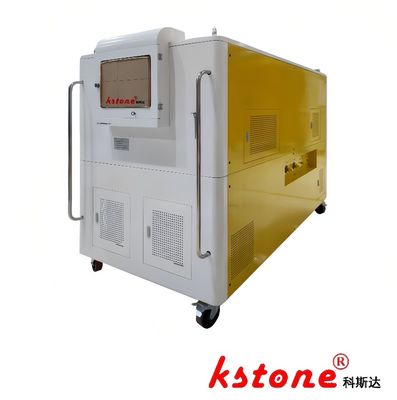

SF6 N2 CF4 CO2 Gas Mixing Unit System For Gas Recovery And Purification 220V

Large Image : SF6 N2 CF4 CO2 Gas Mixing Unit System For Gas Recovery And Purification 220V

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSLF-28/30WY20/NZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Storage Capacity:	1000L	Gas Inlet Pressure:	≤0.5Mpa
Dimensions:	L 1200mm X W 800mm X H 1500mm	Purification Process:	Adsorption And Molecular Sieve
Application:	Gas Recovery And Purification For SF6 Gas Insulated Electrical Equipment	Power Consumption:	1.5kW
Weight:	400kg	Gas Outlet Pressure:	≤0.5Mpa
Recovery Time:	≤1 Hour	Recovery Rate:	99.9%
Power Supply:	AC 220V, 50Hz	Vacuum Pumping Speed:	17m3/h
Working Environment:	Temperature: -20℃~+40℃, Humidity: ≤90%	Evacuation Pressure:	≤1mbar
Highlight:	SF6 N2 Gas Mixing Unit , N2 CF4 Gas Mixing Unit , SF6 CF4 gas mixing system

SF6/N2 Mixing, SF6 And CF4 Mixing, C4F7N And CO2 Mixing, KSLF-28/30WY20/NZ

This device is mainly used for SF6/N2 mixed gas inflation, and can also be applied to SF6 and CF4 mixting, SF6 and AIR mixting, C4F7N and CO2 mixting, etc. It is an industrialized mixing equipment, and the actual mixing speed can reach 10Nm3/h.

At present, this equipment is mainly used for environmental protection actions promoted by State Grid Corporation of China, such as mixed gas GIS and SF6/N2 mixture, with a ratio of 3:7 between SF6 and N2.

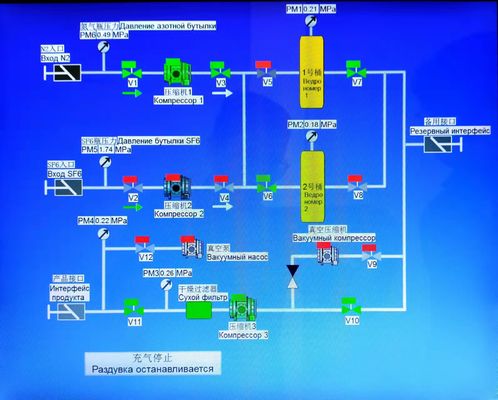

This gas mixing and charging device is composed of a vacuum pump, compressor, filtration system, and various valves, instruments, etc. It has the functions of vacuum pumping, gas mixing, and gas charging.

1. Technical Parameters of Main Components

SF6 Compressor	Form		Air-cooled Piston
	Theoretical Exhaust Volume	m³/h	14
	Maximum Discharge Pressure	MPa	2
	Allowable Discharge Pressure	MPa	1
	Minimum Allowable Suction Pressure	KPa	53
	Maximum Allowable Suction Pressure	MPa	0.5
	Maximum Discharge Temperature	℃	130
	Lubricating Oil		None
	Power	kW	2.2
	Power Supply		3Φ 380V 50Hz
	Pumping Rate	m³/h	54
	Ultimate Vacuum	Pa	≤10
Vacuum Pump	Lubricating Oil		PRO-200 Vacuum Pump Oil
	Power	kW	2.2
	Power Supply		3Φ 380V 50Hz
N2 Compressor	Theoretical Exhaust Volume	m³/h	14
	Maximum Discharge Pressure	MPa	2
	Allowable Discharge Pressure	MPa	1
	Minimum Allowable Suction Pressure	KPa	53
	Maximum Allowable Suction Pressure	MPa	0.5
	Maximum Discharge Temperature	℃	130
	Lubricating Oil		NONE
	Power	kW	2.2
	Power Supply		3Φ 380V 50Hz
Mixed Gas Charging Compressor	Form		Air-cooled Piston
	Theoretical Exhaust Volume	m³/h	30
	Maximum Discharge Pressure	MPa	5
	Allowable Discharge Pressure	MPa	1
	Minimum Allowable Suction Pressure	KPa	53
	Maximum Allowable Suction Pressure	MPa	0.5
	Maximum Discharge Temperature	℃	130
	Lubricating Oil		NONE
	Power	kW	11
