High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance

  • High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance
  • High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-110Y/160-1200WZ
Document KSLH-110Y-160-1200WZ.pdf
Minimum Order Quantity 1
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 10 per year
Product Details
Features High Efficiency, Low Noise, Easy Operation Negative-Pressure Compressor 160m³/h, 0.1MPa Suction Pressure
Pipeline Vacuum Pump 63m³/h, ≤5Pa Ultimate Vacuum Application Gas Recovery
Filtration Module 0.1μm Particle Filter, 3ppm Moisture Trap Main Compressor 110m³/h, Oil-free
Highlight

r134A SF6 Recovery System

,

1200L SF6 Recovery System

,

1200L portable r134a recovery machine
Leave a Message
Product Description
High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance
KSLH-110Y/160-1200WZ
Industry Standard Leadership

As the principal drafter of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions define industrial benchmarks. SF6 recovery equipment is custom-engineered with configurable features: negative-pressure recycling, oil-free compressionOil (optional), variable storage capacities, and fully automated operations.

System Overview

High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance 0

High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance 1

High-Capacity SF6 Recovery Unit 110m³/h Oil-Free Compressor with 1200L Storage for GIS/GIL Maintenance 2

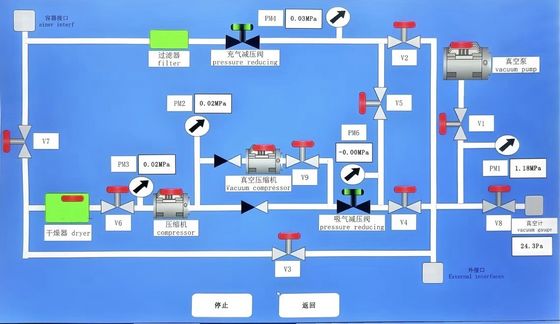

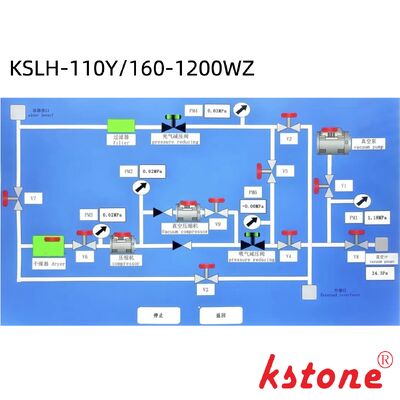

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h oil-free main compressor, 160m³/h negative-pressure compressor (0.1MPa suction), 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and 1200L 304 stainless steel horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table
Component Specification
Main Compressor 110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor 160m³/h, 0.1MPa suction pressure
Pipeline Vacuum Pump 63m³/h, ≤5Pa ultimate vacuum
Liquid Storage Tank 1200L horizontal, 304 stainless steel(optional),
Control System PLC-based with HMI touchscreen
Filtration Module 0.1μm particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, 45kW total power
Custom Configuration Options
  • Compression Types: Oil-free / lubricated compressor selections
  • Storage Capacity: 500L–2000L tank volume variants
  • Functional Add-ons: Adsorption dehydration , gas purity analyzer
  • Mobility Solutions: Trailer-mounted
Compliance & Certifications
  • Compliant with DL/T1353-2024 and IEC 62271-403 standards
  • Rated for GIS/GIL systems up to 1100kV voltage class
  • ISO 14001:2015 environmental management certified
Why Choose Kstone?
  1. Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  2. One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  3. Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  4. Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  5. Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
