GIS, GIL, Air Cooled, SF6 Recovery System Unit High Capacity

  • GIS, GIL, Air Cooled, SF6 Recovery System Unit High Capacity
  • GIS, GIL, Air Cooled, SF6 Recovery System Unit High Capacity
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-110Y/160-1200WZ
Document KSLH-110Y-160-1200WZ.pdf
Minimum Order Quantity 1
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 10 per year
Product Details
Compressor Oil-free Cooling System Air-cooled
Model Recovery Negative-Pressure Compressor 160m³/h, Ultimate Vacuum ≤ 1000Pa
Pipeline Vacuum Pump 63m³/h, Ultimate Vacuum ≤5Pa Liquid Storage Tank 1200L Horizontal, 304 Stainless Steel Or Galvanized Carbon Steel
Highlight

GIS SF6 Recovery System

,

Air Cooled SF6 Recovery System

,

SF6 refrigerant gas recovery unit
Leave a Message
Product Description

GIS, GIL, Air Cooled, SF6 Recovery System Unit High Capacity

High-Capacity SF6 Recovery System KSLH-110Y-160-1200WZ for GIS/GIL Applications

Industry Standard Leadership

As the lead developer of China's DL/T1353-2024 technical specification for SF6 treatment systems, our solutions set international industry standards. The SF6 recovery equipment is custom-engineered with configurable features, including negative-pressure recycling, oil-free/lubricated compression choices, Optional storage capacity (500L–2000L), and fully automated PLC control.

System Overview

The KSLH-110Y/160-1200WZ high-capacity automated system is optimized for 550kV insulation pot withstand voltage testing in power grid applications. It integrates an 110m³/h oil-free air-cooled piston main compressor, a 160m³/h negative-pressure compressor (0.5MPa suction capacity), a 63m³/h pipeline vacuum pump (≤5Pa ultimate vacuum), and a Large external storage tank (capacity optional, materials optional) horizontal storage tank for efficient high-voltage SF6 management.

Technical Specifications Table
Component Specification
Main Compressor 110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor 160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump 63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank 500-2000L horizontal, materials optional

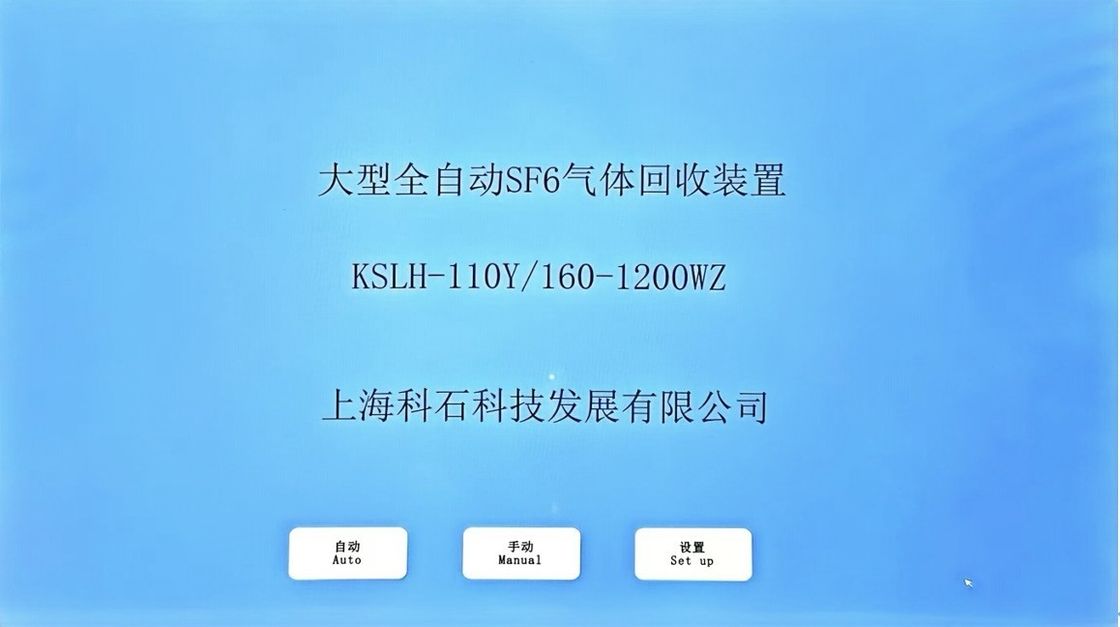

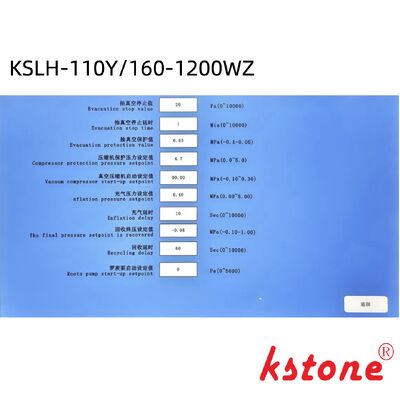

Control System PLC-based with HMI touchscreen interface
Filtration Module 0.1μm particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, 45kW total power capacity
Custom Configuration Options
Compression Systems
  • Oil-free Compressors: For contamination-free SF6 recovery
  • Lubricated Compressors: Suited for high-pressure applications
Storage Solutions
  • 500L to 2000L tank, materials optional
Functional Add-ons
  • Filtration dehydration units for efficient moisture removal
  • Gas purity analyzers (0–99.99% )
Mobility Options
  • Trailer-mounted designs for on-site operations
  • fixed installations
Compliance & Certifications
  • Compliant with DL/T1353-2024 (China) and IEC 62271-403 (international standards)
  • Rated for GIS/GIL systems up to 1100kV voltage class
  • ISO 14001:2015 certified environmental management system
  • CE marked for compliance with European market requirements
  • The following figure shows the SF6 fully automatic recovery device in the Siemens high-voltage workshop in Shanghai, provided by Shanghai KstoneGIS, GIL, Air Cooled, SF6 Recovery System Unit High Capacity 0


Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
