Leybold, Dilo ,SF6 Vacuum Pump,300L/S,380v 50hz

I'm Online Chat Now

Leybold, Dilo ,SF6 Vacuum Pump,300L/S,380v 50hz

Leybold, Dilo ,SF6 Vacuum Pump,300L/S,380v 50hz
Leybold, Dilo ,SF6 Vacuum Pump,300L/S,380v 50hz

Large Image :  Leybold, Dilo ,SF6 Vacuum Pump,300L/S,380v 50hz

Product Details:
Place of Origin: Shanghai
Brand Name: KSTONE
Certification: ISO9000
Model Number: KSCZ-1080/300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $20000-$40000
Packaging Details: Wooden Box
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 10 per year
Detailed Product Description
Voltage: 380V Model: Vacuum Pump
Max Vacuum: 6*10-2pa Inlet Diameter: 20
Dimensions: 500mm X 300mm X 400mm Max Flow Rate: 1080m3/h
Weight: 300kg
Highlight:

Adjustable SF6 Vacuum Pump

,

Leybold SF6 Vacuum Pump

,

25mm dilo sf6 cart

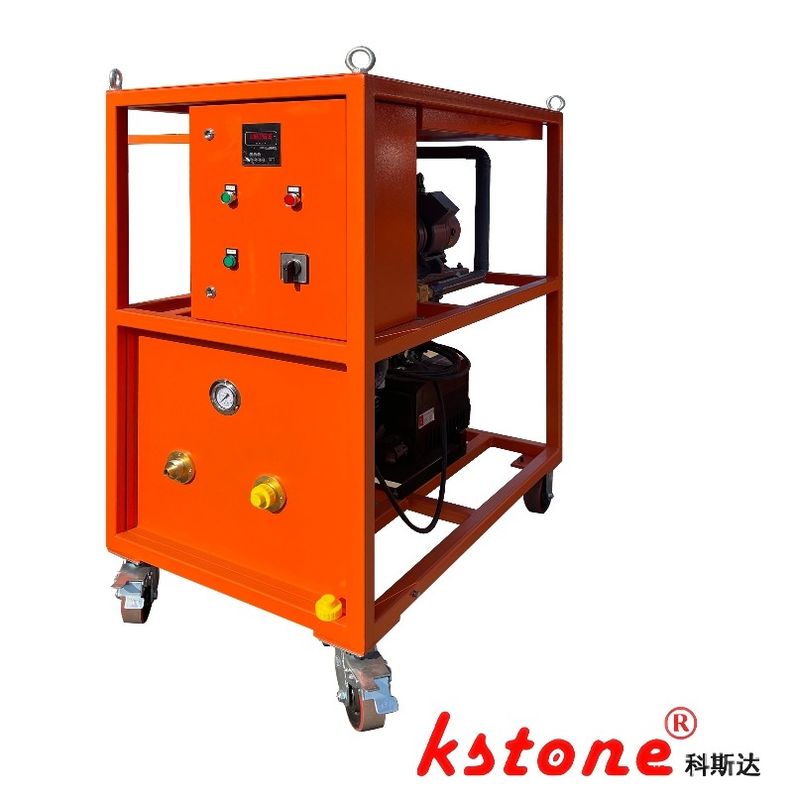

High-Performance Large Vacuum Unit - Model KSCZ-1080/300

Engineered for industrial applications demanding deep vacuum environments, the KSCZ-1080/300 vacuum system combines a 1080 m³/h Roots pump with a 300 m³/h front-stage pump. Equipped with anti-backflow oil safeguards to prevent contamination, the unit features dual M27 valve ports for multi-channel pumping, achieving an ultimate vacuum of 6×10⁻² Pa. Operating on a 380V AC 50Hz power supply, it includes three 10m DN20 pipelines (M36 threads) as standard. Customers can select pumps from premium brands like Leybold or Busch, or opt for domestic Chinese models. Both pipeline quantity and length are fully customizable to meet project-specific requirements.

Technical Specifications Table

Parameter Description
Model KSCZ-1080/300
Pump System 1080 m³/h Roots pump + 300 m³/h front-stage pump
Anti-Backflow Protection Oil-based design for contamination prevention
Valve Connections 2× M27 threaded ports for multi-channel integration
Ultimate Vacuum 6×10⁻² Pa
Power Supply 380V AC, 50Hz
Standard Accessories 3×10m DN20 pipelines (M36 threads)
Pump Brand Options Leybold, Busch, or Made-in-China models
Pipeline Customization Adjustable quantity and length
