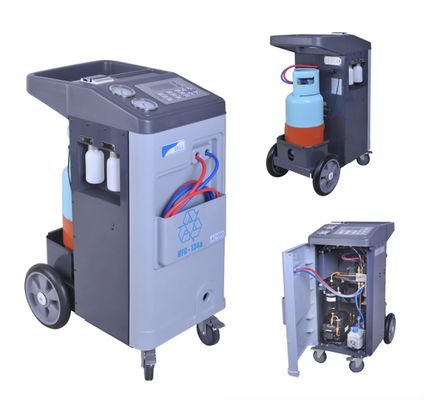

14L Automatic Refrigerant Recovery Machine 134a/12 for Auto Repair Shops

Large Image : 14L Automatic Refrigerant Recovery Machine 134a/12 for Auto Repair Shops

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	AC1000

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Operating Temperature:	32°F - 122°F	Certifications:	CE, UL
Recovery Rate:	99%	Capacity:	100 Lbs
Model:	RCM-100	Frequency:	50/60Hz
Dimensions:	24" X 18" X 12	Weight:	50 Lbs
Highlight:	14L Refrigerant Recycling Machine , 134a Refrigerant Recycling Machine , 14L ac recovery machine 134a

AC1000 Automatic Refrigerant Recovery Machine - 134a/12 Compatible, 14L Tank, 2.5M Hose, for Auto Repair Shops

Designed according to the standard service process of automotive air conditioning, the AC1000 features complete functions, intuitive operation, and easy maintenance. It meets the daily maintenance needs of automotive air conditioning systems, making it suitable for automotive quick repair shops and small-to-medium vehicle maintenance points.

Features

Full solenoid valve system (no manual valve operation)
Built-in database for all vehicle models
Self-service electronic scale calibration function
Self-service mixed gas discharge
Self-help information prompt function
Fully automatic process
Direct pressure adjustment for the system

Functions

Refrigerant recovery
Circulating regeneration
Vacuum pumping
Refrigeration oil replenishment
Refrigerant charging
System detection
Mixed gas discharge from refrigerant
Fully automatic process
Direct pressure adjustment for air conditioning

Technical Parameters Table

Parameter	Description
Refrigerant Types	R134a, R12
Display Screen	19264 dot matrix
Operating Temperature	5-50℃
Maximum Pressure	18 bar
Voltage	220V/50Hz
Weight	80 Kg
Packaging Dimensions	50×70×110 cm
Pressure Gauge	80 mm
Tank Pressure Gauge	40 mm
Service Hose	2.5M/SAE-J2196
Compressor	1/3 HP
Fan & Condensation System	Yes
Dry Bottle Capacity	80 Kg
Vacuum Pump	60 L/Min
Working Tank Volume	14.3 L
Oil Injection Bottle	250 ml
Electronic Scale	1 g/30 Kg accuracy
Printer	Optional
Heating Belt	Optional
SD Card	Available
Hose Length	2.5M
Working Tank Volume	14L
Electronic Scale Accuracy	±1 g
Vacuum Pump	120L/min
Compressor Power	3/8 HP
Power Supply	220V, 50Hz
Database	Yes
Automatic Recovery	Yes
Vacuum Setting	Yes (memorable)
Oil Drainage	Automatic
Oil Injection	Manual/Automatic
Automatic Charging	Yes
Pipeline Compensation	Yes
Anti-Liquid Hammer Design	Yes
Direct Pressure Adjustment	Yes
