Odm Sf6 Management Inflation Kit, Pressure Gauge, 3-393-R002, Dilo [KSCQ-5G]

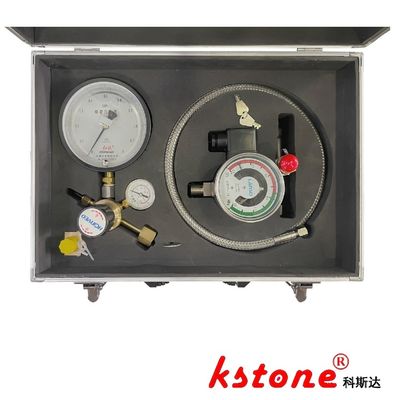

Large Image : Odm Sf6 Management Inflation Kit, Pressure Gauge, 3-393-R002, Dilo [KSCQ-5G]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCQ-5G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$800-$1000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-30 work days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Highlight:

ODM sf6 management

sf6 management Valve

ODM sf6 pressure gauge

High-Precision SF6 Inflation Kit KSCQ-5G – Pressure Gauge

is similar to 3-393-R002(DILO)

Operational Overview

This precision inflation set facilitates controlled SF6 gas transfer from cylinders to GIS systems via a pressure regulator, inflation hose, and density relay. Comprising a high-precision pressure gauge, safety valve (5.5bar/9.8bar), and industrial-grade components, it ensures accurate pressure management and system protection during gas charging operations.

System Configuration

Component	Specification
Pressure Regulator	1 unit (adjustable range) made in china
High-Precision Gauge	0.25-class accuracy, 0-10 bar range
Inflatable connector	DN8 Self sealing valve (dilo or made in china)
Inflatable connector	DN20 Self sealing valve (dilo or made in china)
DN8 Inflation Hose	5m length, reinforced rubber (German)
Portable Protection Case	Impact-resistant, foam-lined interior (DILO :3-393-R002)

Technical Specifications

Parameter	Standard Configuration
Model	KSCQ-5G
Application	SF6 gas charging for GIS systems
Pressure Gauge Accuracy	0.6 class (±0.025bar @ full scale) made in china
Gas cylinder connection	G5/8" (china )or Other national standards
Hose Working Pressure	Up to 200bar
Temperature Range	-20°C to +60°C
Case Dimensions	600×400×250mm (L×W×H)

Functional Features

Dual Safety Mechanism: Pressure regulator + safety valve for overpressure protection
Precision Monitoring: 0.25-class gauge enables accurate density control
Universal Compatibility: Standard fittings for most SF6 cylinder connections

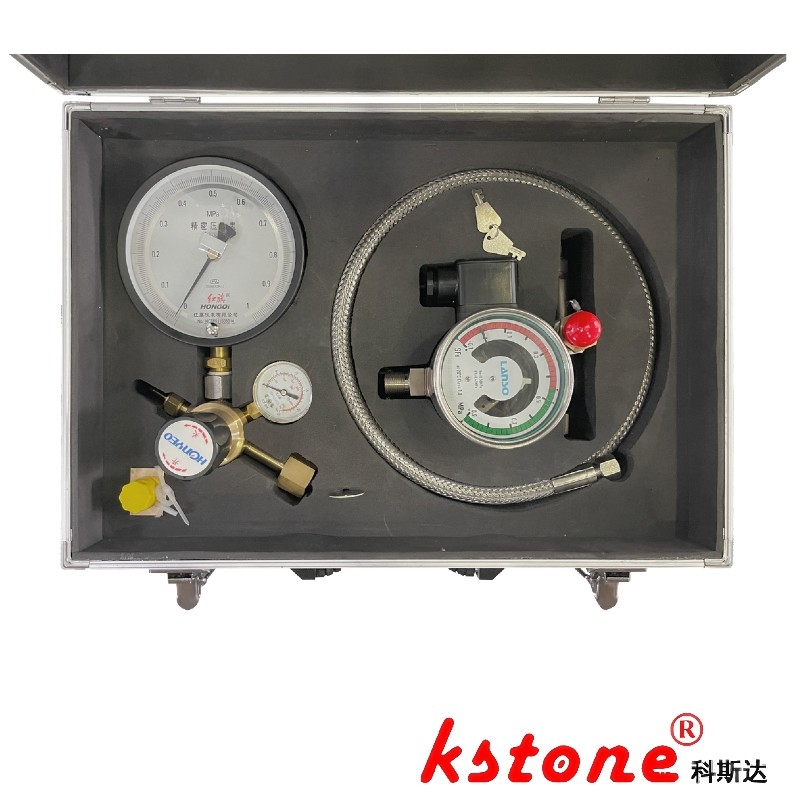

Reference Picture
